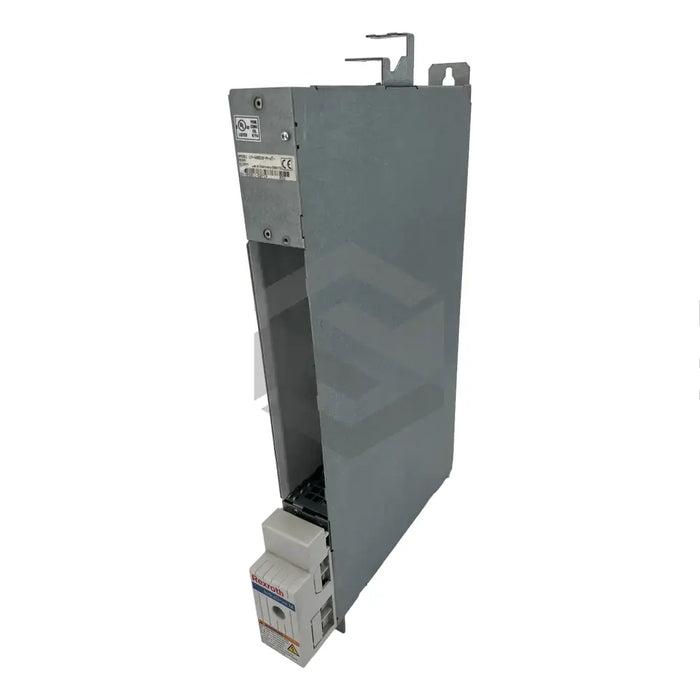

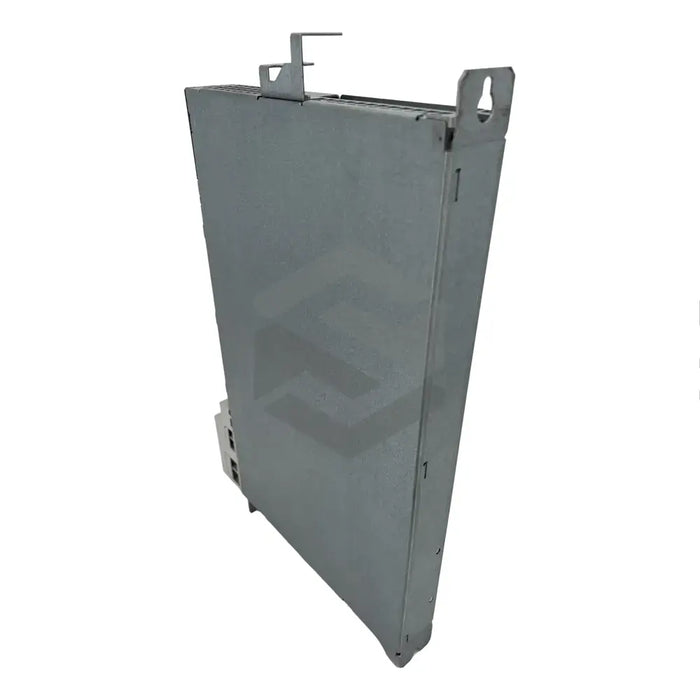

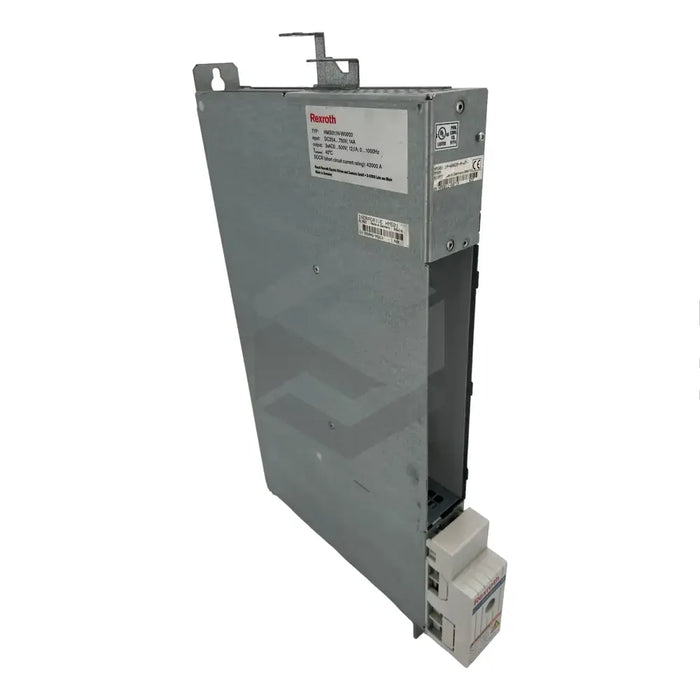

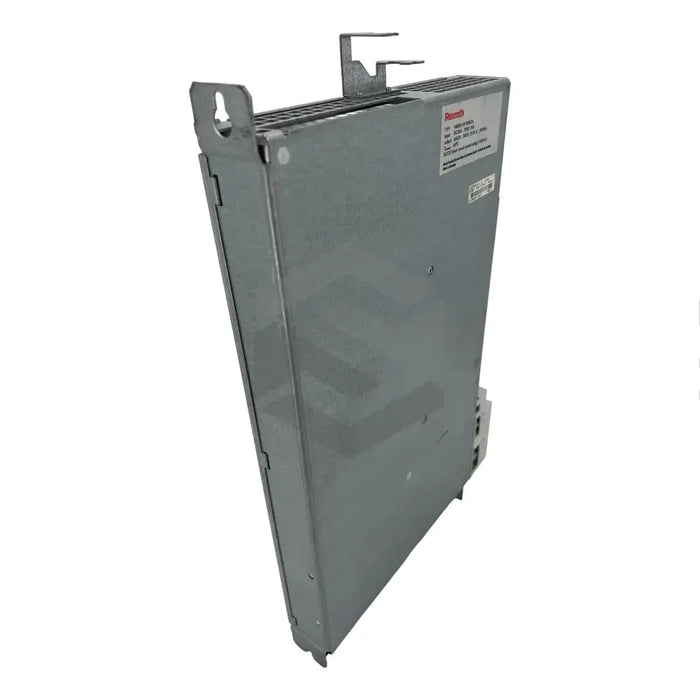

product Main (Front Left) image of HMS01.1N-W0020-A-07-NNNN

HMS01.1N-W0020-A-07-NNNN

by Bosch Rexroth Indramat
$936.00 - $936.00
$936.00
$936.00 - $936.00
$936.00
In Stock, Ships Today
The HMS01.1N-W0020-A-07-NNNN power section from Bosch Rexroth, with a line code of 1 and a design code of 1, is a key component in a drive controller. This device, fitted with motor power connection terminals A1, A2, and A3, and connectors X5 and X6, can manage up to 20A of current. It operates without an external power supply, using an internal blower for cooling purposes. The gadget is equipped with a copper field wiring material and can handle asynchronous, spindle, torque, and synchronous linear motors. The product's connections are to be made exclusively using IndraDyn and IndraDrive cables. Capable of operating at a maximum ambient temperature of 40°C, the power section also carries CSA certification and UL listing, meeting safety standards. It should not be used in low voltage network supplying public residential areas.
30 Day Warranty
Technical Specifications
  • Product : HMS01.1N-W0020-A-07-NNNN

  • Manufacturer :     Bosch Rexroth

  • Product type :     Drive controller power section

  • Line code :     1

  • Design code :     1

  • Power connection terminals :     A1, A2, A3

  • Max current rating :     20A

  • Connectors :     X5, X6

  • Cooling method :     Internal air circulation via integrated blower

  • Safety Certifications :     CSA Certified, UL Listed

  • Wiring material :     Class 1 copper

  • Compatible motors :     Asynchronous, synchronous kit spindle, synchronous torque, synchronous linear

  • Connection cable compatibility :     IndraDyn and IndraDrive

  • Rated control voltage input :     24V +/-20%

  • Max ambient temperature with rated data :     40°C

  • Max ambient temperature with derated data:     55°C

  • Output frequency range :     0 to 1,000Hz

  • Connective cable cross-sectional area :     Min 1mm2, Max 4mm2

  • Grounding terminal :     For equipment grounding conductor connection
