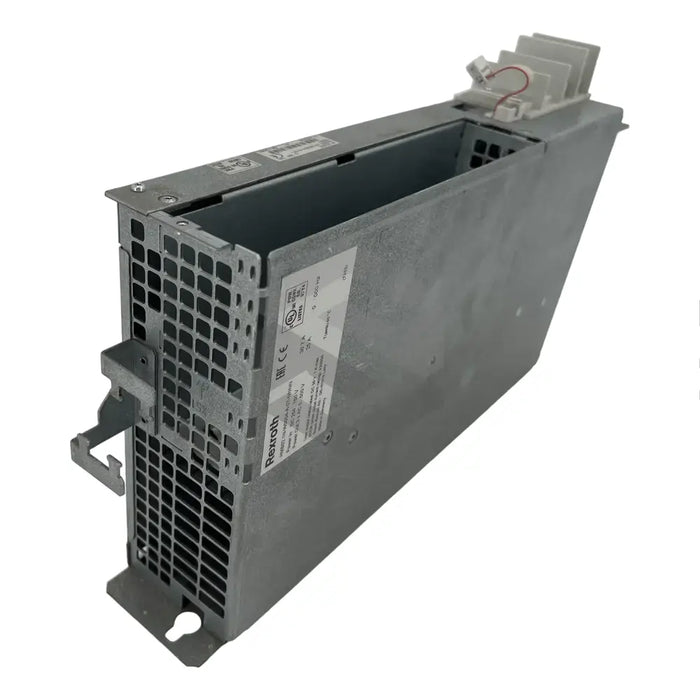

product Main (Front Left) image of HMS02.1N-W0054-A-07-NNNN

HMS02.1N-W0054-A-07-NNNN

by Bosch Rexroth Indramat
$2,700.00 - $2,700.00
$2,700.00
$2,700.00 - $2,700.00
$2,700.00
In Stock, Ships Today
The HMS02.1N-W0054-A-07-NNNN, produced by Bosch Rexroth Indramat, is a power section component of the Rexroth IndraDrive system. Recognized by UL and approved by CSA, it can be utilized for various applications worldwide. The unit operates within a temperature range of -26 to 70 degrees and a relative humidity of 5 to 95%. For long-term storage exceeding a year, it is recommended to operate the device for one hour to prevent deterioration of electrolytic capacitors. It implements an air cooling method, has a maximum current of 54A, and a nominal DC bus voltage of 700 V. Additional specifications include a short circuit current rating of 42000 A rms and insulation resistance greater than 8 Mohm. The optimal installation area should have an IP 10 protection class, an ambient temperature range of 0 to 40 degrees, and be located below an altitude of 1000 meters for best performance.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: HMS02.1N-W0054-A-07-NNNN
  • System Components: Rexroth IndraDrive system
  • Certifications: UL recognized, CSA approved
  • Transport Temperature Range: -26 to 70 degrees
  • Relative Humidity: 5 to 95%
  • Storage Condition: Operate for at least one hour if stored for more than a year
  • Cooling Method: Air cooling
  • Maximum Current: 54A
  • Protection Category: IP 20
  • Nominal DC Bus Voltage: 700 V
  • Short Circuit Current Rating: 42000 A rms
  • Rated Input Voltage: DC 254 … 760 V
  • Rated Input Current: 30.7 A
  • Output Current: 25.0 A
  • Weight: 5.0 kg
  • Dimensions: 352 x 205 x 75 mm
  • Insulation Resistance: >8 Mohm
  • Mounting Orientation: Vertical in IP 10 control cabinet
  • Ambient Operating Temperature Range: 0 to 40 degrees
  • Maximum Installation Altitude: 1000 meters
  • Clearance: 80 mm above and 100 mm below
  • Volumetric Capacity of Forced Cooling Air: 37.0 m3/h
  • Switching Frequencies: 4 to 16 kHz.
