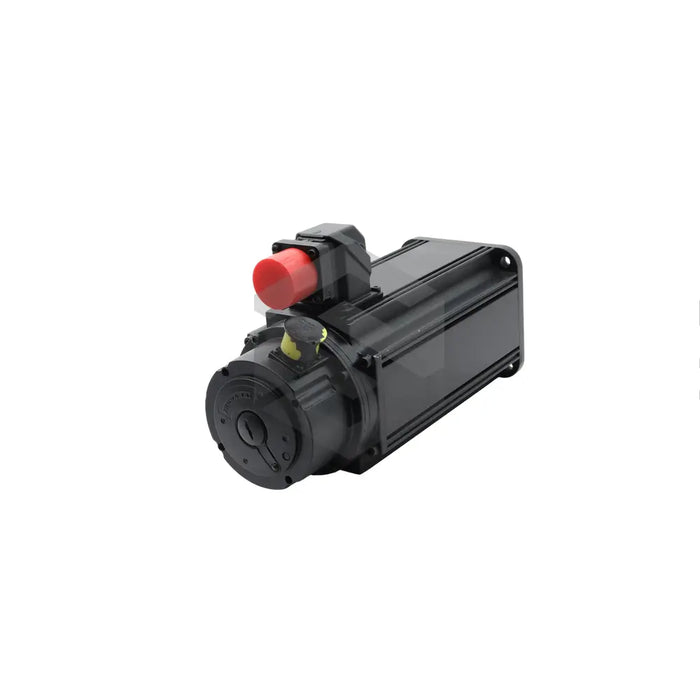

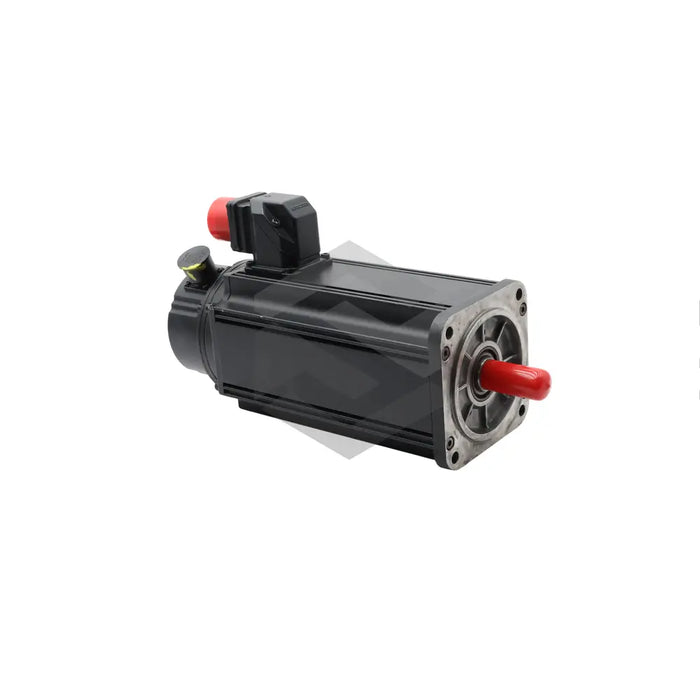

series image of MDD071C-N-040-N2T-095GA2

MDD071C-N-040-N2T-095GA2

by Bosch Rexroth Indramat
$3,536.85 - $3,536.85
$3,536.85
$3,536.85 - $3,536.85
$3,536.85
In Stock, Ships 3 - 5 Days
The MDD071C-N-040-N2T-095GA2 is a digital AC servomotor from Bosch Rexroth Indramat, designed to withstand radial and axial forces during operation. This device, with a length of 316mm, does not support Design B14 mounting. The MDD071C-N-040-N2T-095GA2's power cables can be crimped and soldered with metric diameters, and its feedback connection has 12 pins in a flanged socket. Featuring a floating bearing on side A, this servomotor comes with a mounting flange that adheres to DIN 42948 standards. However, connectors for power and feedback connections must be ordered separately. The device's plain, non-positive shaft-hub connections work in conjunction with feedback that identifies rotor positioning. Its type plate, which must be visibly located on the housing, details specifics such as type designation, continuous torque, protection rating, insulation class, and holding brake details. This device can be installed in any orientation and operates with a standstill mode continuous torque of 9.9Nm.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: MDD071C-N-040-N2T-095GA2
  • Mounting Design: No support for B14
  • Power Cable Handling: Crimping and soldering
  • Feedback Connection: 12 pins in the flanged socket
  • Operating Forces: Radial and Axial forces
  • Overall Length: 316mm
  • Operating Mode: Intermittent duty with S6
  • Type Plate Placement: Visible position on the housing
  • Protective Covers: Present and should be removed before mounting
  • Handling Instructions: Avoid gripping on the output shaft
  • Bearing Load Sensitivity: Heavy loads and impact can damage bearings
  • Continuous Torque: 9.9Nm (Natural convection in standstill mode)
  • Mounting Flange: Follows DIN 42948 specifications
  • Connectors: Need to be ordered separately
  • Size Code: 071
  • Type Plate Details: Includes type designation, continuous torque, protection rating, insulation class and holding brake details
  • Bearing: Floating bearing on side A
  • Installation Orientation: Any
  • Shaft-Hub Connections: Non-positive with plain shaft
  • Feedback: Detects rotor position
  • Performance at High Elevation: Lower between 1000m and 5000m
  • Shock Duration (lateral axis): 6ms maximum
