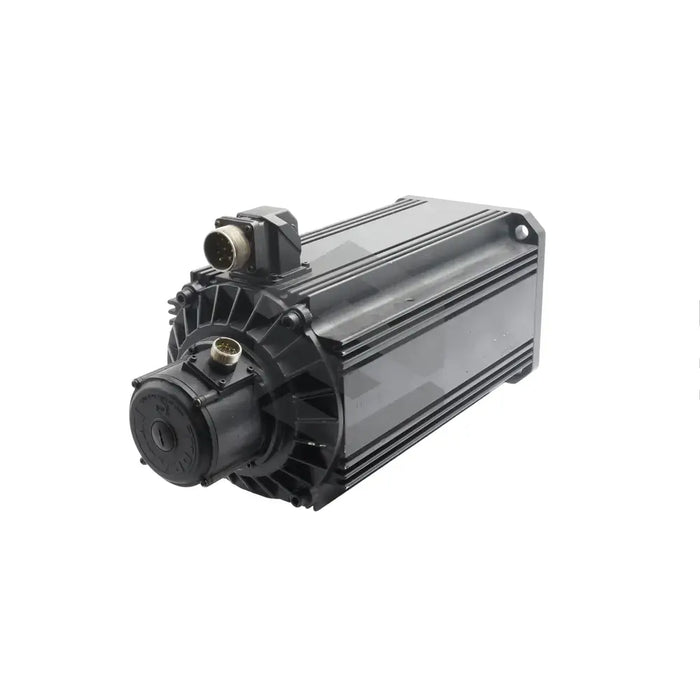

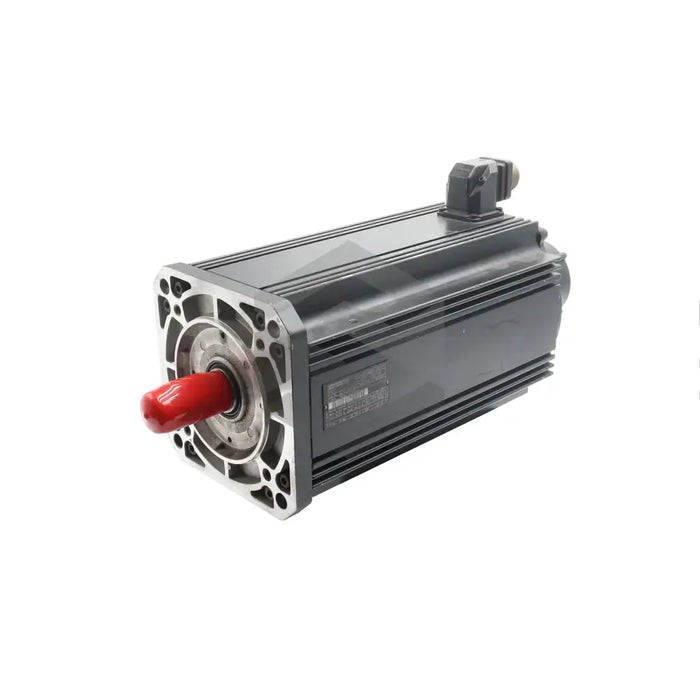

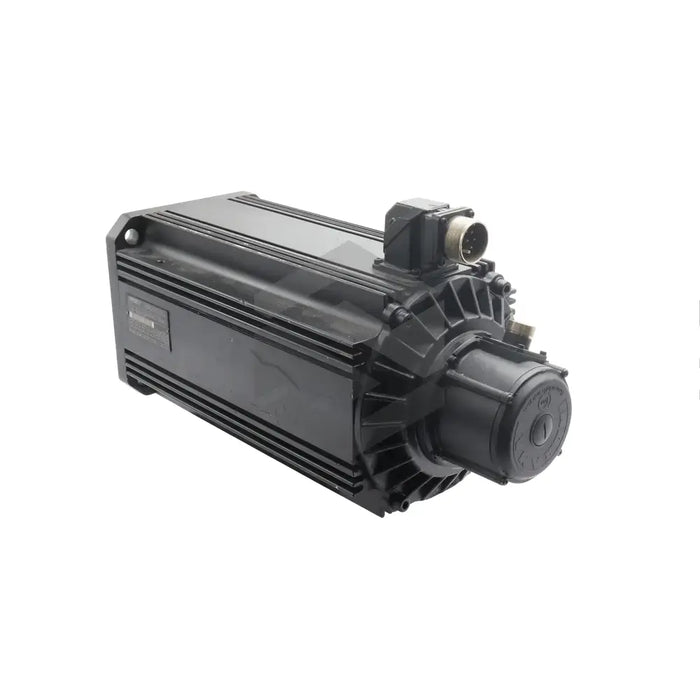

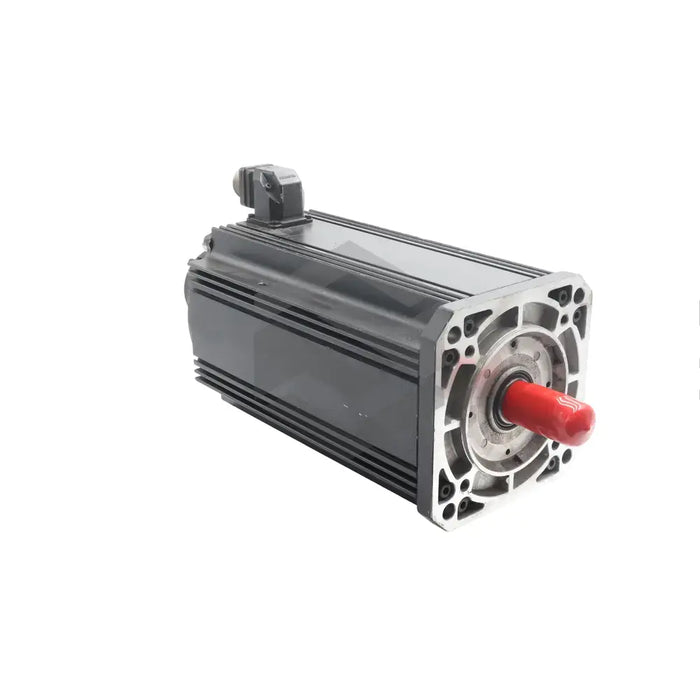

series image of MDD112C-N-030-N2L-130PB2

MDD112C-N-030-N2L-130PB2

by Bosch Rexroth Indramat
$10,222.90 - $10,222.90
$10,222.90
$10,222.90 - $10,222.90
$10,222.90
In Stock, Ships Today
The MDD112C-N-030-N2L-130PB2 is a Bosch Rexroth Indramat MDD series servo motor designed with permanent magnets for precision performance. This brushless motor is renowned for its minimal maintenance needs due to its life-time lubricated bearings. The integrated temperature sensor in the motor windings prevents potential overload damage by enabling constant monitoring. Its digital servo feedback and high motor feedback resolution allow for highly synchronous motor operation. The motor features a blocking brake rated at 40 Nm that activates with a 24 Volts DC signal. The motor's shaft has a DIN 6885-1 standard keyway for optimal torque transfer. The nominal speed reaches up to 3000 RPM, with a standard housing design suitable for natural convection. Its protection class is IP65, with an operating temperature range between 0 and 45 degrees Celsius. The motor's power source hails from the connected drive controller. Proper installation and compatibility with approved accessories are necessary for optimal performance.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: MDD series servo motor
  • Material: Permanent Magnets
  • Components: Laminated core with magnets,Rotor shaft, Encoder, Windings,Optional blocking brake
  • Motor Type: Brushless
  • Maintenance Requirement: No maintenance required due to lifetime lubricated bearings
  • Temperature Monitoring: Yes, Integrated sensor
  • Motor Operation: Highly synchronous
  • Feedback Mode: Digital Servo Feedback
  • Centering Diameter: 130 millimeters
  • Motor Blocking Brake Rating: 40 Nm
  • Brake Operation: Releases after application of a 24 Volts DC signal
  • Shaft: Includes a keyway according to DIN 6885-1
  • Nominal Speed Rating: 3000 RPM
  • Housing Design: Standard,Natural Convection
  • Recommended Ambient Temperature: 0 to 45 degrees Celsius
  • Protection Class: IP65
  • Surface Color: Black
  • Power Socket Position: Side B of the housing
  • Installation Recommendation: Should be installed by trained personnel
  • Accessory Approval: Only approved accessories should be used
  • Usage: Should only be used for specified applications.
