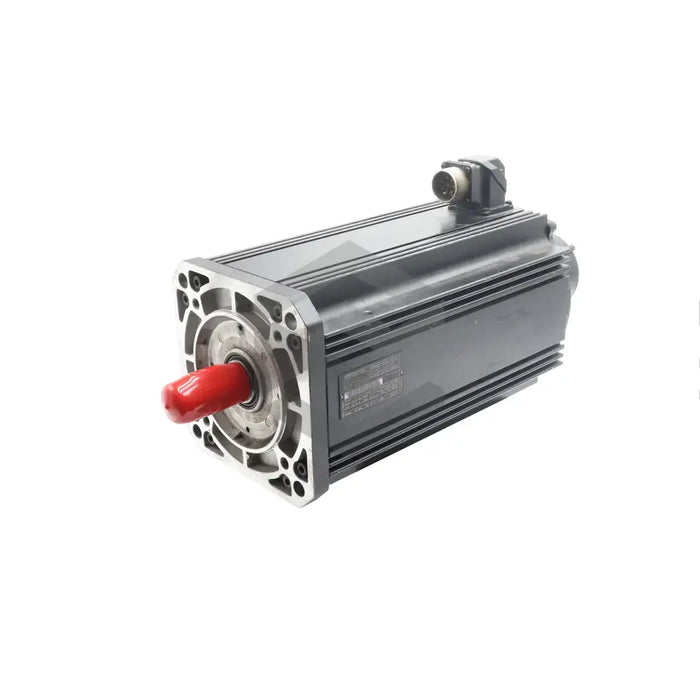

series image of MDD112C-N-030-N2M-130PA0

MDD112C-N-030-N2M-130PA0

by Bosch Rexroth Indramat
$4,364.64 - $4,364.64
$4,364.64
$4,364.64 - $4,364.64
$4,364.64
In Stock, Ships 3 - 5 Days
The MDD112C-N-030-N2M-130PA0 is a high-performance motor, crafted by Bosch Rexroth Indramat. Belonging to the MDD family of synchronous motors, it boasts a size of 112 and a length of C, and weighs 48 kg. This motor is specialized for a nominal speed of 3000 RPM and distinctively comes without a blocking brake. Key features include a state-of-the-art digital servo feedback complete with an in-built multi-turn absolute encoder. Furthermore, it has a power connector located on side A, facilitating the use of a 75-meter long power cable. Its robust structure aids in maintaining ambient temperatures from 0 to 45 degrees Celsius. With top-notch centering diameter of 130mm and a sealed output shaft with keyway for enhanced performance, this servo motor is ideal for standard applications, with dependable continuous torque and current metrics. Please note that care must be taken while installing and operating this motor to avoid damage.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Family: MDD synchronous motors
  • Product Size: 112
  • Product Length: C
  • Product Weight: 48 kilograms
  • Nominal Speed: 3000 revolutions per minute
  • Brake: Without a blocking brake
  • Servo Feedback: Digital with an integrated multi-turn absolute encoder
  • Operating Temperature: 0 to 45 degrees Celsius
  • Power Connector Location: Side A
  • Cable Length: Up to 75 meters
  • Centering Diameter: 130mm
  • Output Shaft: With keyway
  • Balance Class: N
  • Continuous Torque at Standstill: 28 Nm
  • Continuous Current at Standstill: 43.4 Amps
  • Peak Operation: 166.4 Amps
  • Constant Torque at 20 degrees Celsius: 0.65 Nm/A
  • Operating Elevation: Up to 1000 meters
  • Color: Black.
