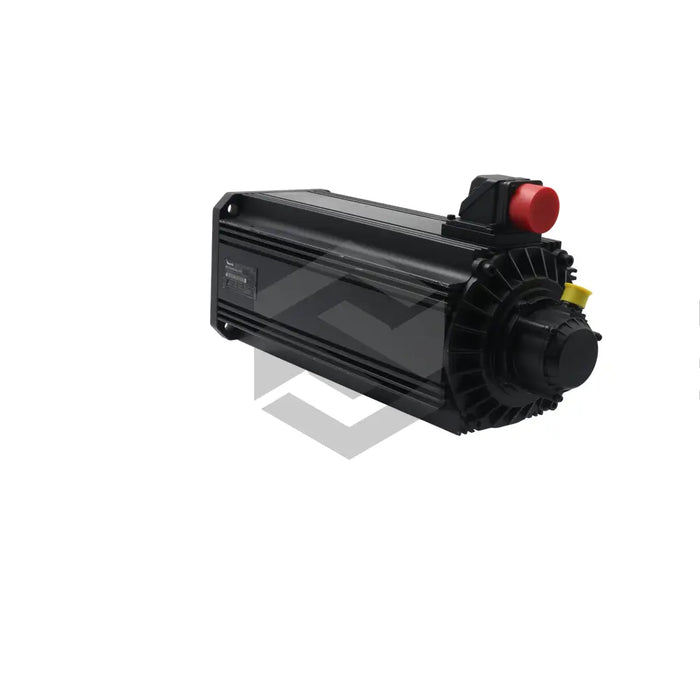

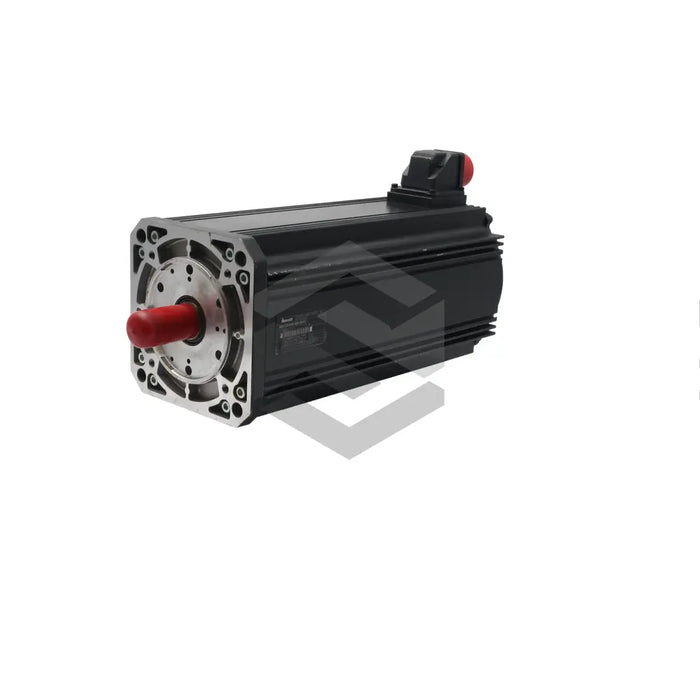

series image of MDD112D-N-030-N2M-130PA2

MDD112D-N-030-N2M-130PA2

by Bosch Rexroth Indramat
$12,840.00 - $12,840.00
$12,840.00
$12,840.00 - $12,840.00
$12,840.00
In Stock, Ships 3 - 5 Days
The Bosch Rexroth MDD112D-N-030-N2M-130PA2 is an AC synchronous servo motor that is powered and controlled through a connected drive controller. With features like an integrated multiturn encoder and digital servo feedback, it ensures a highly precise operation. To connect to the controller, two cables including a power and a feedback cable are required. The motor offers the choice of a plain or keyway shaft, with the model bearing the latter. An optional blocking brake delivers a holding torque of 40 Nm. Natural convection serves as its default cooling method, although an auxiliary blower can be installed for surface cooling. This motor has a speed rating of 3000 RPM, along with an IP65 protection rating. Its clear identification is required from a barcode sticker attached to the carton packaging, which includes necessary details like type designation, customer, and delivery slip number.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: MDD112D-N-030-N2M-130PA2
  • Product Type: AC Servo Motor
  • Motor Type: Synchronous
  • Power Supply: Drive Controller
  • Connector Requirement: Separate Order Needed
  • Feedback Type: Digital Servo
  • Shaft Type: Keyway Included
  • Optional Features: Blocking Brake
  • Holding Torque: 40 Nm
  • Voltage: 24 Volts DC
  • Current Draw: 1.35 Amps
  • Release Delay: 150 Milliseconds
  • Clamping Delay: 30 Milliseconds
  • Brake Weight: 3.5 Kilograms
  • Cooling Method: Natural Convection
  • Optional Cooling: Blower Surface Cooling
  • Speed Rating: 3000 RPM
  • Protection Rating: IP65
  • Barcode Identification: Attached on Packaging.
