P image of MHD041B-144-NP1-UN

MHD041B-144-NP1-UN

by Bosch Rexroth Indramat
$3,295.20 - $3,295.20
$3,295.20
$3,295.20 - $3,295.20
$3,295.20

In Stock, Ships 1 - 3 Days

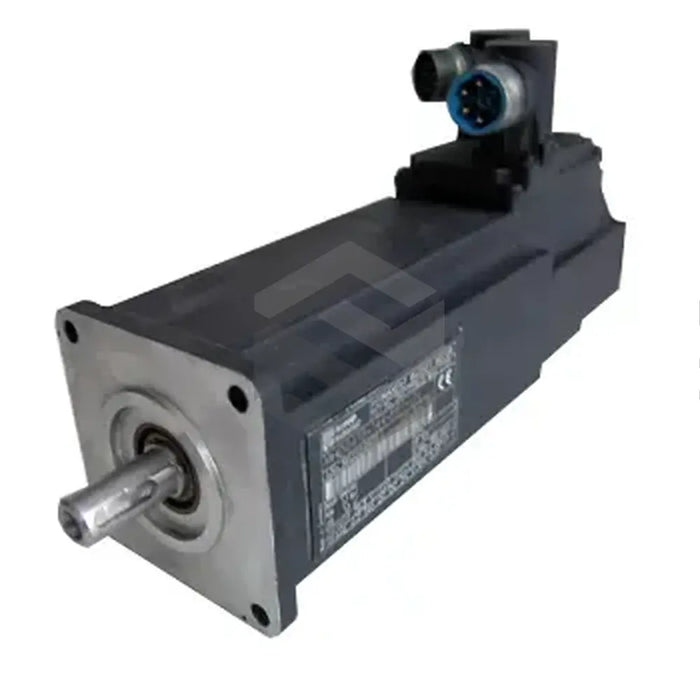

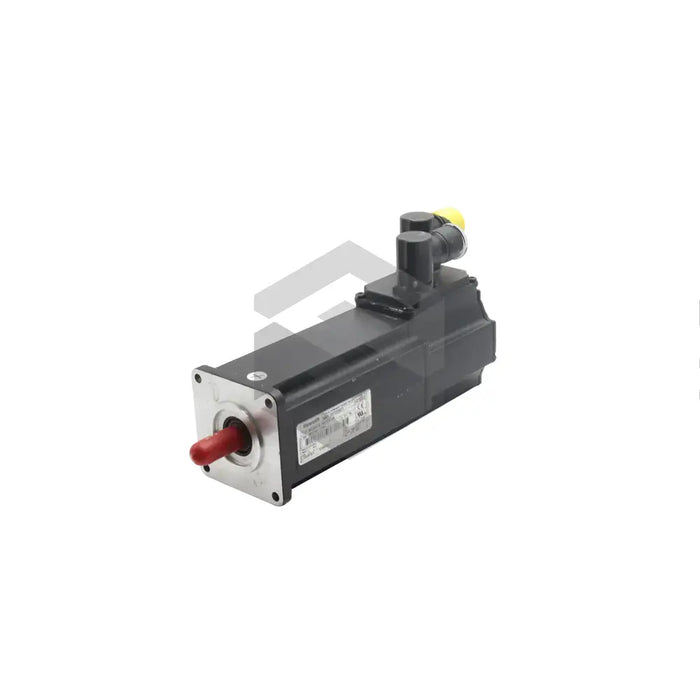

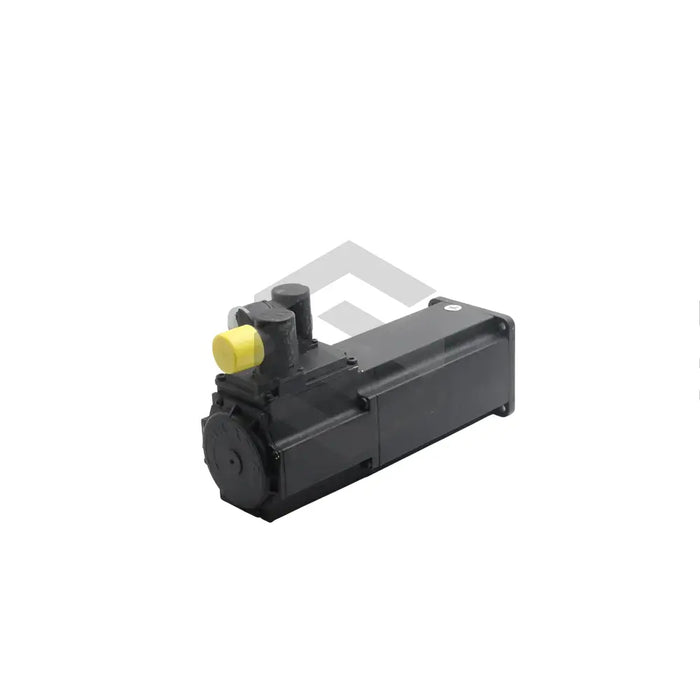

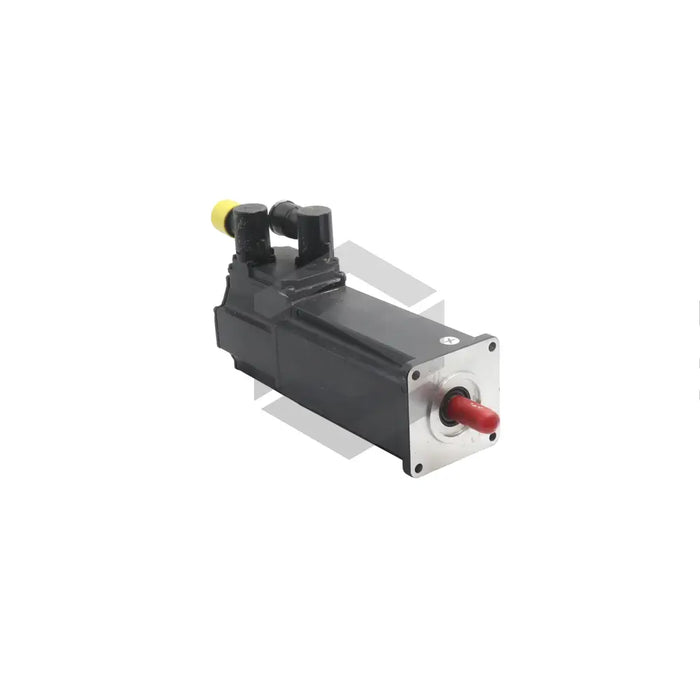

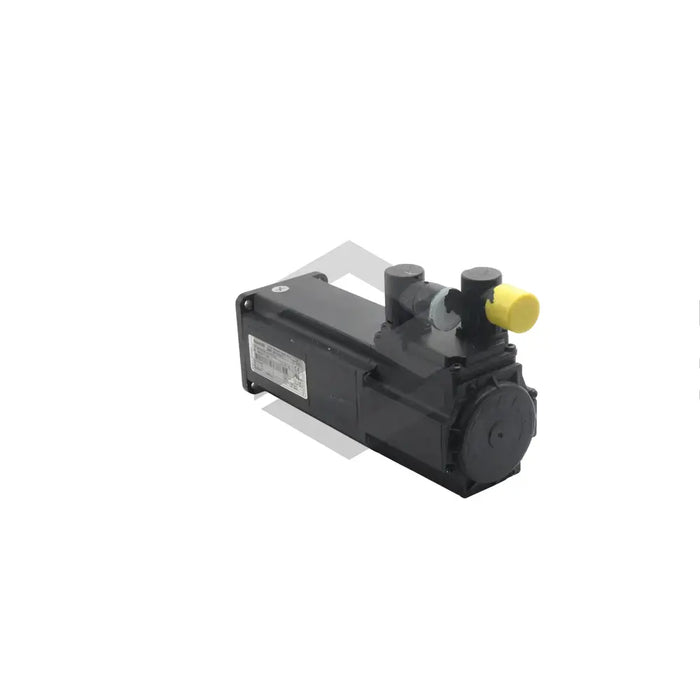

The MHD041B-144-NP1-UN is an advanced servo motor by Bosch Rexroth's Indramat division. It operates optimally within an ambient temperature of 0 to +45 degrees Celsius and in locations less than 1000 meters above sea level. Key features include an IP 65-rated housing, ensuring significant dust and water protection, and a black prime coated finish. The motor operates at a rated velocity of 6,000 rotations per minute, weighs 4.5 kg, and uses a 11.3 Amp peak current. Known for its ease of operation and minimal maintenance needs, this brushless servo motor uses lifetime lubricated bearings. It also has a thermal time constant of 4.5 minutes and delivers a theoretical maximum torque of 11.3 Nm, with recommended operation accompanied by supplier-approved devices. The motor can be stored between -20 to +80 degree Celsius and is shipped globally by Wake Industrial.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Manufacturer

Bosch Rexroth

Product Type

Servo Motor

Model

MHD041B-144-NP1-UN

Ambient Operating Temperature

0 to +45 degree Celsius

Relative Humidity

less than 90%

Allowed Elevation

1000 meters above sea level

Enclosed Housing Quality

IP 65

Housing Finish

Basic Black Prime Coat

Rated Velocity

6,000 revolutions per minute

Weight

4.5 kg

Peak Current Consumption

11.3 A

Design

Permanent Magnet Motor or Brushless Servo Motor

Bearings

Lifetime lubricated

Thermal Time Constant

4.5 minutes

Theoretical Maximum Torque

11.3 Nm

Torque (20 degree Celsius)

0.40 Nm/A

Winding Resistance

1.8 Ohm

Winding Inductance

5 mH

Storage Temperature

-20 to +80 degree Celsius

Worldwide Delivery

Yes.
