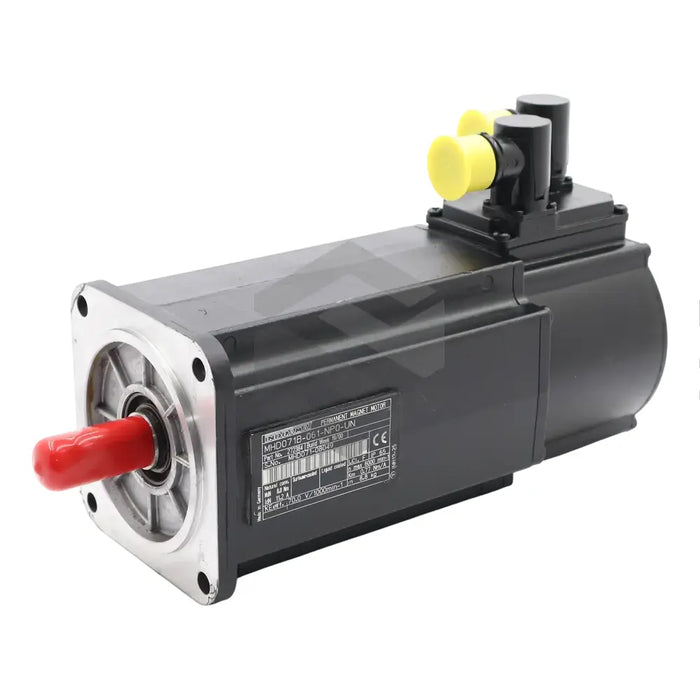

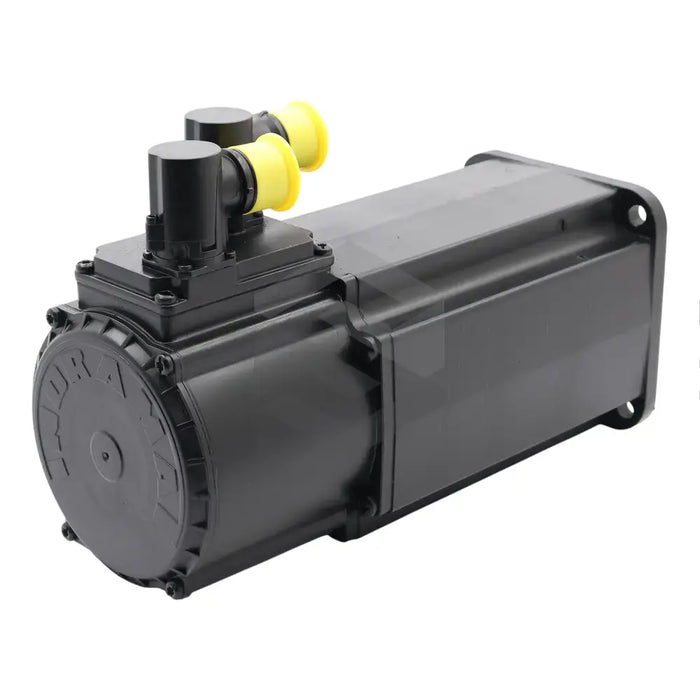

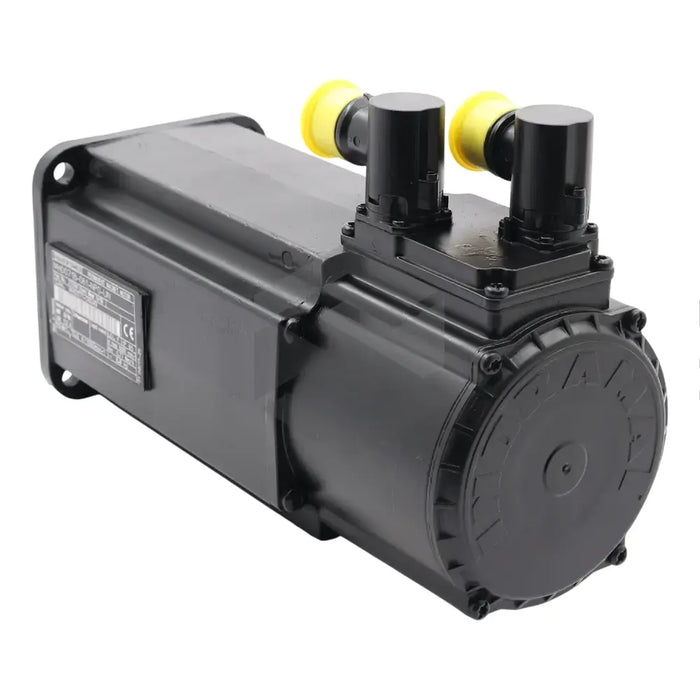

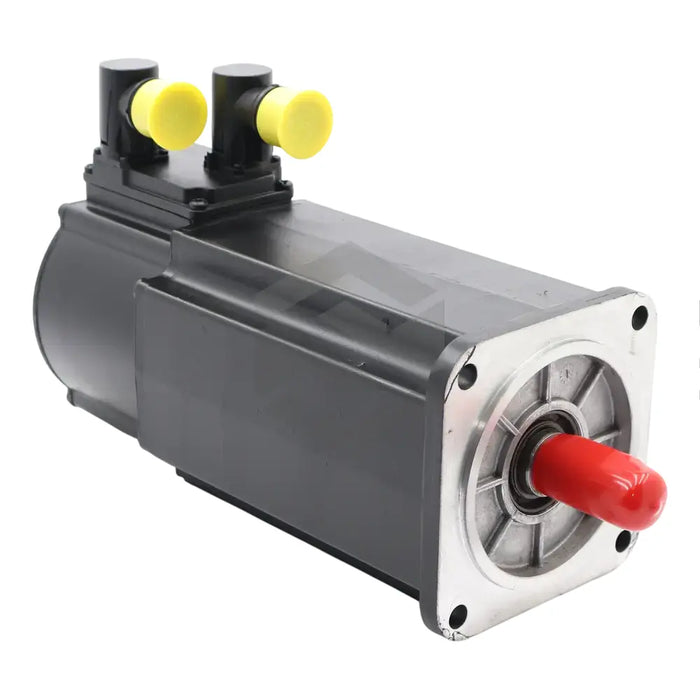

series image of MHD071B-061-NP0-UN

MHD071B-061-NP0-UN

by Bosch Rexroth Indramat
$3,279.42 - $3,279.42
$3,279.42
$3,279.42 - $3,279.42
$3,279.42
In Stock, Ships Today
The MHD071B-061-NP0-UN is a synchronous motor produced by Bosch Rexroth as part of their MHD Series that offers efficient cost-effective automation solutions for various fields. This servo motor features a frame size of 71mm, motor frame length type B, winding code 61, a standard digital servo feedback type motor encoder and a plain output shaft with sealing rings. This specific variant does not come with a holding brake and emphasizes its permanent-magnet and electronic commutation. Made with an entirely enclosed design to meet the IP 65 protection standard, the MHD071B-061-NP0-UN motor employs natural convection in its housing to keep the ambient temperature low. Paired with the inherent overload protection derived from its intrinsic temperature monitoring system, this motor ensures a long operational life and high dynamics, with a satisfactory torque-to-inertia mass ratio, self-lubricating ball bearings, and high-quality components.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Motor
  • Model: MHD071B-061-NP0-UN
  • Motor Frame Size: 71 mm
  • Motor Frame Length: Type B
  • Winding Code: 61
  • Encoder: Normal Digital Servo Feedback
  • Output Shaft: Plain Type with Sealing Rings
  • Holding Brakes: Not Included
  • Design: Completely Closed (IP65 Standard)
  • Cooling System: Natural Convection
  • Overload Protection: Yes (Inherent Temperature Monitoring)
  • Feature: High Dynamics
  • Feature: Favorable Torque to Inertia-Mass Ratio
  • Feature: Long Life Self-lubricating Ball Bearings
  • Industry Uses: Printing, Paper, Machine Tools, Packaging, Food Industry
  • Components Metallurgy: Superior Grade
