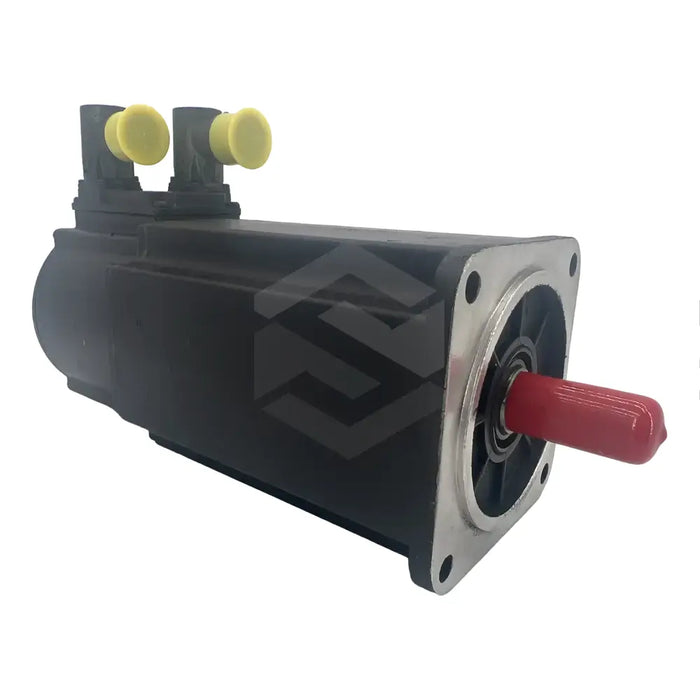

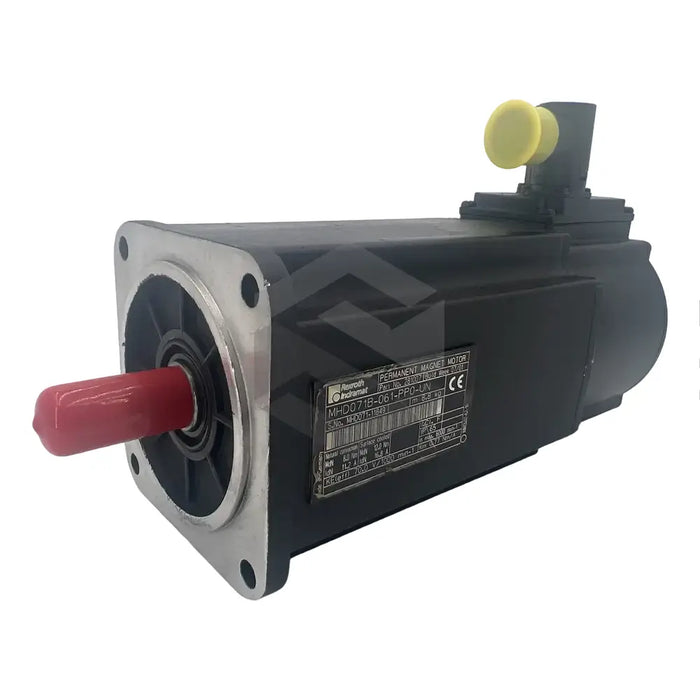

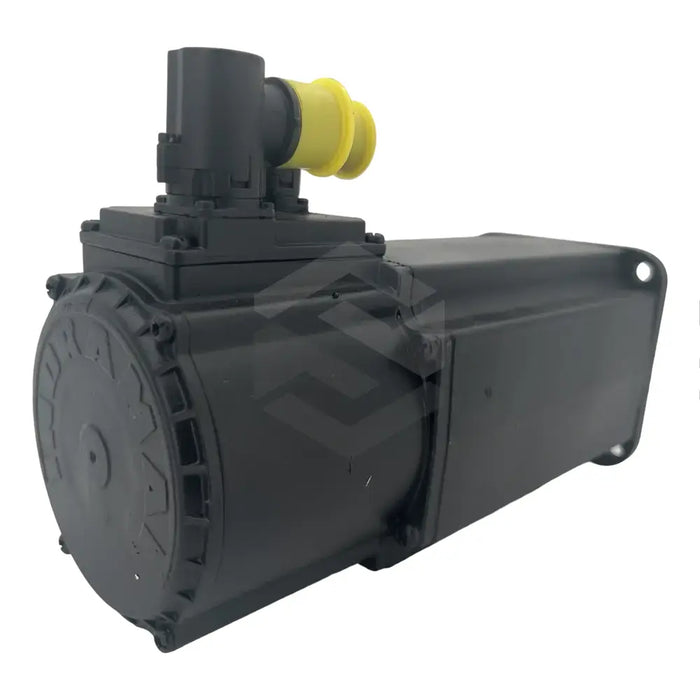

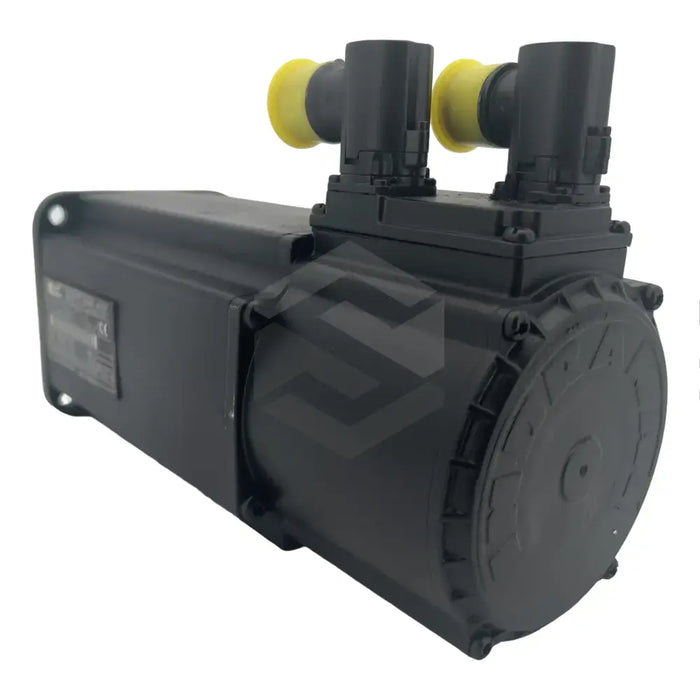

product Main (Front Left) image of MHD071B-061-PP0-UN

MHD071B-061-PP0-UN

by Bosch Rexroth Indramat
$1,422.00 - $1,422.00
$1,422.00
$1,422.00 - $1,422.00
$1,422.00
In Stock, Ships Today
The Bosch Rexroth Indramat's MHD071B-061-PP0-UN is a motor from the MHD series, made for industrial uses such as automation, handling, machine tools and printing. These motors guarantee high operational reliability, superior performance data, impressive dynamics, extensively usable peak torque, convenient cabling and simple machine attachment. MHD motors score low in inertia masses due to the use of special magnets. The MHD071B-061-PP0-UN model lacks an integrated holding brake, which can be optionally availed from Bosch. The motor showcases a 71 frame size and corresponds to B frame length and 061 winding code. Additional features include a key shaft with a sealing ring and digital servo feedback facilitated by an integrated multiturn absolute encoder. Providing a rotatable connector for power connections, the motor depends on natural convection for cooling and abides by stipulated temperature limits during operation and storage.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: MHD
  • Product Model: MHD071B-061-PP0-UN
  • Use/Application: Industrial including handling, automation, printing and machine tools
  • Motor Frame Size: 71
  • Motor Frame Length: B
  • Winding Code: 061
  • Servo Feedback: Digital with integrated multiturn absolute encoder
  • Shaft: Includes key and sealing ring
  • Holding Brake: Not integrated, available separately
  • Connector: 270-degree rotatable for power connections
  • Cooling Method: Natural convection
  • Operational Temperature Range: 0 - 40 degrees Celsius
  • Storage Temperature Range: -20 - 80 degrees Celsius
  • Defect Policy: Return to supplier for replacement
  • Software Use: No decompiling or altering of source codes allowed.
