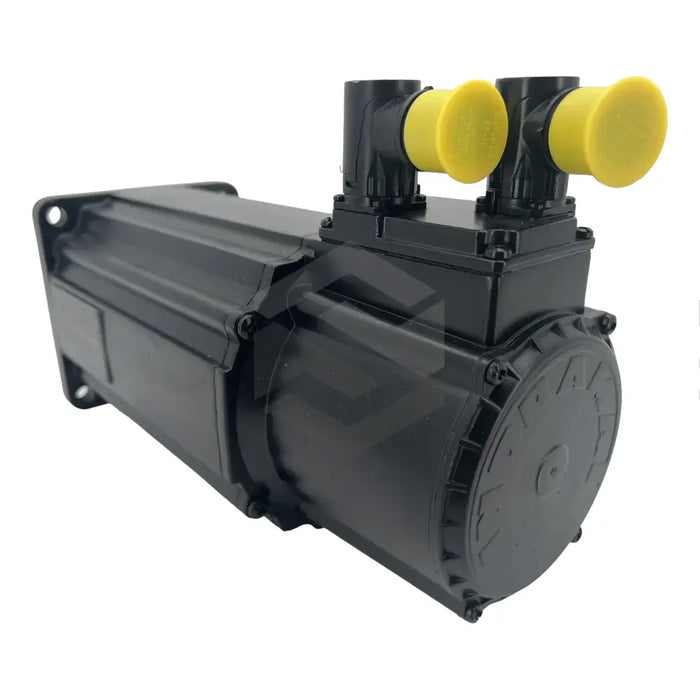

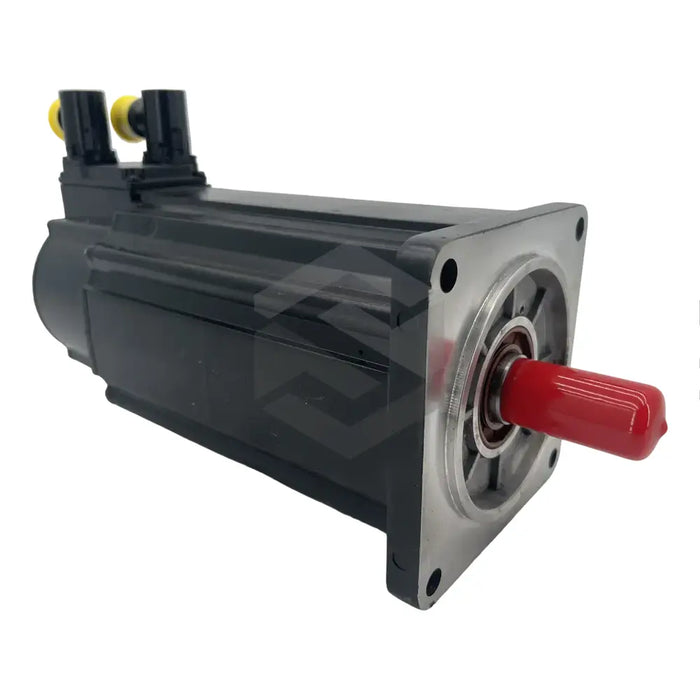

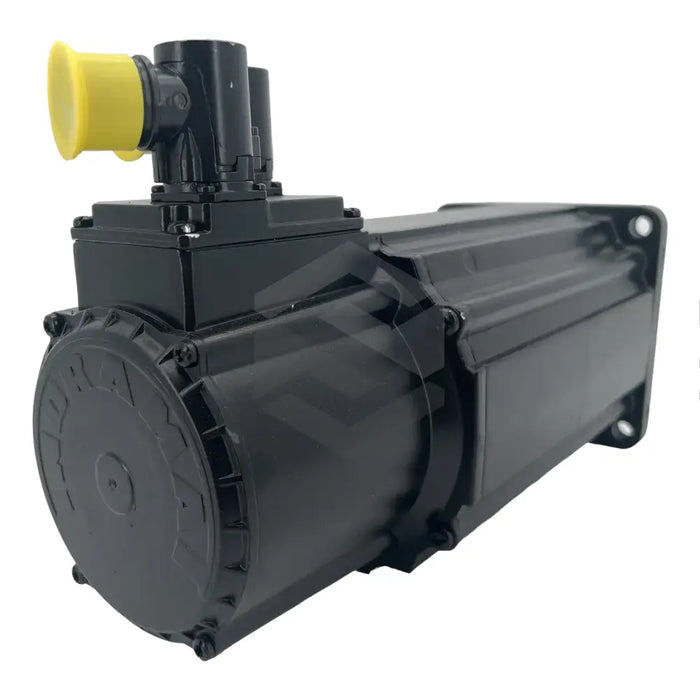

series image of MHD090B-058-PG1-UN

MHD090B-058-PG1-UN

by Bosch Rexroth Indramat
$4,097.34 - $4,097.34
$4,097.34
$4,097.34 - $4,097.34
$4,097.34
In Stock, Ships 3 - 5 Days
Bosch Rexroth's MHD090B-058-PG1-UN is an advanced, maintenance-free synchronous motor ideal for precision applications. The motor utilizes intelligent technology and leverages top-tier manufacturing techniques. The MHD090B operates at a nominal speed of 4,000 RPM and a rated frequency of 267 Hz. It features an extremely durable permanent magnet design and comes in either naturally cooled (60K and 100K, offering 4.2Nm and 8.9Nm and 2.1kW and 4.9kW respectively) or surface cooled designs, the latter boasting an air blower for optimal temperature control and a rated torque of 13.4Nm and performance of 7.0kW. The motor also includes a high-accuracy multiturn absolute encoder, capable of tracking 4096 previous revolutions. A 11.0Nm holding brake equips the driveshaft to maintain position when de-energized. At a weight of just 14 kg, this component offers significant portability and efficiency for industrial environments.
30 Day Warranty
Technical Specifications
  • Product: Bosch Rexroth MHD Synchronous Motors MHD090B-058-PG1-UN
  • Technology: State of the art
  • Functionality: Extended
  • Design: Maintenance-free brushless
  • Durability: High
  • Torque: Medium
  • Applications: Precision robotics, Machining centers
  • Cooling options: Naturally cooled, Surface cooled
  • Rated torque (naturally cooled): 4.2Nm, 8.9Nm
  • Rated performance (naturally cooled): 2.1kW, 4.9kW
  • Rated torque (surface cooled): 13.4Nm
  • Rated performance (surface cooled): 7.0kW
  • Nominal speed: 4000 RPM
  • Rated frequency: 267 Hz
  • Poles: 4
  • Weight: 14 kg
  • Encoder: High accuracy multiturn absolute
  • Holding brake: 11.0Nm
  • Revolutions recorded by encoder: 4096 turns.
