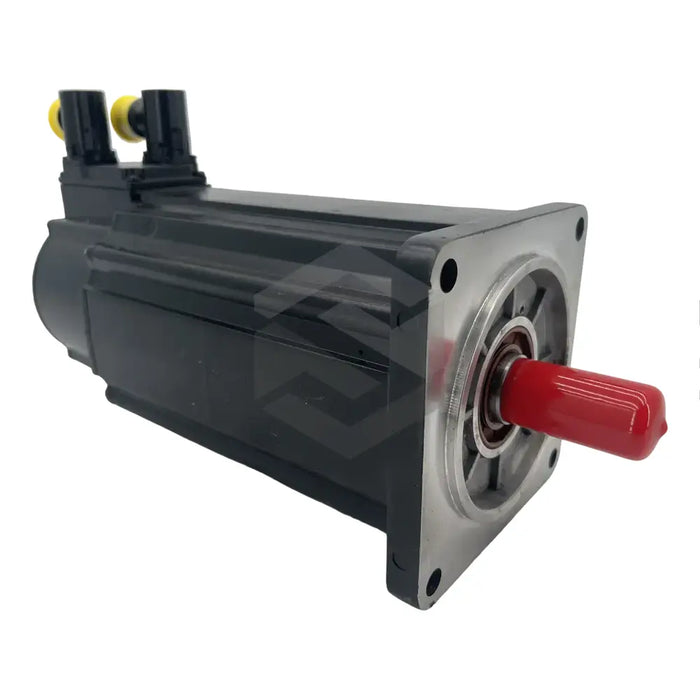

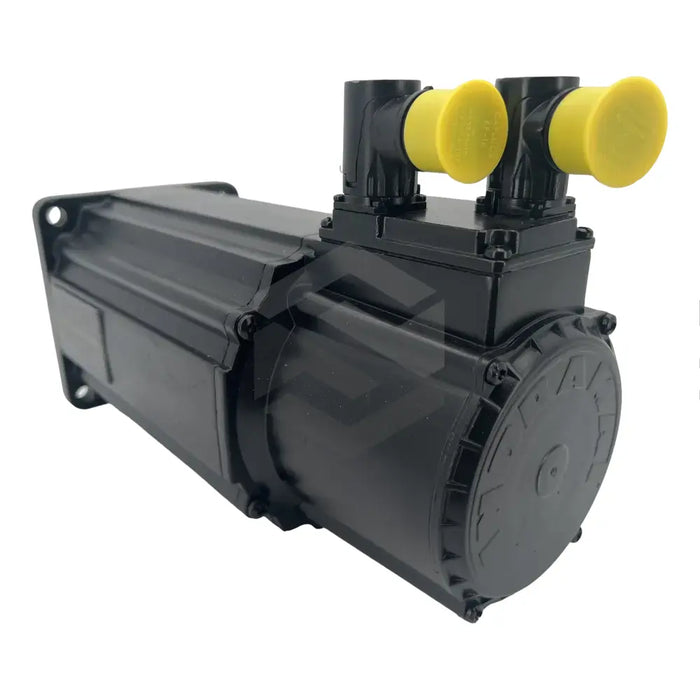

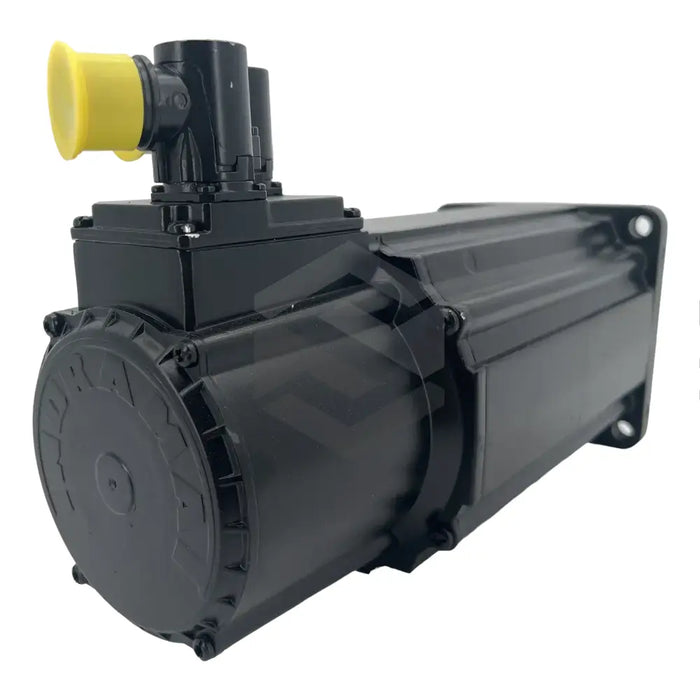

series image of MHD090B-058-PP1-UN

MHD090B-058-PP1-UN

by Bosch Rexroth Indramat
$4,302.21 - $4,302.21
$4,302.21
$4,302.21 - $4,302.21
$4,302.21
In Stock, Ships 3 - 5 Days
The MHD090B-058-PP1-UN is a top-tier servomotor produced by Bosch Rexroth, a leader in motion control products. This motor is part of their MHD Synchronous Motors series, known for their maintenance-free, high-accuracy, permanent magnet brushless motors, making them ideal for robotics and machining centers. The motor has an overtemperature setting of 60K and 100K for naturally cooled versions, delivering a rated torque of 4.2Nm and 8.9Nm, and a rated performance of 2.1kW and 4.9kW respectively. The surface-cooled version, with an air blower for forced convective cooling, provides a rated torque of 13.4Nm and performance of 7.0kW. All models operate optimally at 4,000 RPM and a frequency of 267 Hz and come with 4 poles for improved power delivery and smooth operation. It features a lightweight design at 14 kg, a DIN 6885-1 keyway-equipped driveshaft, an 11.0Nm holding brake, and includes an absolute multiturn encoder capable of tracking up to 4096 revolutions for accurate feedback.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: MHD Synchronous Motors
  • Model: MHD090B-058-PP1-UN
  • Cooling Types: Natural and Surface
  • Rated Torque (Natural Cooled 60K): 4.2Nm
  • Rated Performance (Natural Cooled 60K): 2.1kW
  • Rated Torque (Natural Cooled 100K): 8.9Nm
  • Rated Performance (Natural Cooled 100K): 4.9kW
  • Rated Torque (Surface Cooled): 13.4Nm
  • Rated Performance (Surface Cooled): 7.0kW
  • Nominal Speed: 4000 RPM
  • Rated Frequency: 267 Hz
  • Number of Poles: 4
  • Weight: 14 kg
  • Driveshaft Design: DIN 6885-1 keyway
  • Holding Brake: 11.0Nm
  • Servo Feedback Device: Digital with multiturn encoder
  • Encoder Revolutions: Up to 4096 revolutions.
