series image of MHD112A-024-PP1-AN

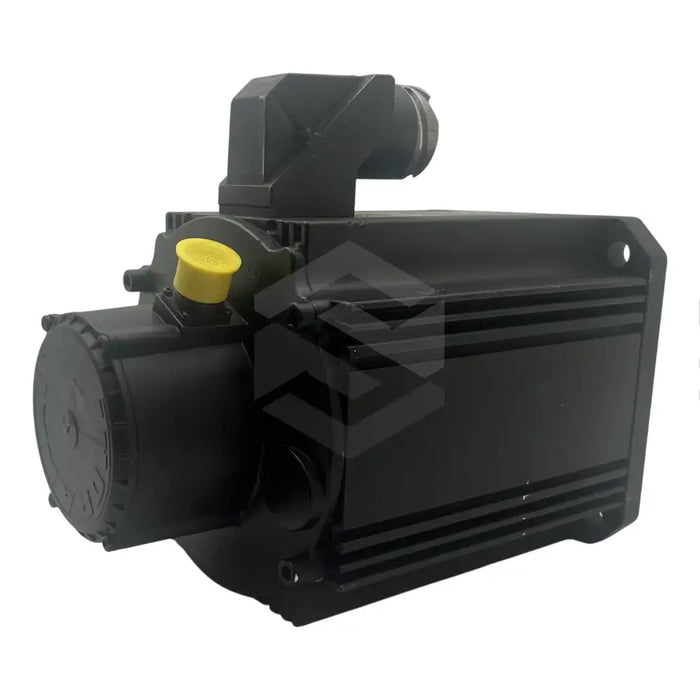

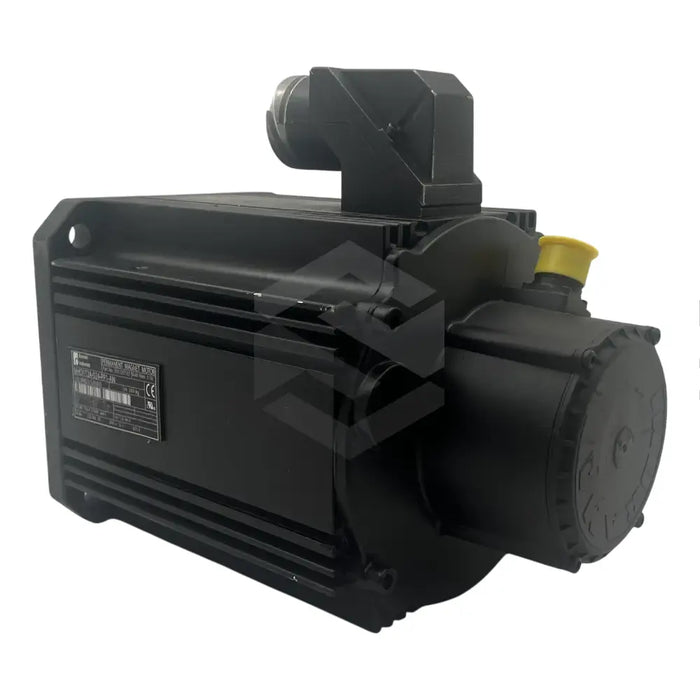

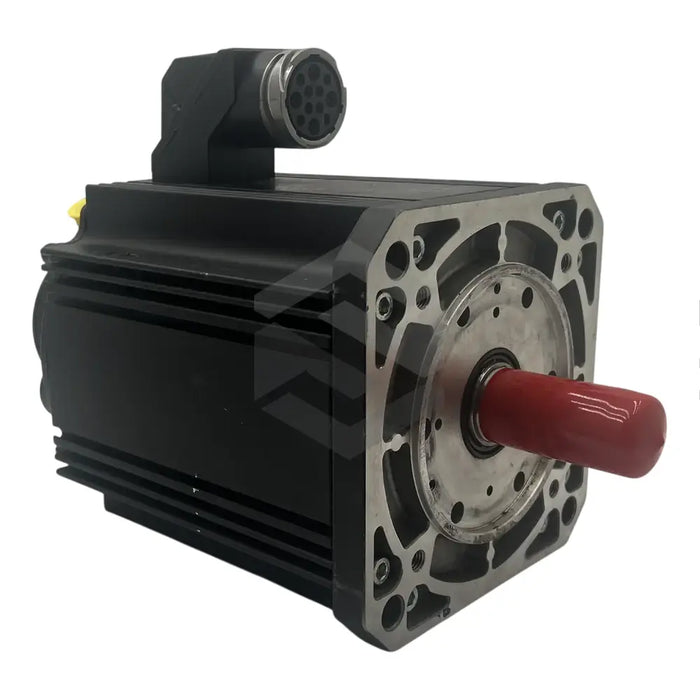

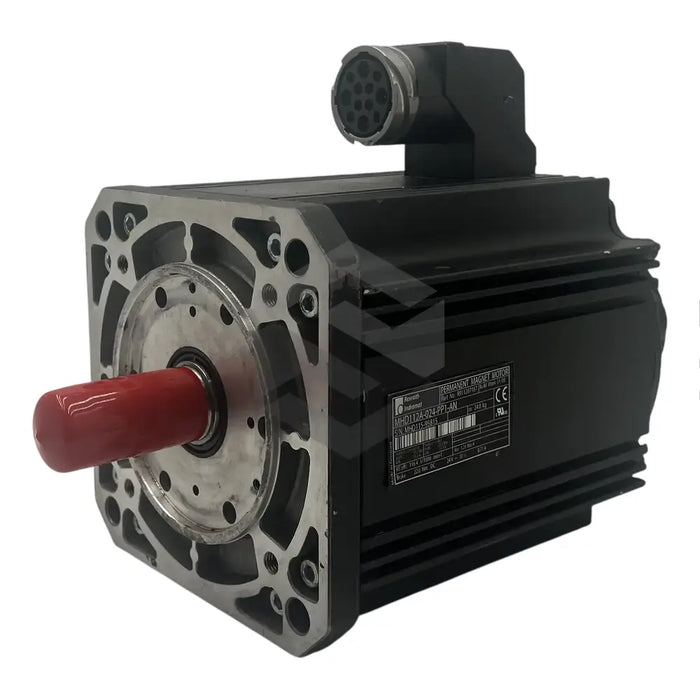

MHD112A-024-PP1-AN

by Bosch Rexroth Indramat
$4,342.11 - $4,342.11
$4,342.11
$4,342.11 - $4,342.11
$4,342.11
In Stock, Ships Today
The MHD112A-024-PP1-AN, crafted by Bosch Rexroth Indramat, belongs to the MHD Series and encompasses a synchronous servo motor of size value 100 with 'A' length type. This motor features a 24 winding code, and a digital servo feedback with an in-built multiturn absolute encoder for transmitting signals to the drive controller. It equips a DIN6885-1 standard shaft with key and a 22Nm holding brake. The power output is directed from the mechanical side A, and it's designed for natural convection or surface cooling. Mechanical specifications include a strand cross-section and time constant of 1.5mm² and 40 mins in natural 60K, reducing to 20min at surface 60K/100. Its peak speed is limited at 4000min–¹, and the rotor inertia and maximum theoretical torque are 110×10–⁴kgm² and 54Nm respectively. Weighing 23 kg without its holding brake and blowing unit, it complies with an IP65 protection class and 'F' insulation class as per DIN VDE 0530 Part 1 norms. The operating ambience temperature range is 0°C to 40°C while storage parameters stretch from -20°C to 80°C. Highest setup elevation is recommended at 1000m above MSL.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MHD Series
  • Model: MHD112A-024-PP1-AN
  • Motor Size: 100
  • Motor Type: Synchronous Servo Motor
  • Length Type: A
  • Winding Code: 024
  • Feedback: Digital Servo Feedback
  • Encoder: Integrated Multiturn Absolute Encoder
  • Shaft: With Key per DIN6885-1
  • Holding Brake: 22Nm
  • Power Connection: Mechanical Side A
  • Cooling Type: Natural Convection/Surface
  • Minimum Strand Cross-Section (Natural 60K/Surface 60K/100): 1.5mm²
  • Time Constant (Natural 60K/Surface 60K/100): 40min/20min
  • Maximum Speed: 4000min-¹
  • Rotors Moment of Inertia: 110×10–⁴kgm²
  • Theoretical Maximum Torque: 54Nm
  • Motor Mass (Without Brake and Blowing Unit): 23kg
  • Protection Class: IP65
  • Insulation Class: F
  • Permanent Storage Temperature: -20°C to 80°C
  • Operational Ambient Temperature: 0°C to 40°C
  • Maximum Setup Height: 1000m above MSL
  • Rated Torque (Natural 60K/Natural 100K/Surface 60K/100): 10.1Nm/13.8Nm/19.4Nm
  • Rated Performance (Natural 60K/Natural 100K/Surface 60K/100): 3.2kW/4.8kW/6.4kW
  • Rated Current (Natural 60K/Natural 100K/Surface 60K/100): 6.2A/9.1A/12A
  • Rated Voltage (Natural 60K/Natural 100K/Surface 60K/100): 374V/332V/355V
  • Rated Frequency: 167Hz
  • Rated Speed: 2500min–¹
