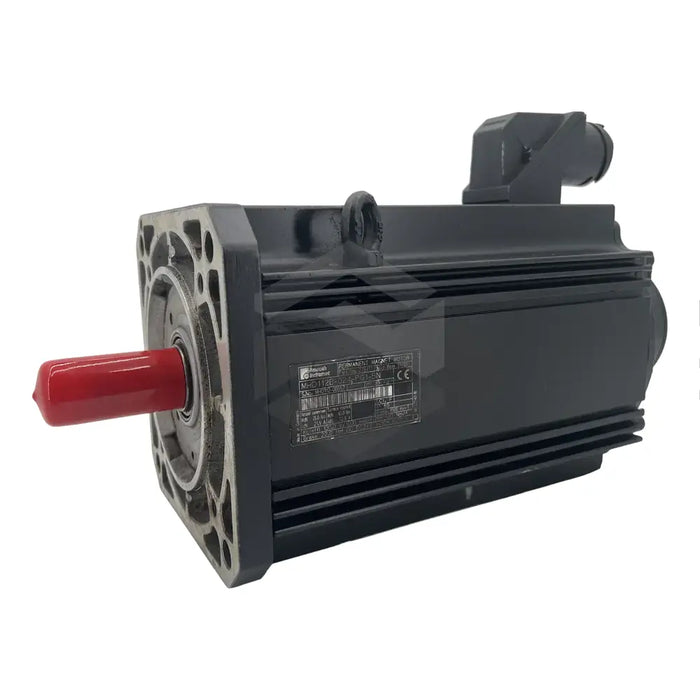

product Main (Front Left) image of MHD112B-024-PG1-BN

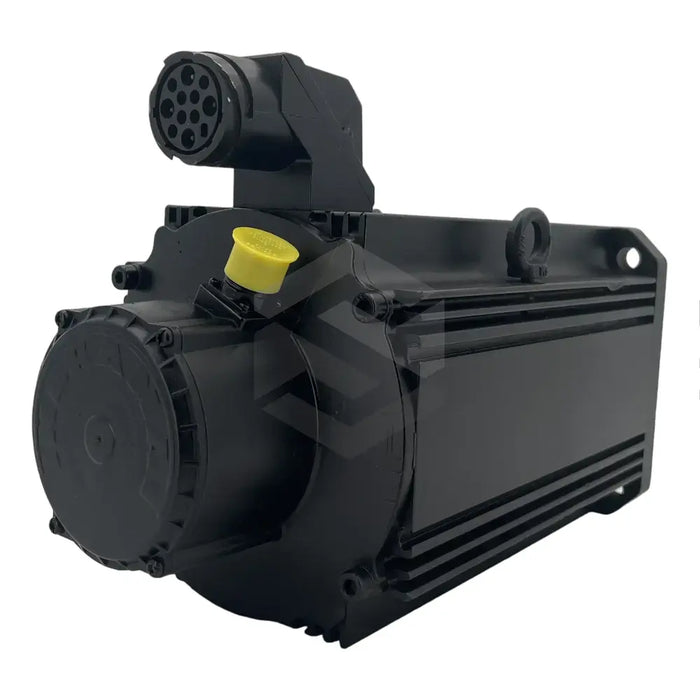

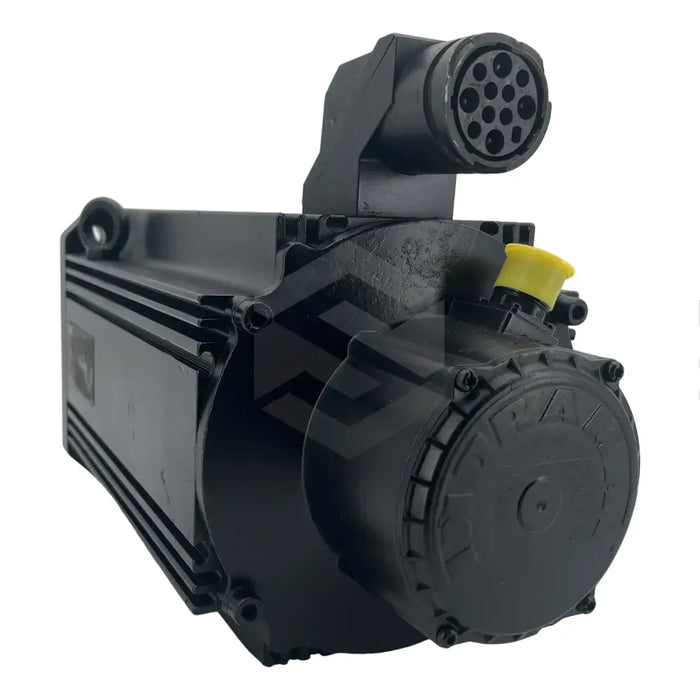

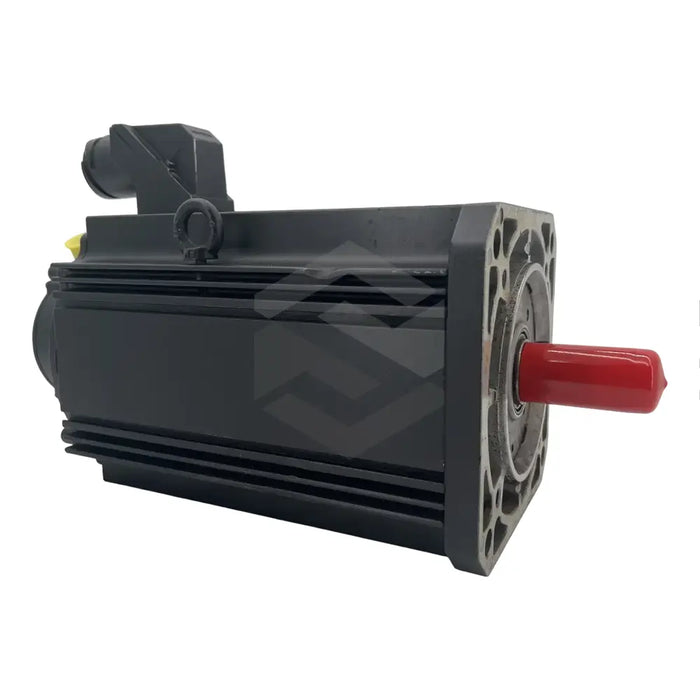

MHD112B-024-PG1-BN

by Bosch Rexroth Indramat
$2,362.50 - $2,362.50
$2,362.50
$2,362.50 - $2,362.50
$2,362.50
In Stock, Ships Today
The MHD112B-024-PG1-BN is a reputable legacy motor designed and produced by Bosch Rexroth Indramat as part of their MHD Series. This series is known for its permanent magnet synchronous motors that come with an array of features such as an output shaft, motor feedback, a holding brake, and a designated cooling method. The MHD112B-024-PG1-BN's other features include a 139mm centering diameter, a 192mm flange size, a frame length of 28.0 Nm and a winding code of 24. With an absolute encoder that provides digital servo feedback and an integrated multiturn, this motor ensures high-level performance. Furthermore, the 22.0Nm holding brake and plain output shaft with sealing ring reinforce the motor's efficiency. The motor's liquid cooling housing and side B direction output power connector add to its technical capabilities. The motor’s bearings are pre-lubricated and have the potential to outlast the expected 10-year lifespan of the motor.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MHD Series: Yes
  • Motor Type: Synchronous
  • Cooling Method: Yes
  • Output Shaft: Yes
  • Motor Feedback: Yes
  • Holding Brake: Yes
  • Brand Reputation: Legacy motor
  • Bearing Lifespan: 10-20 Years
  • Frame Sizes Available: 8
  • Frame Size for MHD112B-024-PG1-BN: 139 millimeters centering diameter
  • Flange Size: 192 millimeters
  • Frame Length: 28.0 Newton meters
  • Winding Code: 24
  • Encoder Type: Absolute digital servo feedback (multiturn integrated)
  • Holding Brake Power: 22.0 Newton meters
  • Output Shaft Type: Plain with sealing ring
  • Housing Type: Liquid cooled
  • Output Power Connector Direction: Side B
