series image of MHD112B-024-PP0-LN

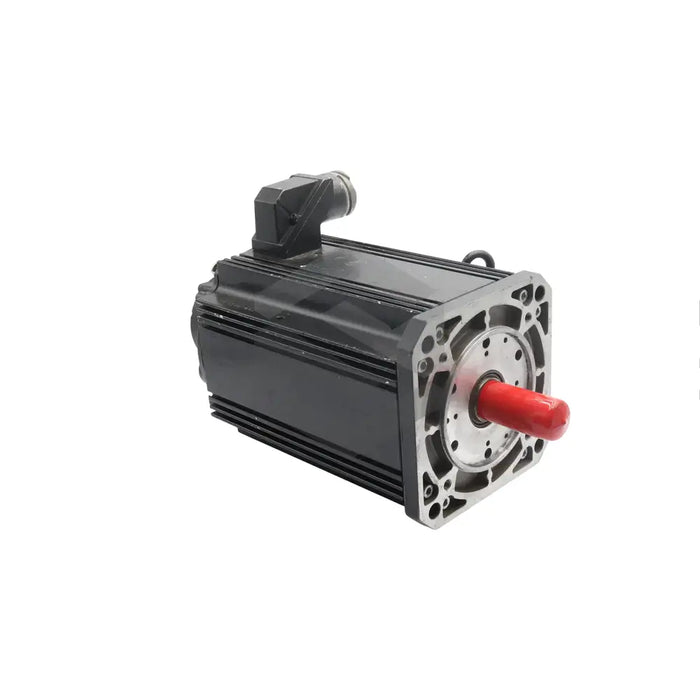

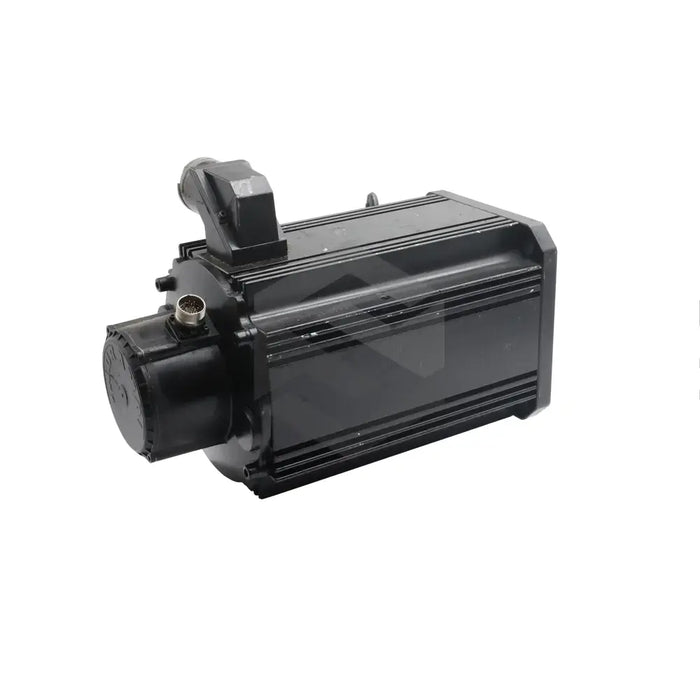

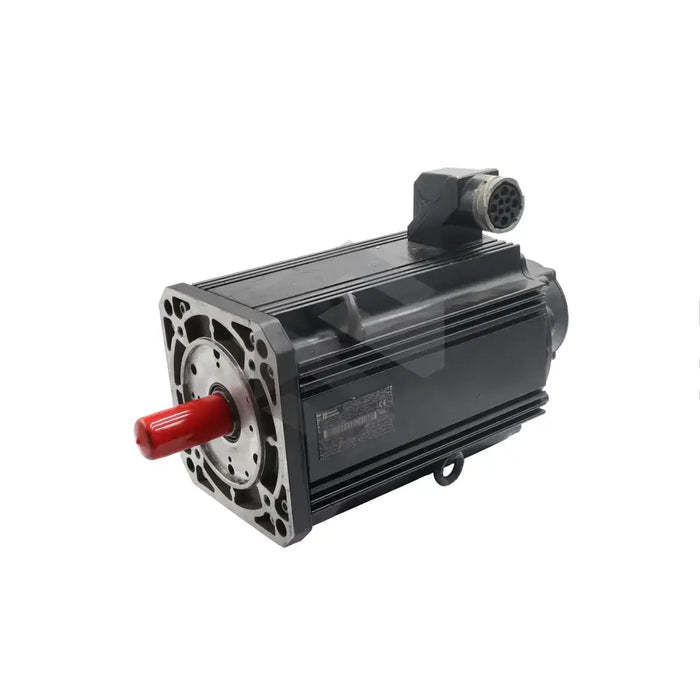

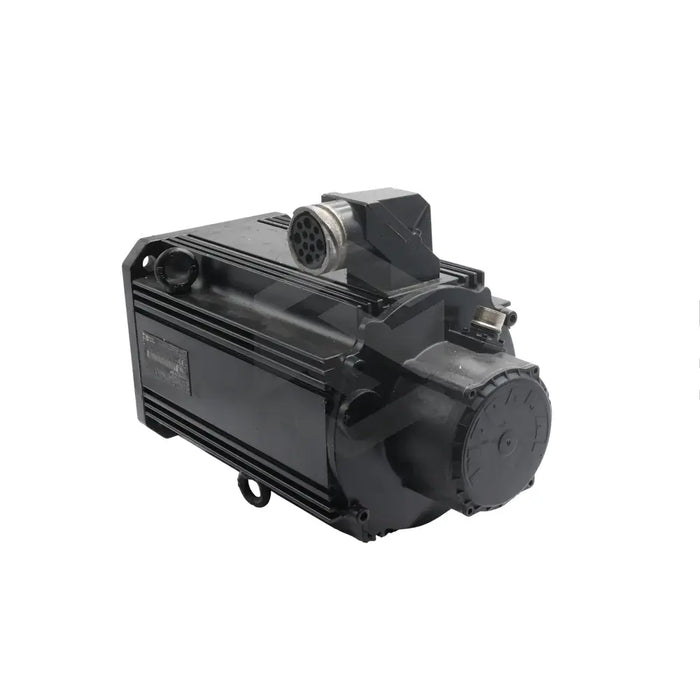

MHD112B-024-PP0-LN

by Bosch Rexroth Indramat
$16,708.59 - $16,708.59
$16,708.59
$16,708.59 - $16,708.59
$16,708.59
Available, Shipping Varies
Produced by Bosch Rexroth Indramat, the MHD112B-024-PP0-LN is a part of the MHD range of synchronous motors designed for cost-effective automation. Featuring a Digital Servo Feedback motor encoder, these motors are built for use as servo and main drive motors in a variety of applications including machine tools, packaging machines, and printing machines. The motor has a centering diameter of 130mm and a flange size of 192mm. As a permanent magnet motor, it uses electronic commutation along with low-inertia masses for rapid startup and high repeat frequency. The exterior stator windings ensure efficient heat dissipation, while the data memory in the motor encoder unit simplifies start-up process. The motor carries a 2000 min-1 rating, a peak current of 98A, and a Torque constant of 1.43Nm/A. Its performance data changes based on temperature as well as cooling method, except for liquid cooled motor settings.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: MHD synchronous motors
  • Usage: Servo and main drive motors
  • Motor Encoder: Digital Servo Feedback
  • Centering Diameter: 130mm
  • Flange Size: 192mm
  • Motor Method: Permanent magnet motor
  • Communation Method: Electronic Commutation
  • Stator Windings: Exterior of the chassis
  • Peak Current: 98A
  • Torque Constant: 1.43Nm/A
  • Rated Data: Dependent on temperature and cooling method
  • Added Benefits: Reliable performance, overload protection, high dynamics, easy installation.
