MHD112B-058-NG0-RN

by Bosch Rexroth Indramat
$8,925.00 - $8,925.00
$8,925.00
$8,925.00 - $8,925.00
$8,925.00
In Stock, Ships Today

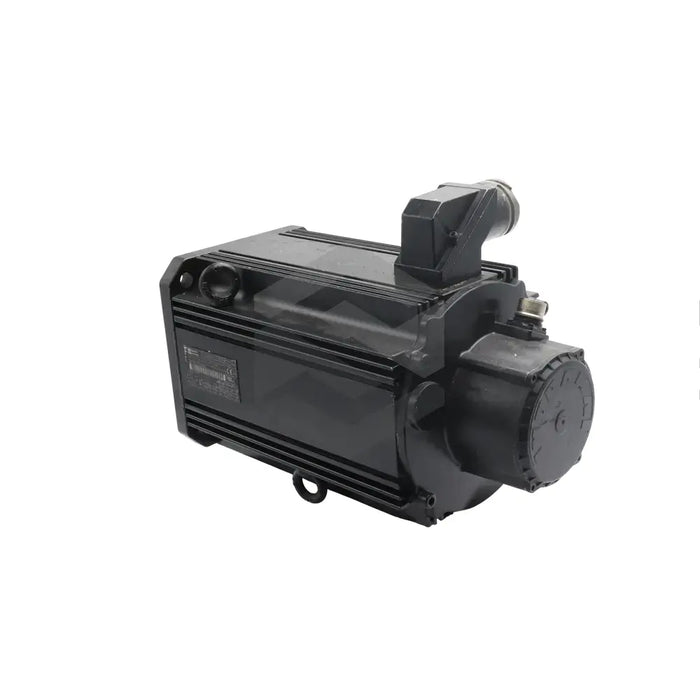

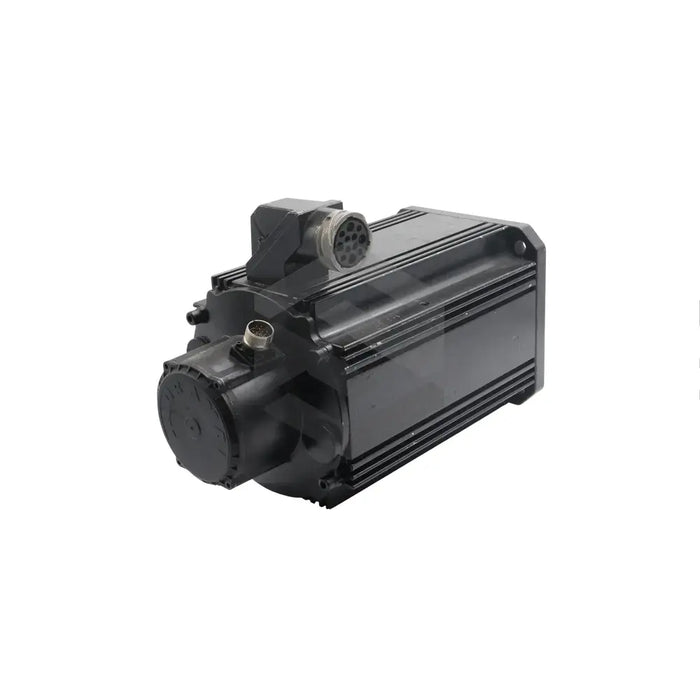

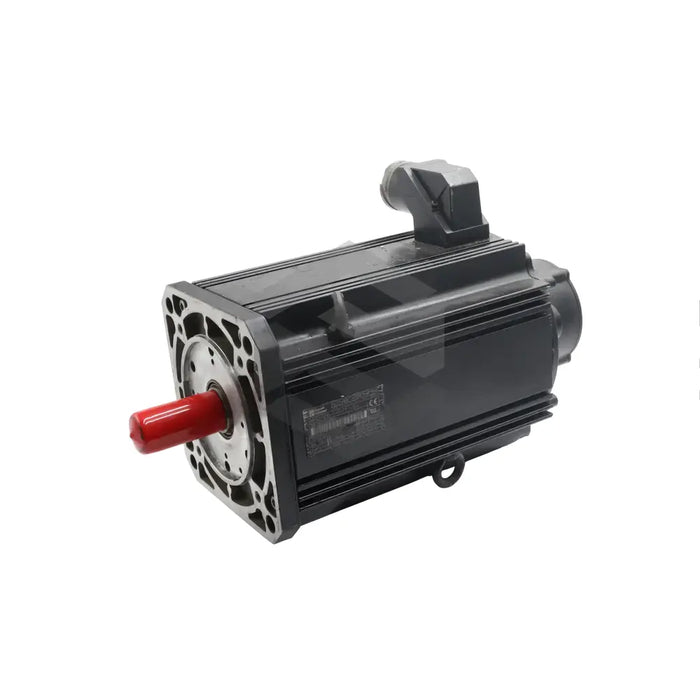

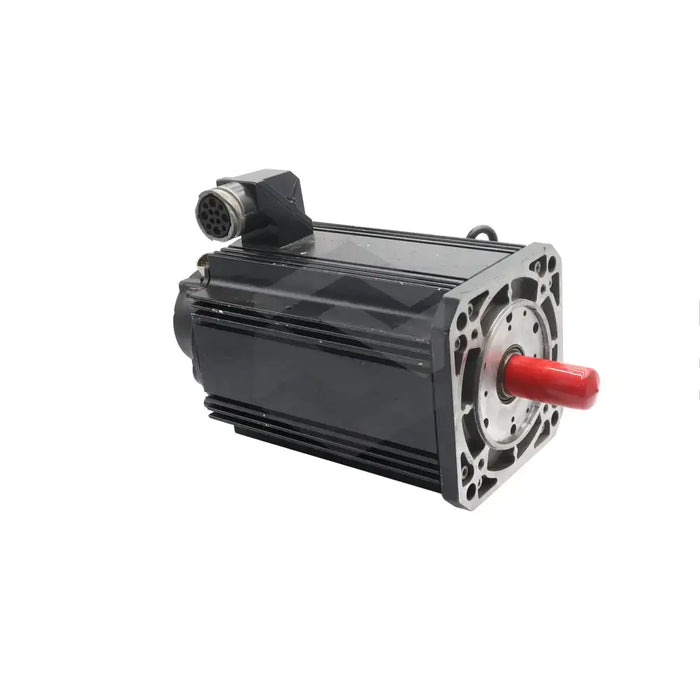

The Bosch Rexroth Indramat MHD112B-058-NG0-RN is a synchronous motor, equipped with an integrated encoder system for digital servo feedback. Designed for use in industrial machinery, it features brushless design for maintenance-free operation, and grease-lubricated bearings for exceptional service lifespan. The motor has a flange size of 260mm, a centering diameter of 250mm, and incorporates four pole pairs. Notably, it has a low inertia mass due to the use of special magnet materials in its permanent magnets. With a maximum setup height of 1000m above sea level, the motor has an IP 65 degree of protection, is rated with a peak current of 183A and a maximum torque of 102Nm. It can be installed in any orientation, provided there is no fluid accumulation around the shaft for vertical installations. Encoder's data memory stores the motor type name and parameters along with the control loop parameters.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MHD112B-058-NG0-RN Features: Hot housing surface, maintenance-free operation, brushless design, grease-lubricated bearings
  • Encoder System: Integrated for digital servo feedback
  • Installation instructions: Can be installed in any orientation, max setup height of 1,000m over sea level
  • Physical Specifications: Flange size of 260mm, centering diameter of 250mm for the shaft
  • Pole Pairs: Four
  • Usage: Primarily in machine tools
  • Magnet Materials: Special for low inertia mass
  • Product Handling: Subject to radial and axial forces on shaft and bearings during operation
  • Motor Type and Parameters: Stored in data memory of encoder
  • Length Code: B
  • Protection: IP 65 if power and encoder cables are mounted properly
  • Torque: Theoretical maximum of 102Nm
  • Current Rating: Peak of 183A
  • Shipping: Available to any country.
