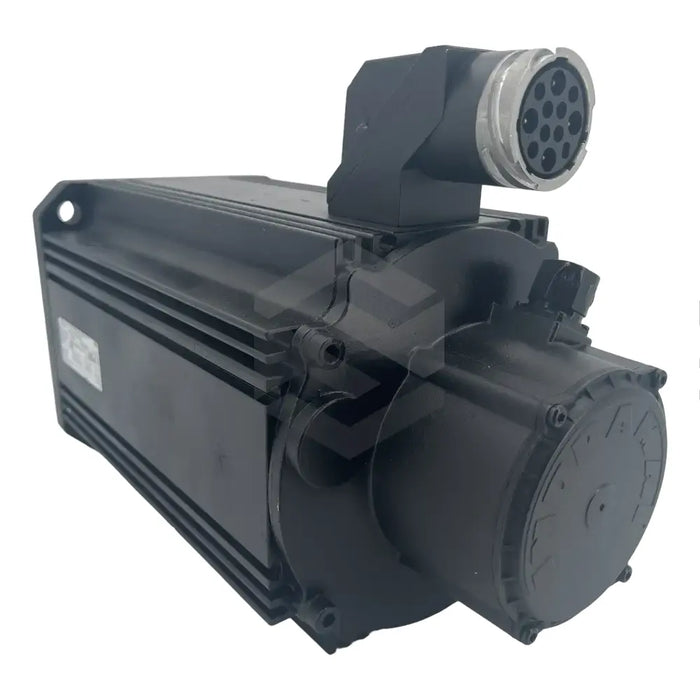

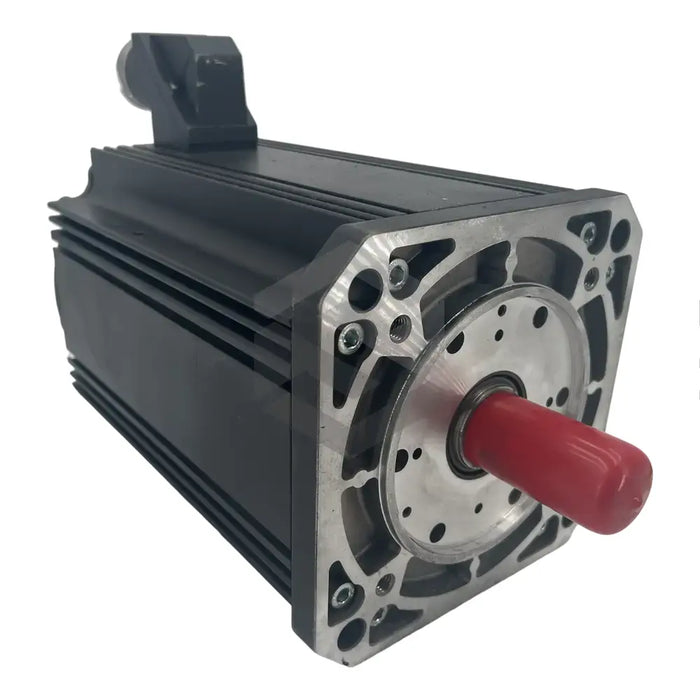

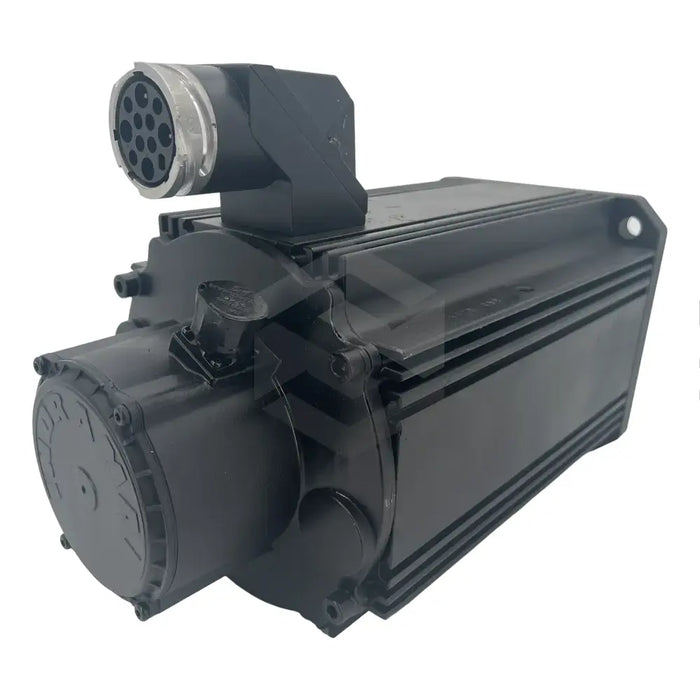

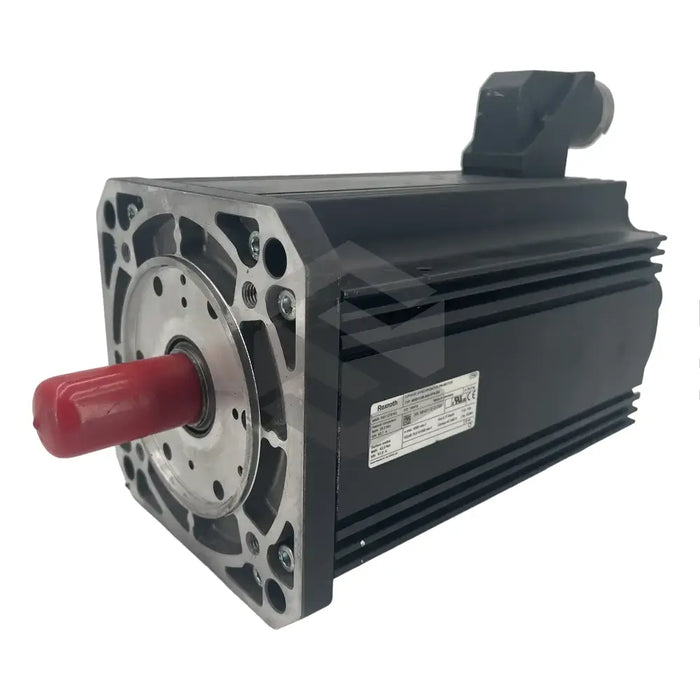

product Main (Front Left) image of MHD112B-058-PP0-BN

MHD112B-058-PP0-BN

by Bosch Rexroth Indramat
$3,000.00 - $3,000.00
$3,000.00
$3,000.00 - $3,000.00
$3,000.00
In Stock, Ships Today
The MHD112B-058-PP0-BN is a synchronous motor produced by Bosch Rexroth Indramat, specialists in cost-effective industrial automation solutions. This model boasts the standard Rexroth design, including options for natural convection or surface cooling, depending on heat discharge requirements. The motor's dimensions encompass a 192mm flange size, 130mm centering diameter and a 'B' frame length, denoting a continuous torque production of 28Nm when stationary. It can also produce 102Nm of torque intermittently at a maximum current of 183A for 400ms. Characteristically, it operates at a speed of 4000min-1, potentially reaching 4500min-1. The rated current usage is 6.4A, up to 26.7A for surface cooled type, with a terminal voltage of 212V or 301V for surface cooling. The motor uses digital servo feedback with an integrated multiturn absolute encoder and is designed without a holding brake. The MHD112B-058-PP0-BN meets international standards, exemplifying the performance and reliability typical of the Rexroth brand.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: MHD112B-058-PP0-BN Synchronous Motor
  • Motor Design: Standard Rexroth
  • Cooling Type: Natural Convection or Surface Cooling
  • Flange Size: 192mm
  • Centering Diameter: 130mm
  • Frame Length: B
  • Continuous Torque at Standstill: 28Nm
  • Maximum Torque: 102Nm
  • Maximum Permissible Current: 183A
  • Characteristic Speed: 4000min-1
  • Maximum Speed: 4500min-1
  • Rated Current: 6.4A (up to 26.7A for the Surface Cooled Type)
  • Terminal Voltage: 212V (or 301 for Surface Cooling Mode)
  • Motor Shaft Design: Keyway and Key according to DIN 6885-1
  • Holding Brake: None
  • Servo Feedback: Digital with Integrated Multiturn Absolute Encoder
  • Output Connectors Location: B-side
  • Standard Compliance: International Standards
