MHD112C-024-NP0-BN
Original price
$13,996.00
-
Original price
$13,996.00
Original price
$13,996.00
$13,996.00
-
$13,996.00
Current price
$13,996.00

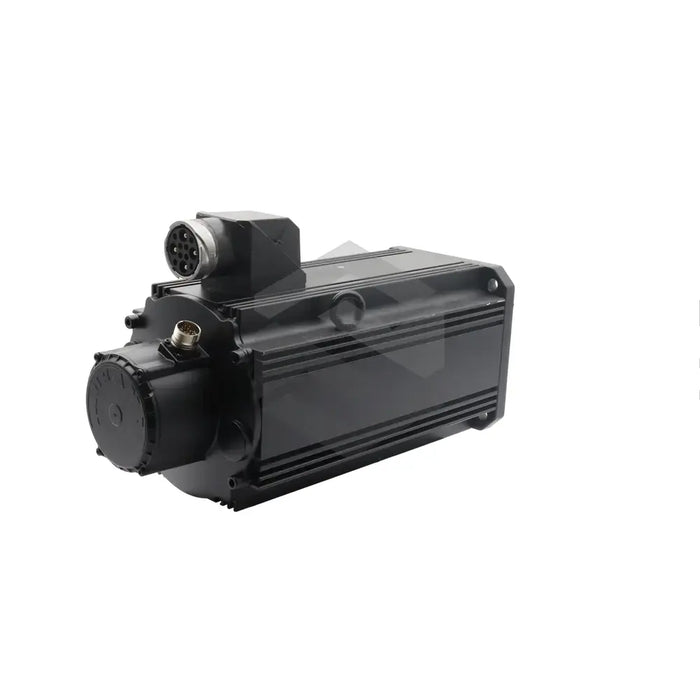

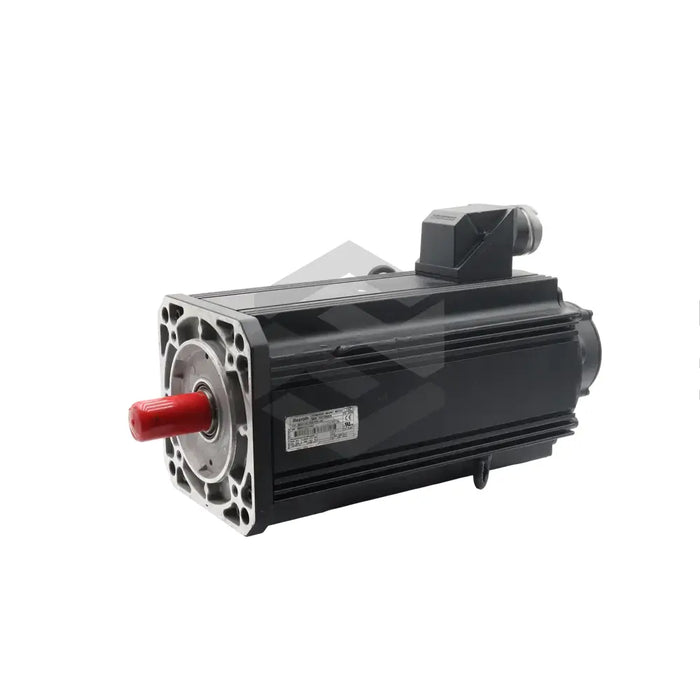

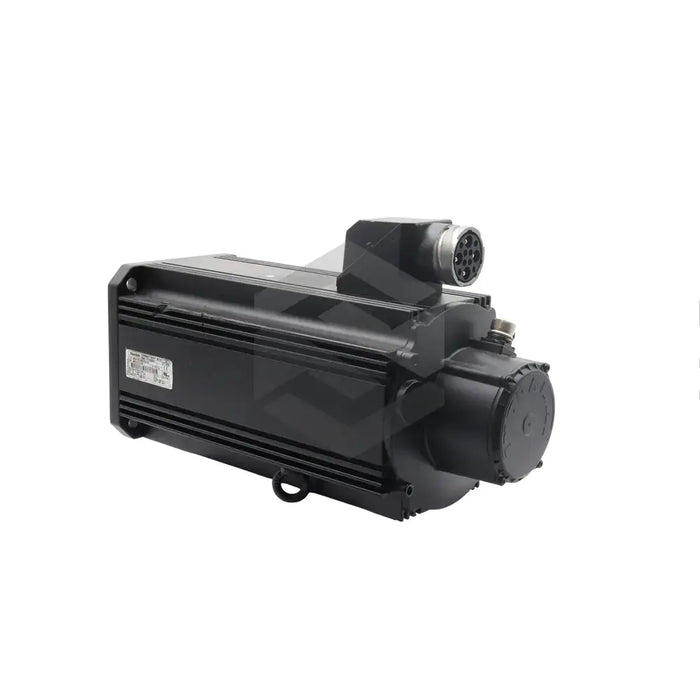

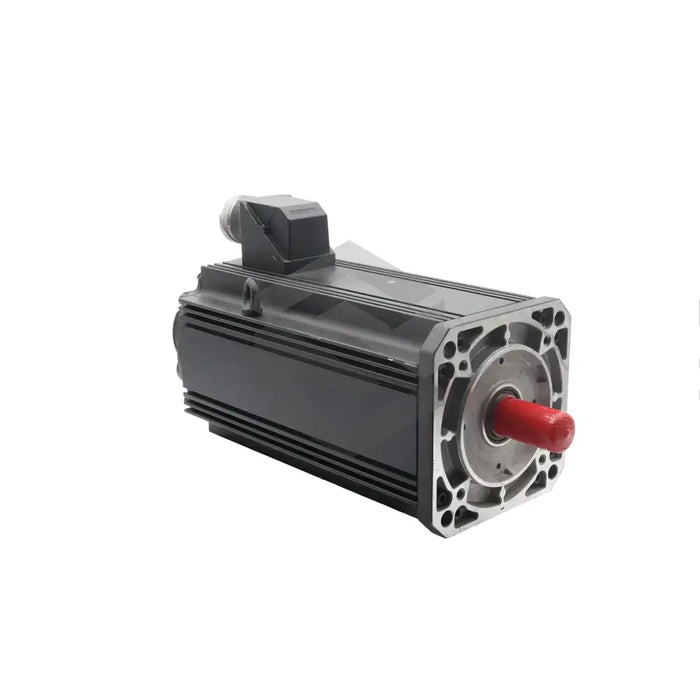

The MHD112C-024-NP0-BN is a robust, compact motor manufactured by Bosch Rexroth Indramat, designed for maximum torque delivery, particularly at low speeds. It measures 458mm in length, boasting a flange size of 192mm and a centering diameter of 130mm. With its natural convection or surface cooling feature, it effectively dissipates heat generated during operations. The IP65 protection class shows its resiliency against dust and water, and its insulation class ‘F’ in compliance with DIN VDE 0530 part 1. Performance-wise, it demonstrates a continuous torque at standstill of 38.0Nm, escalating up to 57.0Nm with surface cooling, and a notable maximum torque capacity of 148.0Nm. It operates optimally in an ambient temperature range of 0-40℃, and its moment of inertia reaches up to 2.73×10-2 kgm2. The motor interacts with the drive controller through its digital servo feedback and doesn't come with a holding brake.
30 Day Warranty
Technical Specifications
