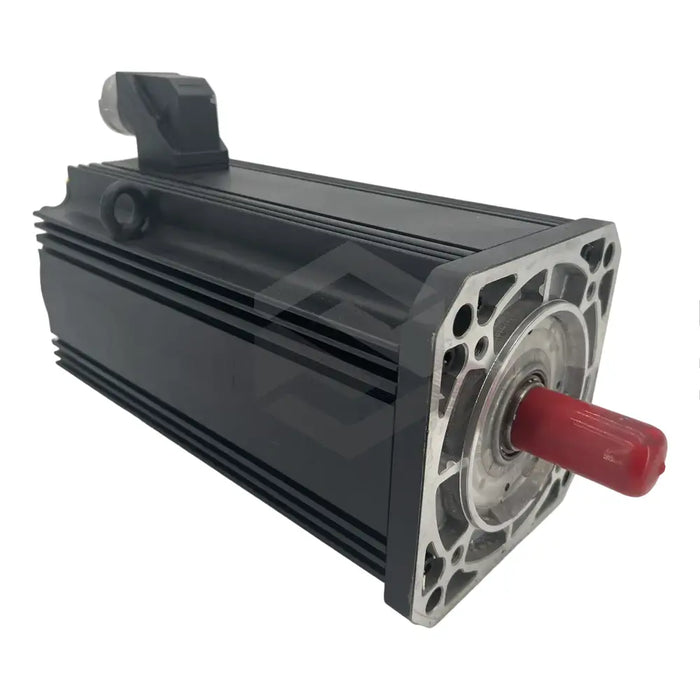

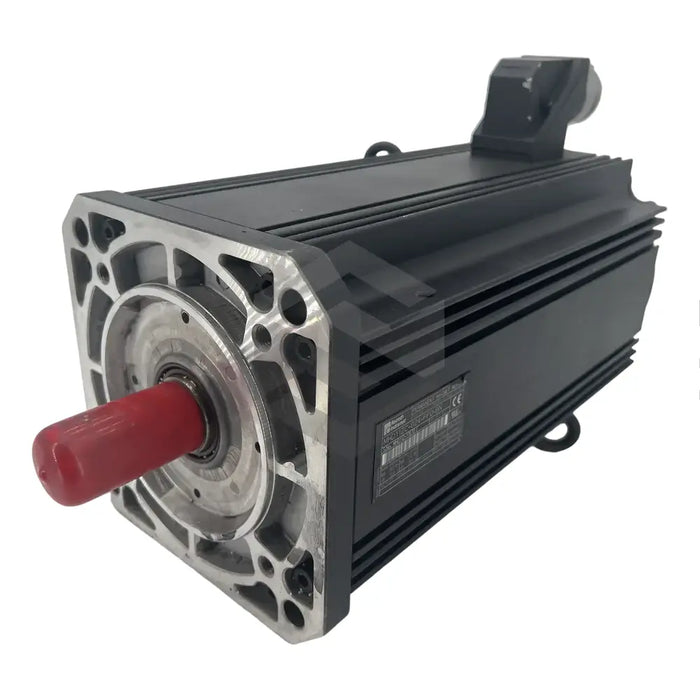

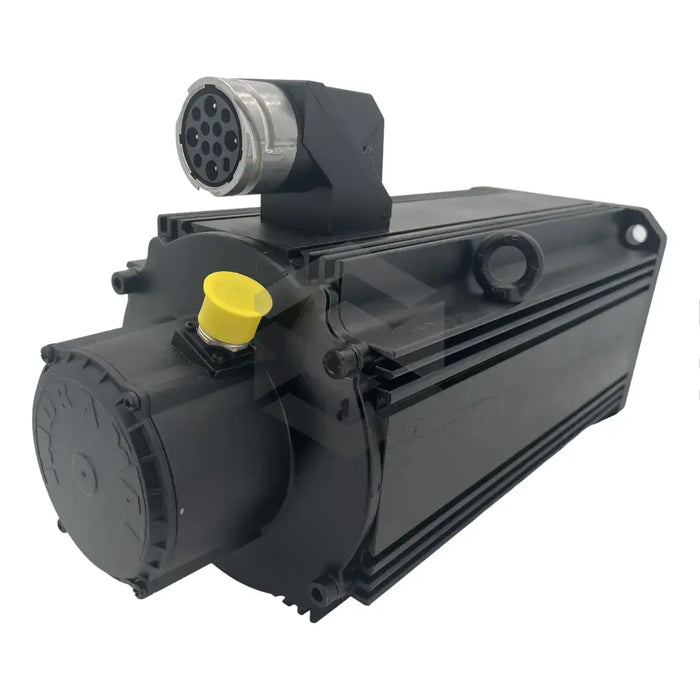

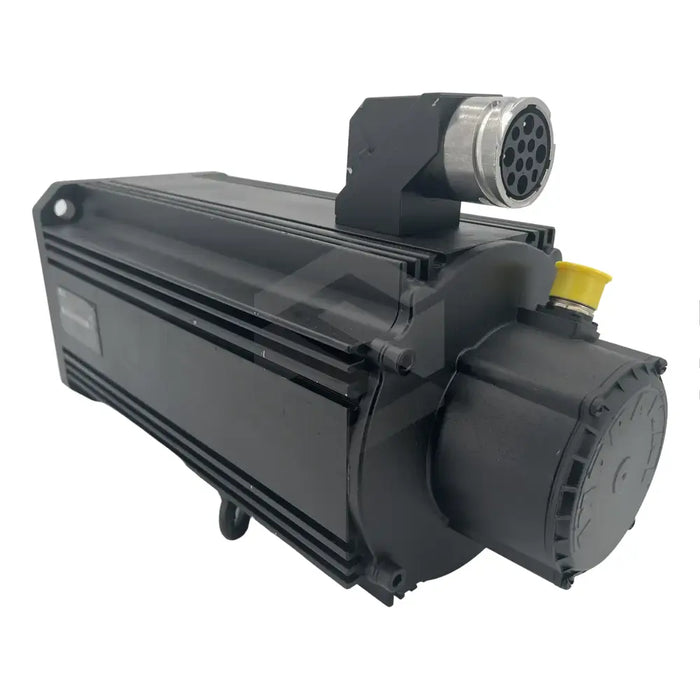

product Main (Front Left) image of MHD112C-024-PP0-BN

MHD112C-024-PP0-BN

by Bosch Rexroth Indramat
$1,920.00 - $1,920.00
$1,920.00
$1,920.00 - $1,920.00
$1,920.00
In Stock, Ships Today
The Bosch Rexroth Indramat MHD112C-024-PP0-BN is a permanent-magnet synchronous motor, designed for ease of cabling, installation, and quick startup. It's especially suited for machine handling, automation, and tools. With a motor size of 112, length C and winding code 024, this motor is 130mm in diameter and 458mm in length. Its power connector is directed towards side B, and the shaft comes with a DIN 6885-1 key and sealing ring. The motor utilizes digital servo feedback with an integrated multiturn absolute encoder. The motor housing provides IP65 protection, coated in RAL 9005 black varnish with an insulation class of F. Operating without a built-in holding brake, it uses natural convection or surface cooling. The motor can be stored between temperatures of -20 to 80 degrees Celsius and operates best between 0 to 40 degrees Celsius.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MHD Series
  • Product Code: MHD112C-024-PP0-BN
  • Motor Type: Permanent-magnet synchronous motor
  • Motor Size: 112
  • Motor Length: C
  • Winding Code: 024
  • Motor Diameter: 130 mm
  • Motor Length: 458 mm
  • Power Connector Direction: Side B
  • Shaft Design: With key as per DIN 6885-1
  • Encoder: Digital servo feedback with integrated multiturn absolute encoder
  • Protection of Housing: IP65
  • Housing Finish: Black varnish as per RAL 9005
  • Insulation Class: F
  • Brake: Not available
  • Cooling Method: Natural convection or surface cooling
  • Storage Temperature: -20 to 80 degrees Celsius
  • Operating Temperature: 0 to 40 degrees Celsius
  • Application Fields: Handling, Machine tools and Automation.
