product Main (Front Left) image of MHD112D-024-PP0-AN

MHD112D-024-PP0-AN

by Bosch Rexroth Indramat
$4,497.75 - $4,497.75
$4,497.75
$4,497.75 - $4,497.75
$4,497.75
In Stock, Ships Today

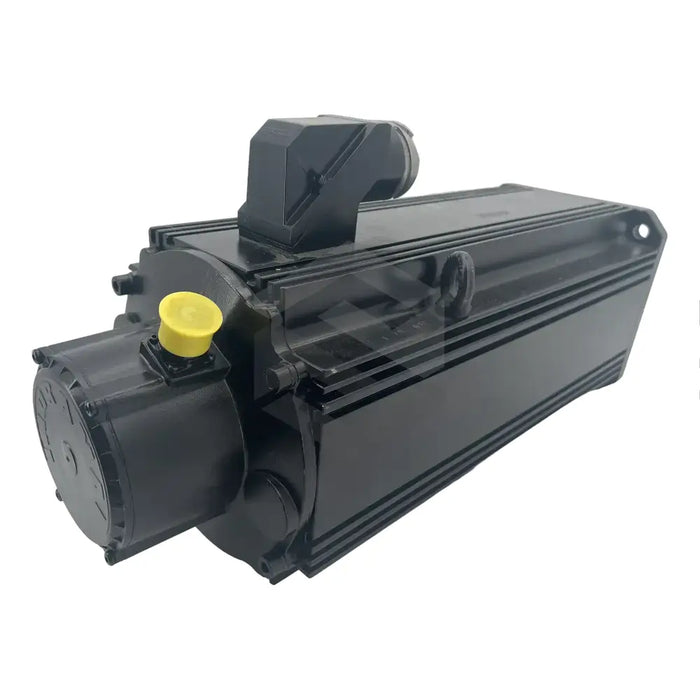

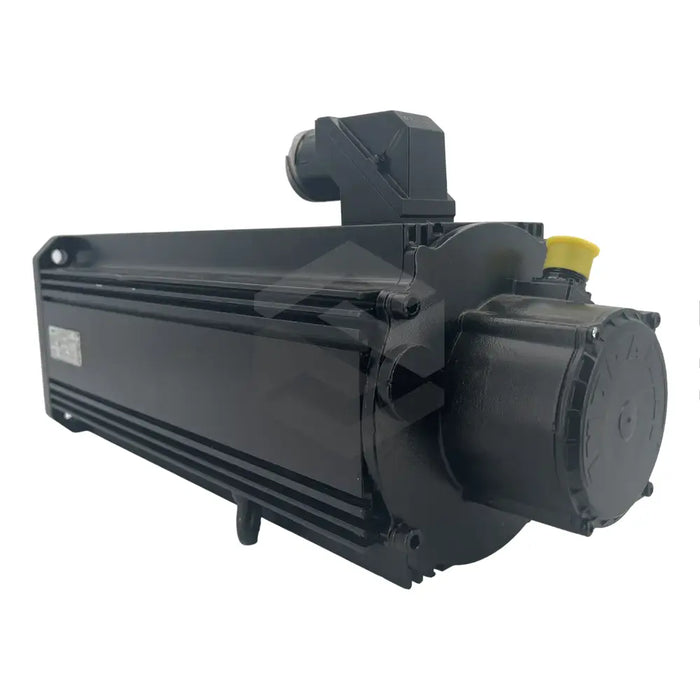

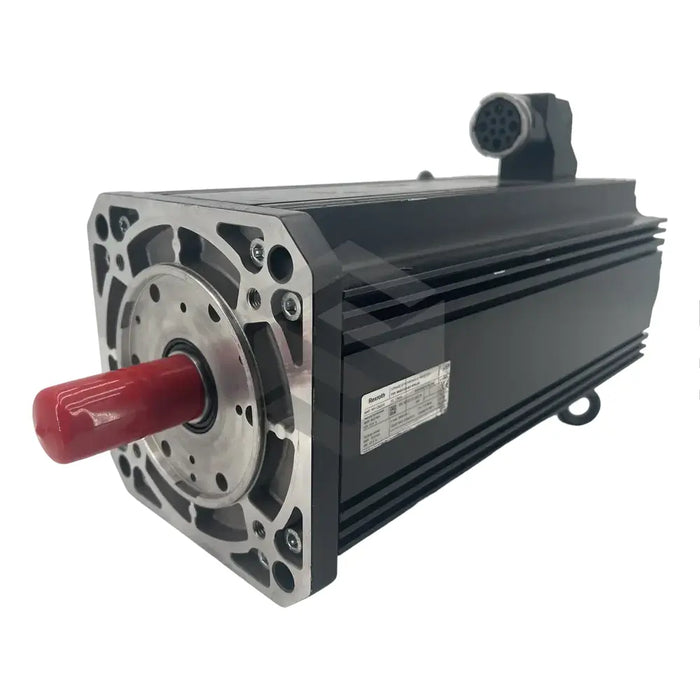

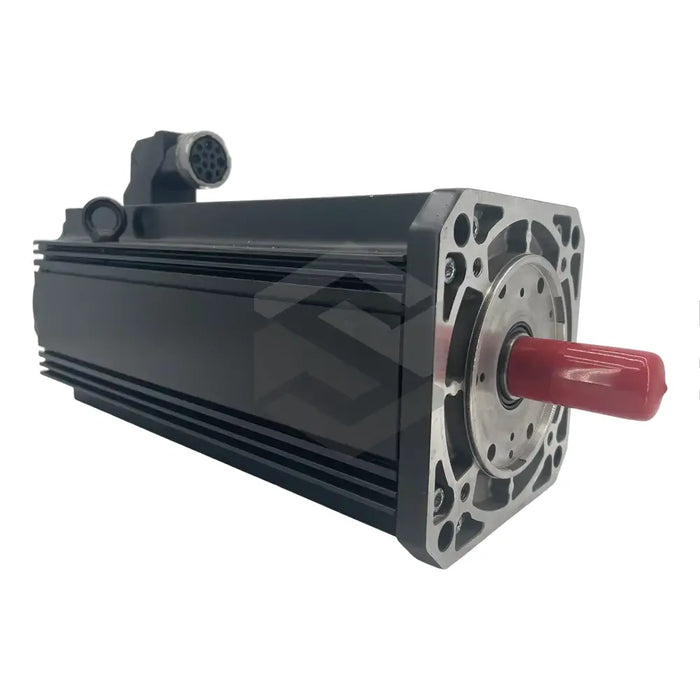

The Bosch Rexroth Indramat MHD112D-024-PP0-AN is a servo motor from the MHD series, commonly used in machine tools, printing, paper industries, and automation. This model has a motor frame size of 112 and a motor frame length of D, featuring a key-equipped shaft, a sealing ring, and a multiturn absolute encoder for digital servo feedback. The MHD112D-024-PP0-AN motor is encased in a naturally-cooled housing and doesn't feature a holding brake. The motor is outfitted with two connectors - a power connector on side A and an encoder connector for feedback. Additional accessories, such as sealing air connection accessories, planetary gearings, and worm gears are available. Notably, the motor contains a barcode and type label for detailed identification and service information. For storage, it's recommended to keep the motor between -20 and 80 degrees Celsius in a dust and vibration-free area, in a horizontal position, and with the drive shaft's protective sleeve intact.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MHD Servo Motor
  • Model Number: MHD112D-024-PP0-AN
  • Use: Automation Solutions
  • Compatible Equipment: Bosch Rexroth Drive Controllers
  • Motor Frame Size: 112
  • Motor Frame Length: D
  • Shaft Type: Key as per DIN 6885-1
  • Shaft Sealing Ring: Included
  • Servo Feedback: Integrated Multiturn Absolute Encoder
  • Accessories: Sealing Air Connection Accessories, Planetary Gearings, Worm Gears
  • Power Connector Location: Side A
  • Encoder Connector: Individual Plug Connection
  • Housing Design: Cooling via natural convection
  • Holding Brake: Not Available
  • Bar Code: Included
  • Type Label: Included
  • Storage Temperature: Between -20 and 80 degrees Celsius
  • Storage Conditions: Dust and Vibration Free, Horizontal Orientation, Plastic Protective Sleeve on Drive Shaft.
