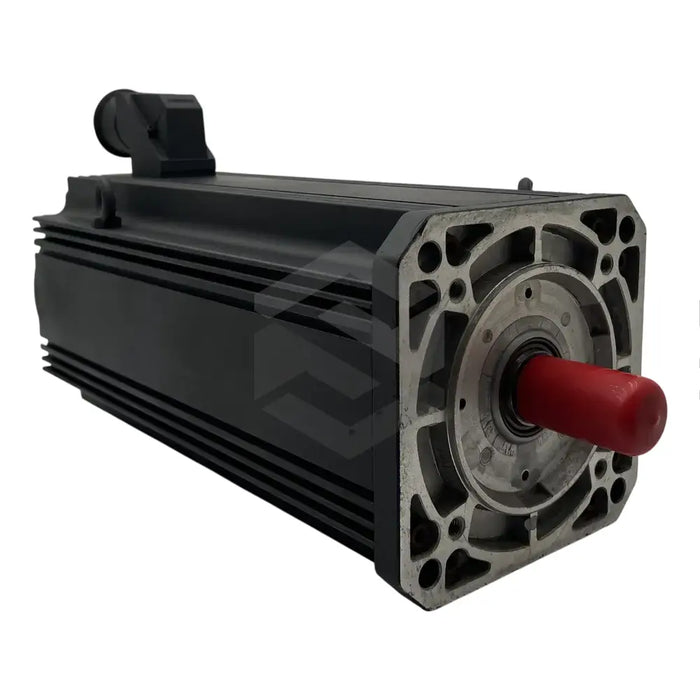

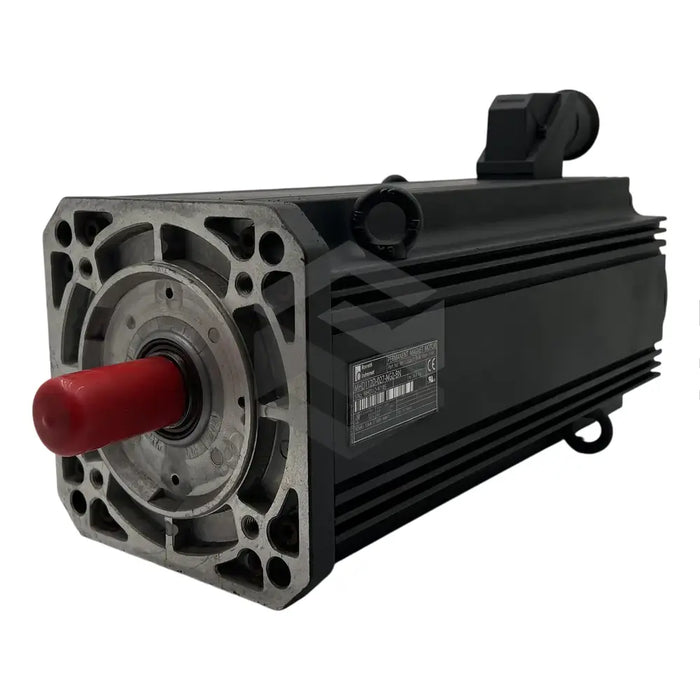

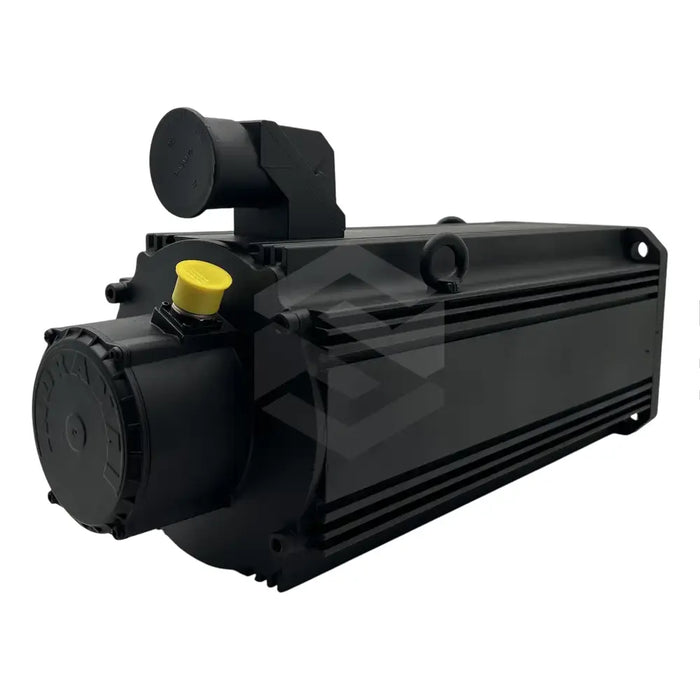

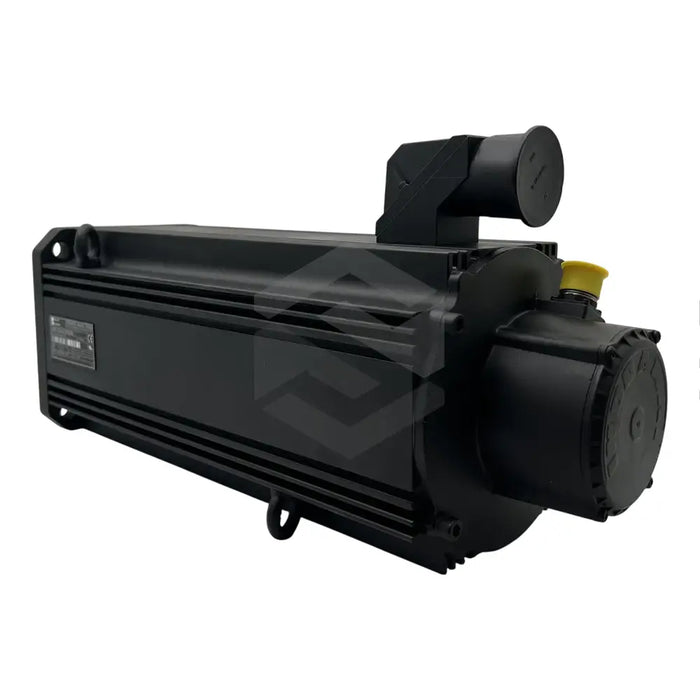

series image of MHD112D-027-NG0-BN

MHD112D-027-NG0-BN

by Bosch Rexroth Indramat
$9,811.34 - $9,811.34
$9,811.34
$9,811.34 - $9,811.34
$9,811.34
In Stock, Ships 3 - 5 Days
The Bosch Rexroth Indramat MHD112D-027-NG0-BN is an industrial servo motor in the MHD series, boasting a maximum speed of 3000 RPM. Its performance specifications alter based on cooling method and operating conditions. Under natural convection at 60K and 100K over temperatures, it has a rated speed of 2000 RPM, with varying torque, current, power output, and voltage values. When surface-cooled, it offers a rated speed of 2000 RPM, torque of 59.2 Nm, current of 27.6 Amps, power output of 15.2 kilowatts, and voltage of 344 Volts. It maintains a consistent rated motor frequency of 133 Hertz. Its thermal time constant varies from 40-90 minutes depending on the cooling method. Weighing 56 kilograms, it is provided with IP65 protection and plain shaft with a sealing ring. It lacks a holding brake but options are available. It has a B-side power connector and is flange-mounted with a flange size of 192 millimeters.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: MHD Series
  • Product Model: MHD112D-027-NG0-BN
  • Maximum Speed: 3000 RPM
  • Rated Motor Speed: 2000 RPM
  • Characteristic Motor Speed: 3000 RPM
  • Rated Speed (60K Natural Convection): 2000 RPM
  • Rated Torque (60K Natural Convection): 27.3 Nm
  • Rated Current (60K Natural Convection): 12.7 Amps
  • Rated Power Output (60K Natural Convection): 6.9 kilowatts
  • Rated Voltage (60K Natural Convection): 319 Volts
  • Rated Speed (100K Natural Convection): 2000 RPM
  • Rated Torque (100K Natural Convection): 41.5 Nm
  • Rated Current (100K Natural Convection): 20.7 Amps
  • Rated Power Output (100K Natural Convection): 11.3 kilowatts
  • Rated Voltage (100K Natural Convection): 331 Volts
  • Rated Speed (Surface Cooling): 2000 RPM
  • Rated Torque (Surface Cooling): 59.2 Nm
  • Rated Current (Surface Cooling): 27.6 Amps
  • Rated Power Output (Surface Cooling): 15.2 kilowatts
  • Rated Voltage (Surface Cooling): 344 Volts
  • Rated Motor Frequency: 133 Hertz
  • Thermal Time Constant (60/100K Natural Convection): 90 minutes
  • Thermal Time Constant (Surface Cooling): 40 minutes
  • Servo Motor Mass: 56 kilograms
  • Protection Degree: IP65
  • Feedback Type: Digital Servo Feedback
  • Shaft Type: Plain Shaft with Sealing Ring
  • Holding Brake: Not Included
  • Power Connector Position: Side B
  • Mounting Style: Flange Mounted
  • Flange Size: 192 millimeters
