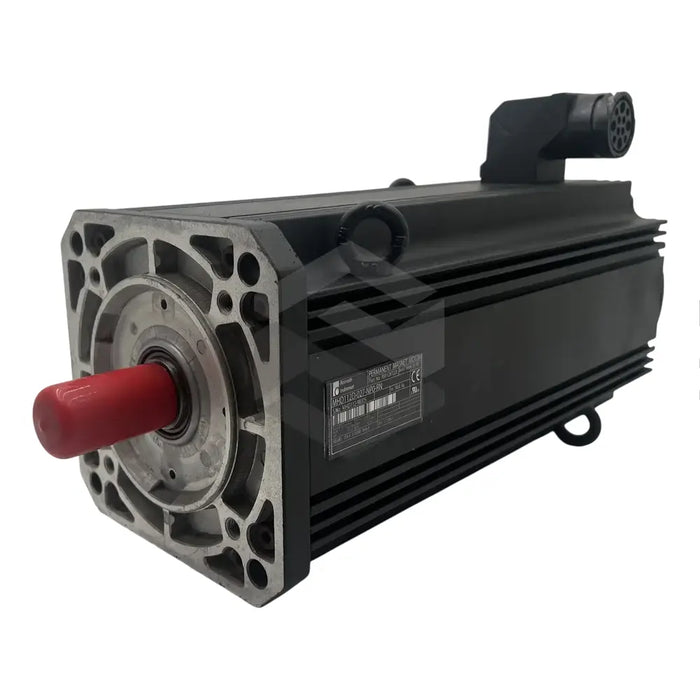

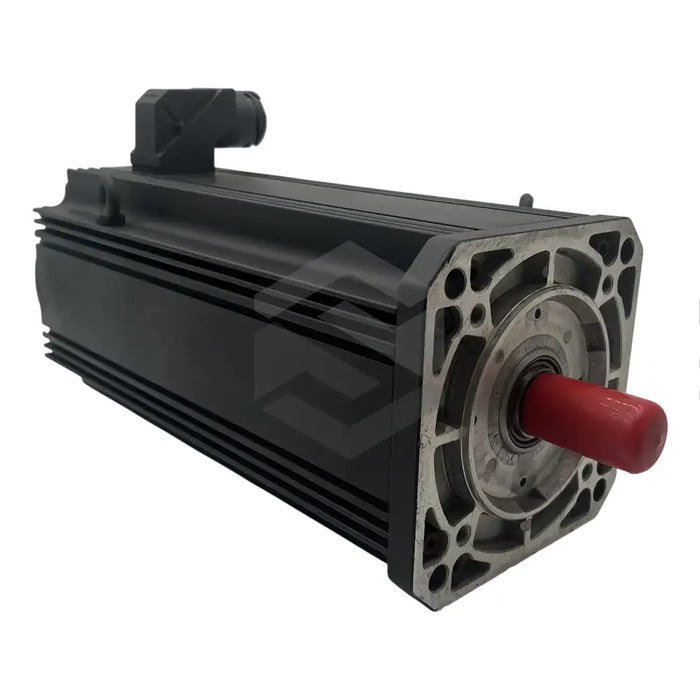

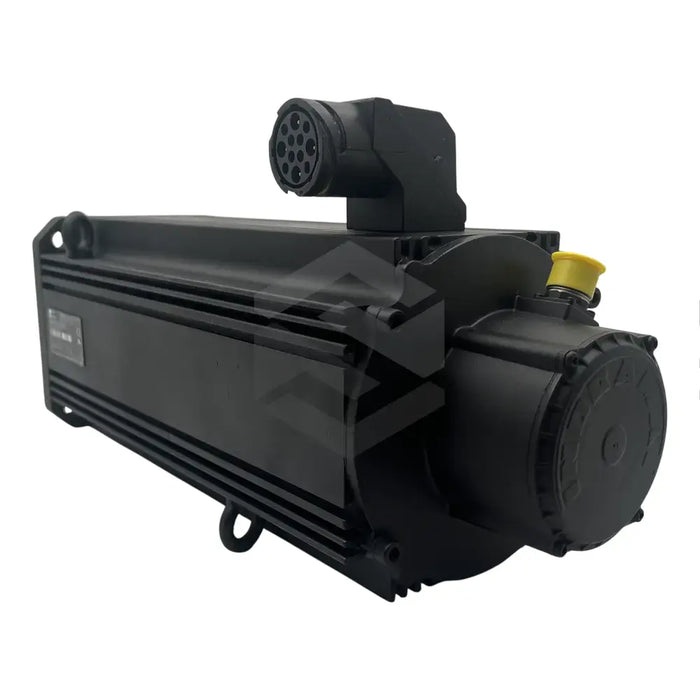

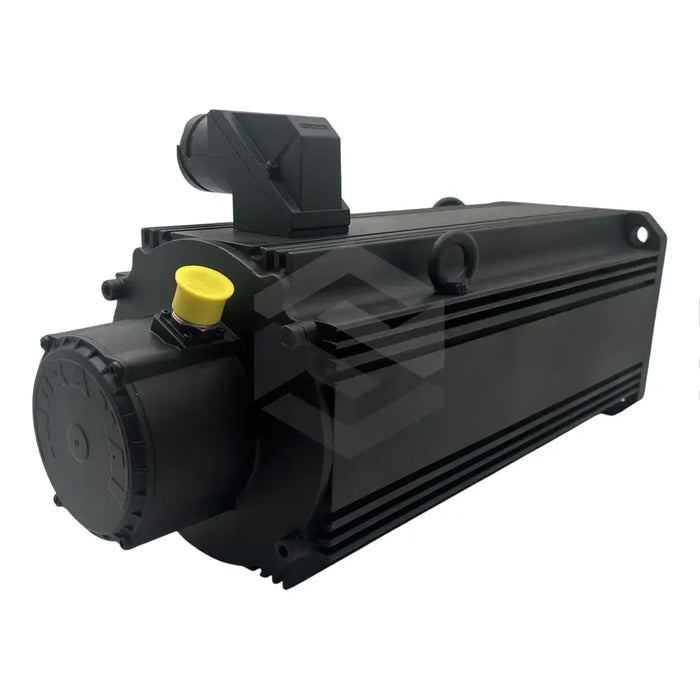

series image of MHD112D-027-NP0-RN

MHD112D-027-NP0-RN

by Bosch Rexroth Indramat
$15,980.00 - $15,980.00
$15,980.00
$15,980.00 - $15,980.00
$15,980.00
In Stock, Ships Today
The MHD112D-027-NP0-RN, a product of Bosch Rexroth's MHD series, is a high-performance servo motor known for its operational reliability. With a flange size of 192mm and a centering diameter of 130mm, this synchronous motor has thermal sensors that prevent overheating and promote high overload capability. Its unique housing design allows for natural or surface cooling, and its IP 65 rating ensures protection from dust, solid objects, and water spray. The motor has a maximum speed of 3,000 revolutions per minute, a rotor with a moment of inertia of 350x 10-4 kgm2, and employs a digital servo feedback system for position detection. With a system accuracy of ±0.5 angular minutes, the motor uses an optical measuring principle. The MHD112D-027-NP0-RN is equipped with a data memory for quick startup, and a shaft with a sealing ring and DIN 6885-1 keyway for constant direction keyed torque transmission.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Series: MHD
  • Model: MHD112D-027-NP0-RN
  • Flange Size: 192mm
  • Centering Diameter: 130mm
  • Built-in Thermal Sensors: Yes
  • Overload capability: High
  • Cooling Mechanism: Natural convection and surface cooling
  • Ingress Protection Rating: IP 65
  • Maximum speed: 3,000 revolutions per minute
  • Rotor Moment of Inertia: 350x 10-4 kgm2
  • Motor Feedback Type: Digital servo feedback
  • System Accuracy: ±0.5 angular minutes
  • Data Memory: Yes
  • Output Shaft: Shaft with shaft sealing ring and keyway according to DIN 6885-1
