series image of MHD112D-027-PP3-AN

MHD112D-027-PP3-AN

by Bosch Rexroth Indramat
$4,041.61 - $4,041.61
$4,041.61
$4,041.61 - $4,041.61
$4,041.61
In Stock, Ships 1 - 2 Days

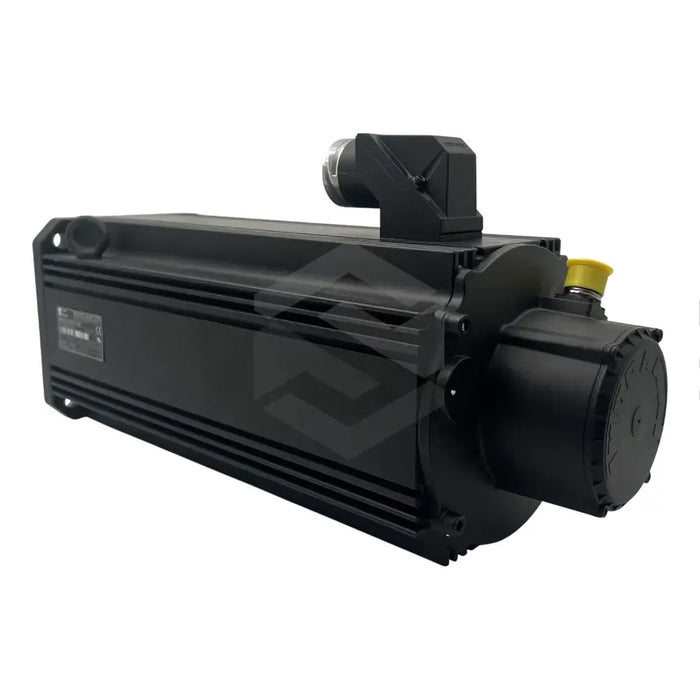

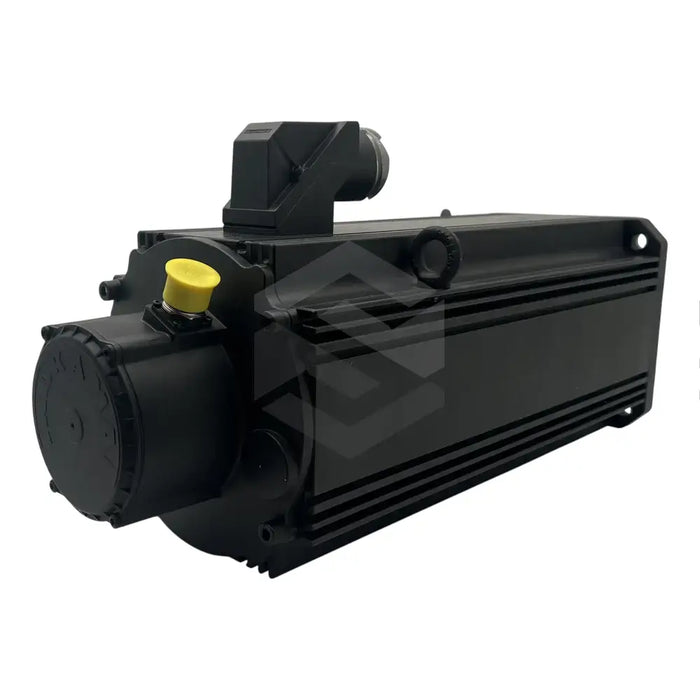

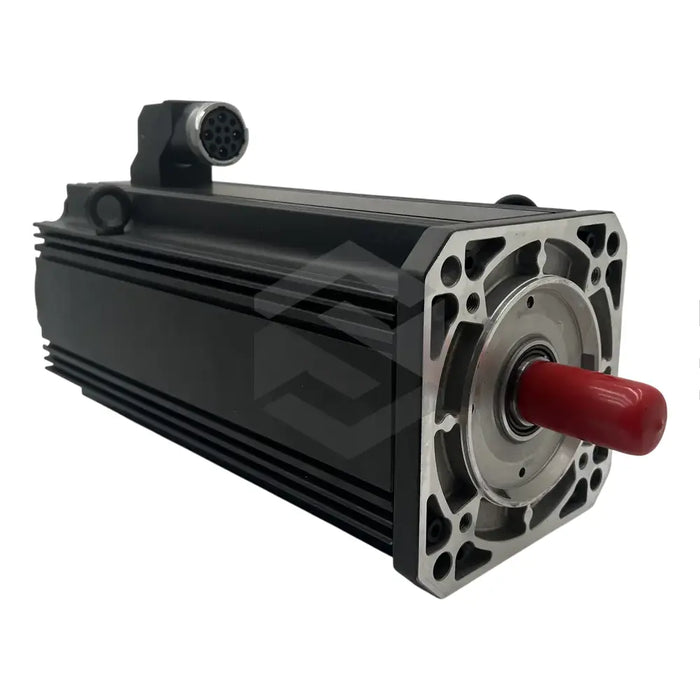

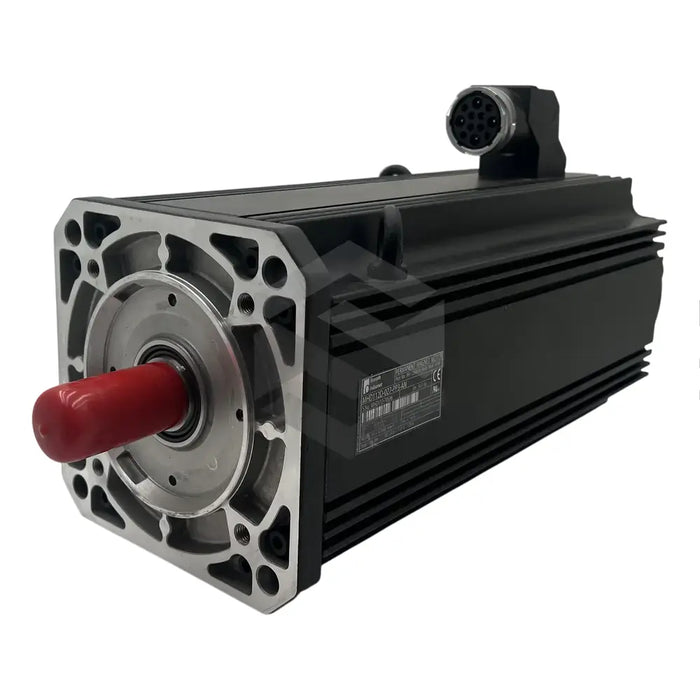

The MHD112D-027-PP3-AN is a high-quality synchronous motor from Bosch Rexroth's MHD series, renowned for its improved mechanical longevity, significant overload capacity, and high operational reliability. This model, with a 142.2 A peak current and torque constant of 1.7Nm, allows the use of its peak torque across a wide speed range. It employs superior permanent magnets for high-speed acceleration and boasts of a theoretical maximum torque of 187Nm. An impressive feature is its brushless design, which facilitates optimal performance even in high-speed start-stop applications. The motor also displays enhanced dynamics due to a high torque to inertia ratio. The MHD112D-027-PP3-AN flaunts a DIN 42948 compliant flange design for easy attachment to the host machine. Moreover, its bearings support increased radial load, allowing belt pulleys and pinions to be mounted in a direct overhung position. Finally, its encoder unit features built-in data memory for a swift and straightforward start-up.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MHD Series Model: MHD112D-027-PP3-AN
  • Mechanical Service Life: Enhanced
  • Overload Capability: High
  • Operational Reliability: High
  • Peak Current: 142.2 A
  • Torque Constant: 1.7 Nm
  • Amount of Pole Pairs: 4
  • Permanent Magnets: High Quality
  • Characteristic Speed: 2000 rpm
  • Possible Maximum Speed: 3000 rpm
  • Theoretical Maximum Torque: 187 Nm
  • Motor Design: Brushless
  • Torque to Inertia Ratio: High
  • Installation Flexibility: Can be installed in any position
  • Energy Dissipation: Fast
  • Attachment to Machine: Easy, DIN 42948 compliant flange design
  • Increased Radial Load Handling: Yes, due to motor bearings
  • Encoder Unit: Has its own data memory for quick and simple start up.
