MHD115B-024-PP1-BA
Original price
$7,490.45
-
Original price
$7,490.45
Original price
$7,490.45
$7,490.45
-
$7,490.45
Current price
$7,490.45

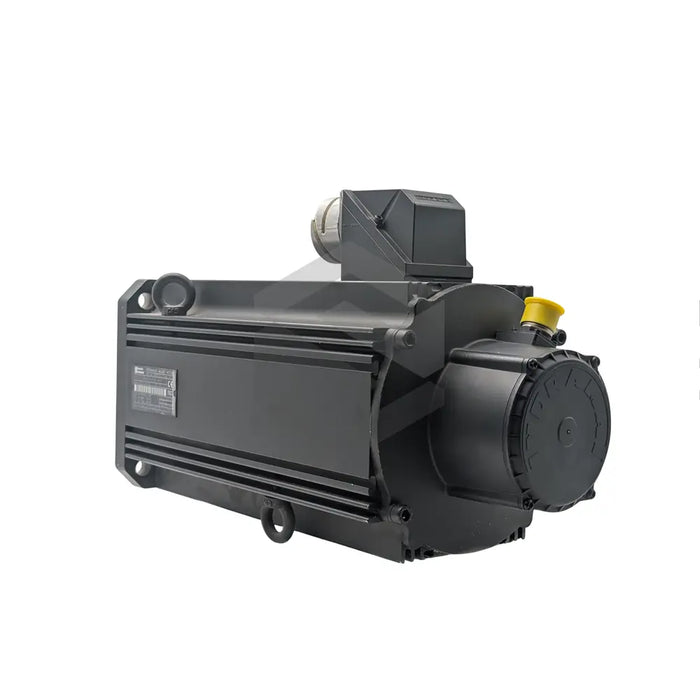

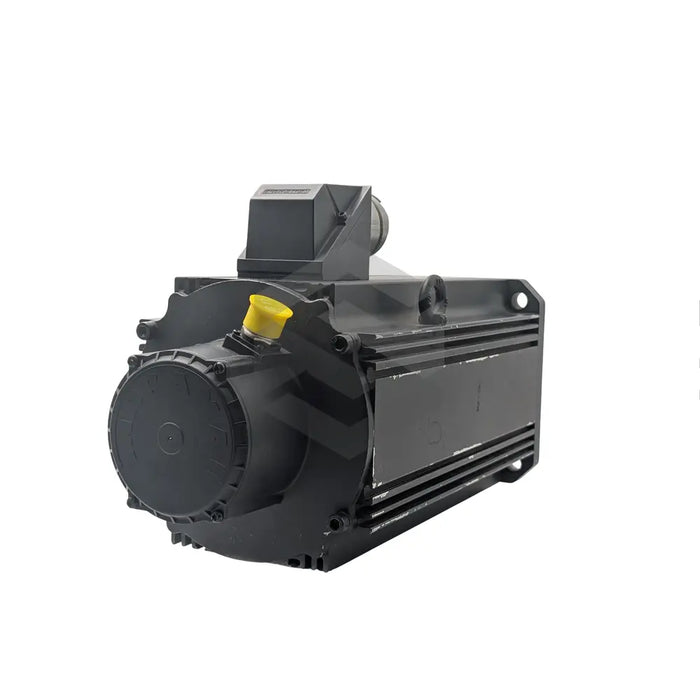

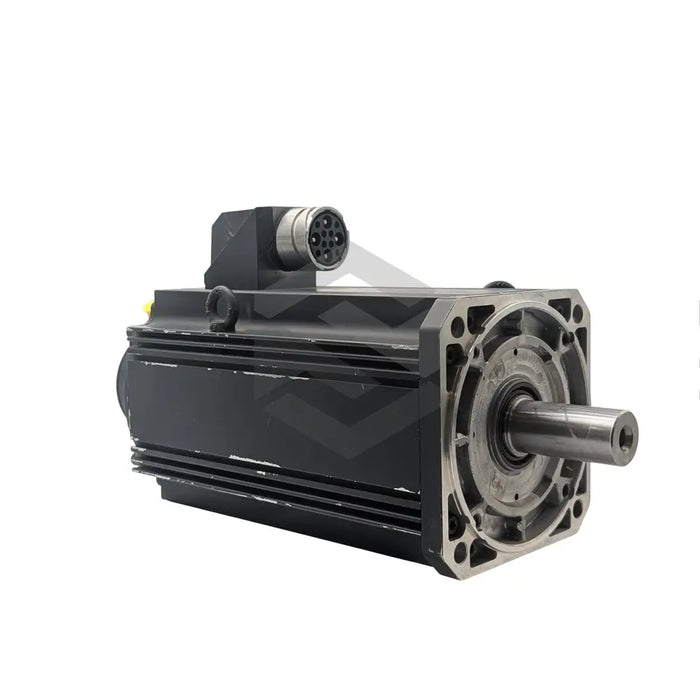

The Bosch Rexroth Indramat MHD115B-024-PP1-BA is a multifunctional, efficient and durable synchronous motor, suitable for various industrial applications. It incorporates a multiturn absolute encoder and digital servo feedback, along with a keywayed shaft encased in a seal to guard against lubricants and dirt. It uses between 32.3 and 37.9 A, delivering from 50 to 57 Nm of continuous torque under natural cooling at 60 to 100 K temperatures. Equipped with a black paint-coated casing for additional protection against harsh environments, this synchronous motor can be installed in any direction, as long as the installation height does not exceed 1000 meters above sea level. The MHD115B-024-PP1-BA, in surface cooling mode at 60/100 K, can deliver 14.4 kW and provides a maximum torque of 56.1 Nm at a rated voltage of 337 V. It weighs 40 kg and holds a rating of F for insulation and IP 65 for protection. The model ensures effective operation within a temperature range of 0 to +40 degrees Celsius.
30 Day Warranty
Technical Specifications
