series image of MHD115B-024-PP1-RA

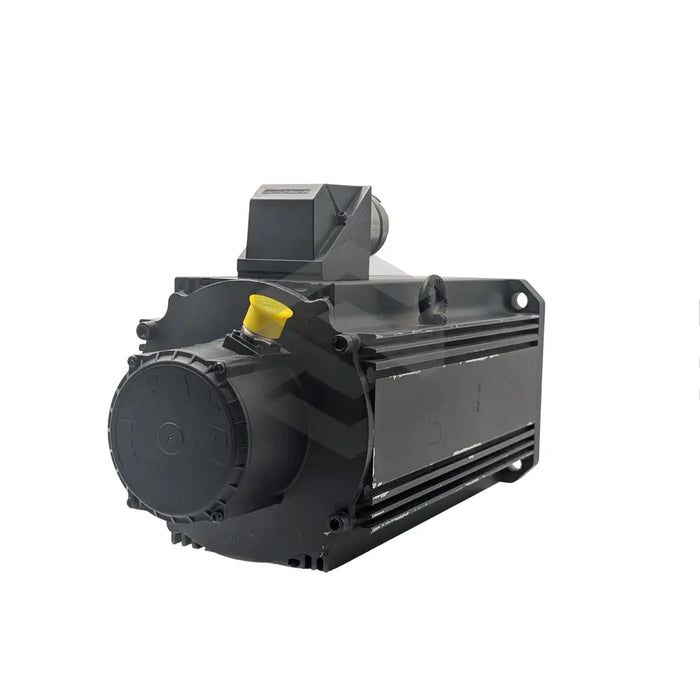

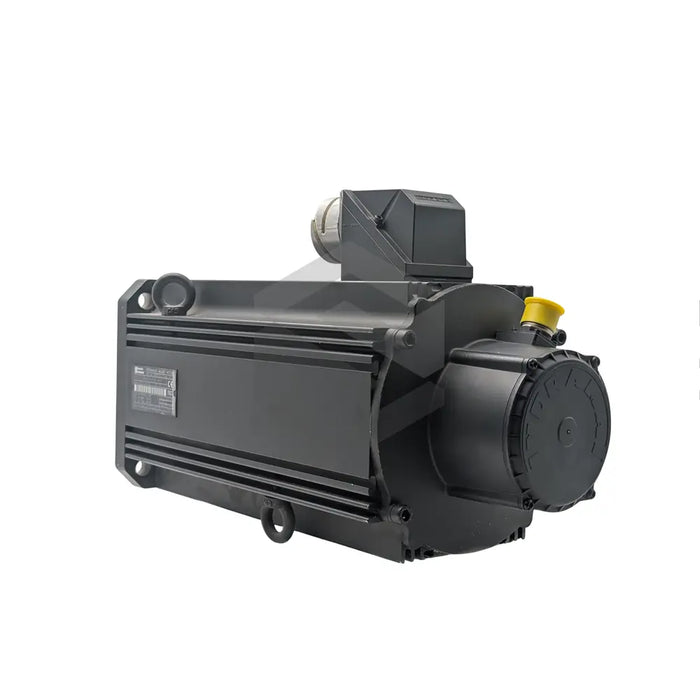

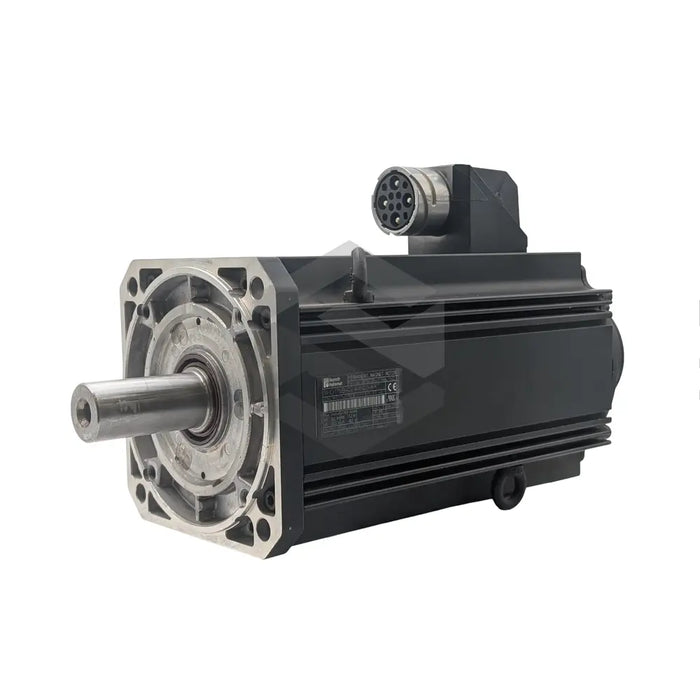

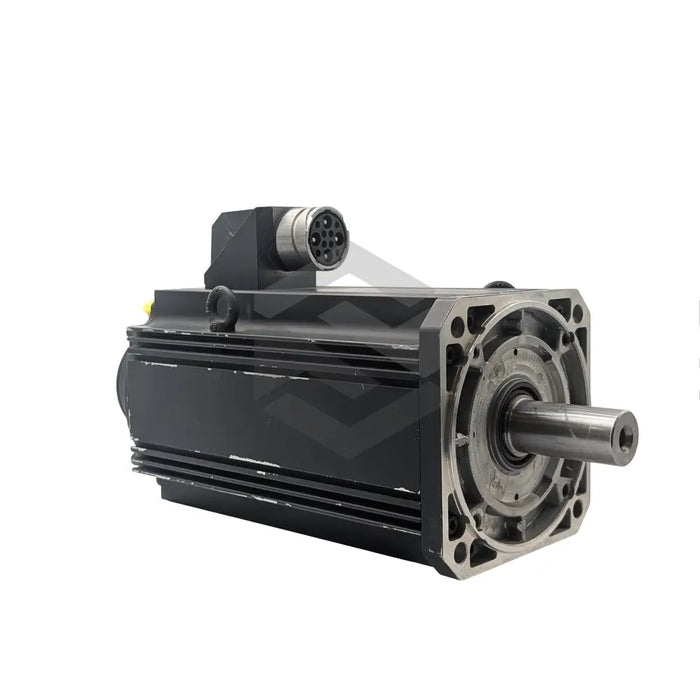

MHD115B-024-PP1-RA

by Bosch Rexroth Indramat
$7,490.45 - $7,490.45
$7,490.45
$7,490.45 - $7,490.45
$7,490.45
Available, Shipping Varies
The MHD115B-024-PP1-RA, a product of industry-leading manufacturer Bosch Rexroth Indramat, plays an integral part in the lineup of diverse technical equipment that include spindle motors, power supply modules, brake choppers, and synchronous motors. Weighing in at 40 kilograms, this advanced synchronous motor features an absolute multiturn encoder with digital servo feedback, a power connection to the right of the housing, and is cooled using natural convection. Characterized by a thermal time constant of 40 minutes when surface cooled, it delivers a rated torque of 53.1 Nm at a current consumption of 32.5 A. Its design complies with IP65 protection certification and Class F insulation, safeguarding it from dust and low water jets. Notably, the motor operates optimally with a holding brake providing 70 Nm of holding torque, consuming 1.29 A and 24 volts of current and voltage respectively. Consummate innovation and technical precision underscore its design.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: MHD115B-024-PP1-RA
  • Thermal Time Constant (Surface Cooling): 40 minutes
  • Rated Torque (Surface Cooling): 53.1 Nm
  • Current Consumption (Surface Cooling): 32.5 A
  • Motor Feedback: Absolute multiturn encoder with digital servo feedback
  • Power Connection Location: Housings right side
  • Shaft Design: Shaft with keyways and sealing ring
  • Voltage Constant: 154 V/1000min-1
  • Torque Constant: 1.7 Nm/A at 20 degrees Celsius
  • Protection Certification: IP65
  • F Class Insulation: Yes
  • Weight: 40 kilograms
  • Holding Brake: Yes
  • Holding Brake Torque: 70 Nm
  • Holding Brake Current Consumption: 1.29 A
  • Holding Brake Voltage Consumption: 24 volts
  • Rated Current: 8.2 A
  • Rated Frequency: 133 Hz
  • Torque (Natural Convection): 17.9 Nm
  • Temperature (Natural Convection): 60 K
  • Winding Inductance: 5.3 mH
  • Resistivity: 0.36 ohms
  • Thermal Time Constant (Natural Cooling): 100 minutes
