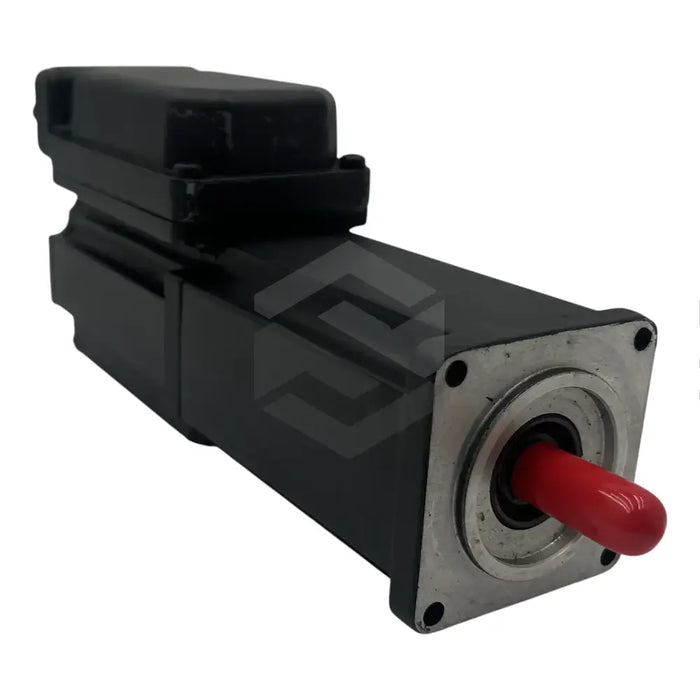

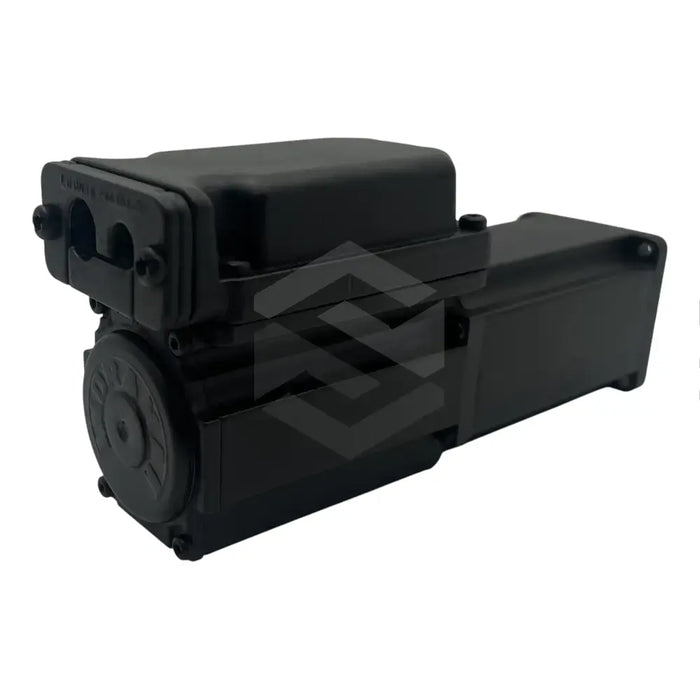

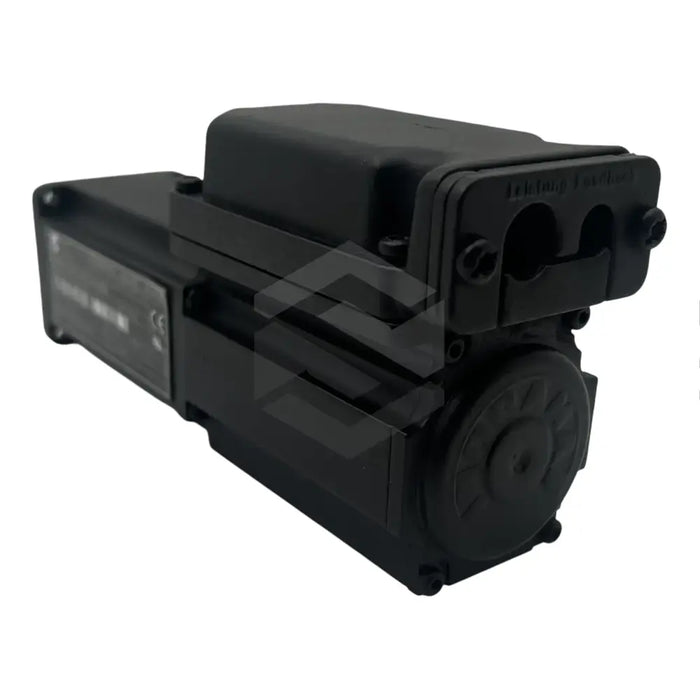

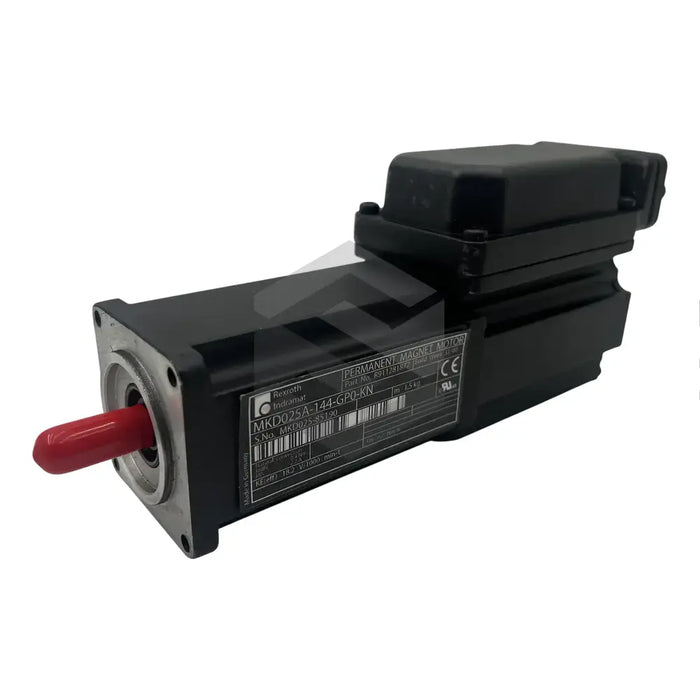

series image of MKD025A-144-GP0-KN

MKD025A-144-GP0-KN

by Bosch Rexroth Indramat
$3,720.23 - $3,720.23
$3,720.23
$3,720.23 - $3,720.23
$3,720.23
In Stock, Ships 3 - 5 Days
The MKD025A-144-GP0-KN, an AC synchronous servo motor from Indramat's MKD series, demonstrates impeccable reliability, affordability, and efficiency. Equipped with an output shaft inclusive of a keyway and sealing ring, the motor houses a winding code of 144, a terminal box to the rear and does not feature a blocking brake. With a flange size of 54 mm and a centering diameter of 40 mm, it also has a motor length of 0.4 nm. Compatible with most Indramat drive controllers, it provides excellent performance for food services and packaging industries. The motor, which boasts a peak current of 10 A and an idle current of 2.2 A, achieves a maximum speed of 9000 RPM and a rated speed of 5000 RPM. Rated for an ambient temperature of up to 40 degrees Celsius, the motor is robustly built but not field serviceable. With accurate mounting, it complies with IP65 protection standards indicating its water and dust resistance.
30 Day Warranty
Technical Specifications
  • Product Type: Servo Motor
  • Manufacturer: Indramat
  • Series: MKD
  • Model: MKD025A-144-GP0-KN
  • Keyway: Yes
  • Sealing Ring: Yes
  • Housing: Regular with Terminal Box
  • Winding Code: 144
  • Blocking Brake: No
  • Flange Size: 54mm
  • Centering Diameter: 40mm
  • Motor Length: 0.4 nm
  • Compatible Controllers: Indramat Drive Controllers
  • Applications: Industrial, Food Service, Packaging
  • Peak Current: 10A
  • Idle Current: 2.2A
  • Maximum Speed: 9000 rpm
  • Rated Speed: 5000 rpm
  • Ambient Temperature: Up to 40C
  • Rated Frequency: 250 Hz
  • Rated Voltage: 97 V
  • Weight: 1.5 kg (excluding blower unit)
  • Protection: IP65 (if cables are mounted correctly)
