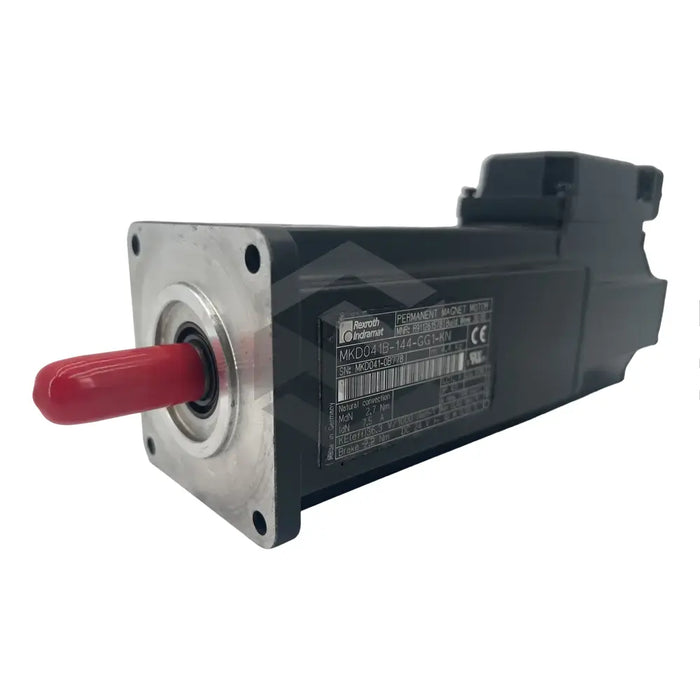

product Main (Front Left) image of MKD041B-144-GG1-KN

MKD041B-144-GG1-KN

by Bosch Rexroth Indramat
$1,200.00 - $1,200.00
$1,200.00
$1,200.00 - $1,200.00
$1,200.00
In Stock, Ships Today
The Bosch Rexroth MKD041B-144-GG1-KN motor, a product of advanced engineering, features drive controllers, synchronous motors, inverter units, and specialized power cables. The rated voltage of the motor varies from 115V to 170V at a frequency of 150Hz to 225Hz. It operates at a rated power of 0.52 to 0.88 KW and current of 2.8 to 3.0A, delivering a rated torque of 1.4-1.5Nm at a speed of 3000-4500Nm. Its optimal performance is obtained in natural cooling with a thermal time constant of 30 minutes and max torque of 11.3Nm. With its mass of 4.4kg, it should be stored and transported at -20 to +80°C for preserving its integrity. Notably, this motor sustains at a maximum altitude of 1000m and an ambient temperature of 0°C to 40°C. Finally, it is compliant with the DIN VDE 0530 Part 1 with a class F insulation and IP65 protection category, given that all components are correctly installed.
30 Day Warranty
Technical Specifications
  • Product: MKD041B-144-GG1-KN Motor
  • Manufacturer: Bosch Rexroth
  • Type: Synchronous Motor
  • Rated Voltage: 115V-170V
  • Rated Frequency: 150Hz-225Hz
  • Rated Torque: 1.4Nm-1.5Nm
  • Rated Speed: 3000Nm-4500Nm
  • Rated Power: 0.52kW-0.88kW
  • Rated Current: 2.8A-3.0A
  • Maximum Torque: 11.3Nm
  • Rotor Inertia: 1.7 x 10-4 kgm²
  • Thermal Time Constant: 30minutes
  • Maximum Speed: 7500 min-1
  • Minimum Cross-Section Strand: 1mm2
  • Mass: 4.4kg
  • Transport and Storage Temperature: -20°C to +80°C
  • Maximum Setup Height: 1000 meters above NN
  • Permissible Ambient Temperature: 0°C to 40°C
  • Insulation Class: F per DIN VDE 0530 Part 1
  • Protection Class: IP65 with properly installed cables
