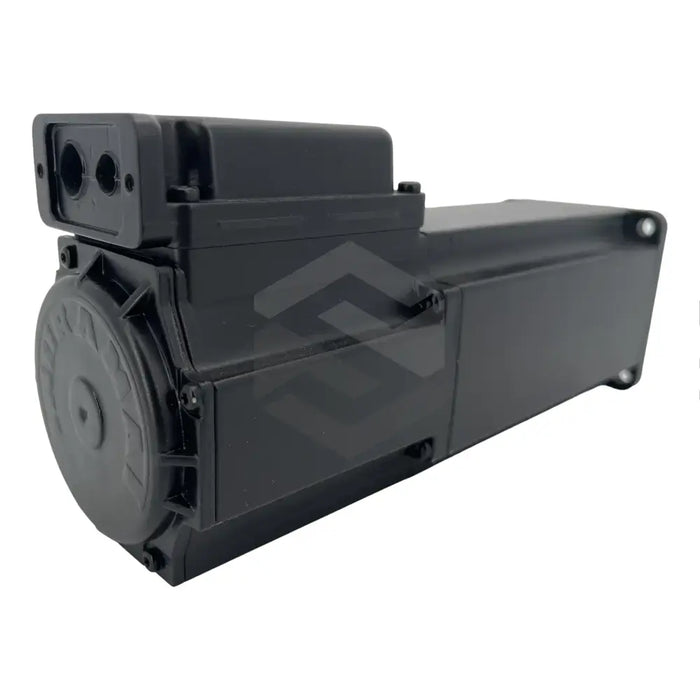

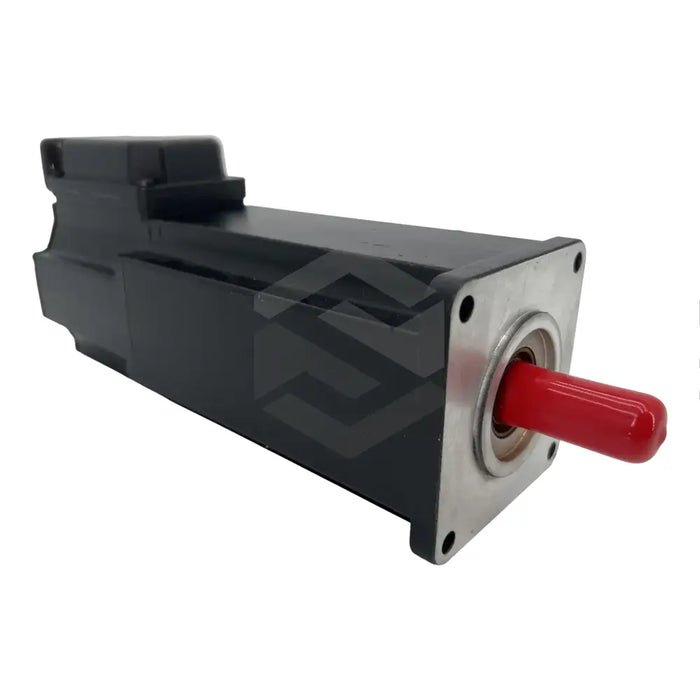

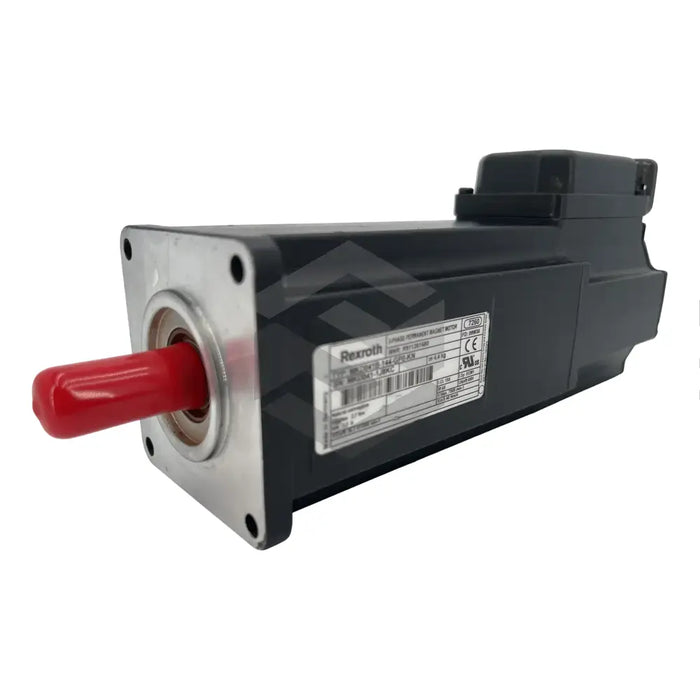

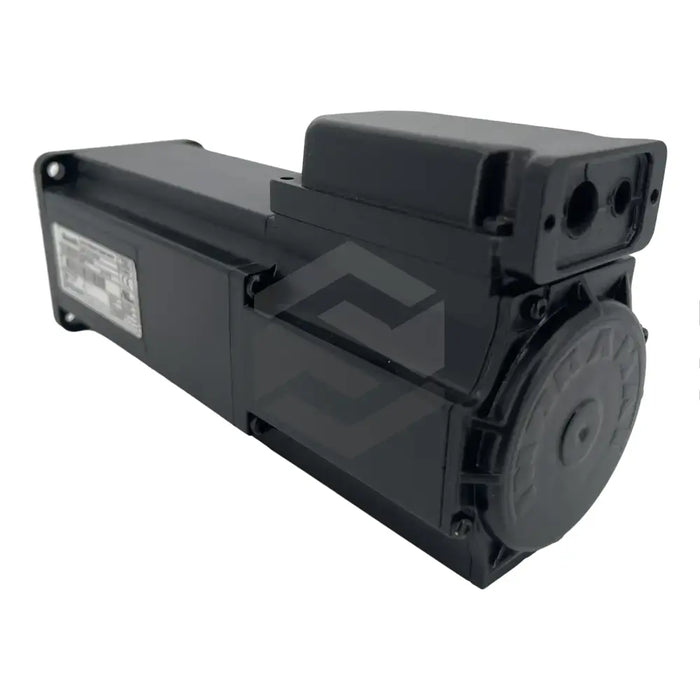

product Main (Front Left) image of MKD041B-144-GP0-KN

MKD041B-144-GP0-KN

by Bosch Rexroth Indramat
$1,987.00 - $1,987.00
$1,987.00
$1,987.00 - $1,987.00
$1,987.00
In Stock, Ships 1 - 2 Days
The MKD041B-144-GP0-KN is a cost-effective, robust super synchronous motor produced by Bosch Rexroth, perfect for a range of automation and intelligence applications. With distinct technical specs surrounding mechanical, electric and rated data parameters, users can optimize their usage. Following guidelines for installation, transportation, and storage is crucial to ensure safety and prevent damage. The motor necessitates a cooling system, employable through natural or surface techniques. Under natural cooling, it operates with a continuous current of 7.5A – 8.2A, a maximum current of 34A, and a continuous torque of 2.7 to 2.9Nm at standstill. Its winding resistance and inductance are 1.8 Ohms and 5Mh respectively, with a voltage constant of 36.3V/1000min-1 at 20°C. Rated data parameters, relevant for natural cooling appplications, include a rated speed of 3000 min-1 to 4000 min-1, a rated torque roughly at 1.4Nm to 1.5Nm, voltage and frequency at 115 to 170V and 150 to 225 Hz respectively, and a rated power of 0.52 to 0.88 KW.
30 Day Warranty
Technical Specifications
  • Product type: MKD041B-144-GP0-KN
  • Cooling system required: Yes
  • Cooling type: Natural or Surface
  • Overtemperature- Surface cooling: 60K/100
  • Overtemperature- Natural cooling: 60K to 100K
  • Continuous current at standstill: 7.5A–8.2A
  • Continuous torque at standstill: 2.7 to 2.9Nm
  • Maximum current: 34A
  • Characteristic speed: 6000min-1
  • Winding resistance at 20°C: 1.8 Ohms
  • Winding inductance: 5Mh
  • Voltage constant: 36.3V/1000min-1
  • Rated speed: 3000 min-1 to 4000 min-1
  • Rated torque: 1.4Nm to 1.5Nm
  • Rated voltage: 115 to 170V
  • Rated frequency: 150 Hz to 225 Hz
  • Rated current: 2.8 to 3.0 A
  • Rated power: 0.52 to 0.88 KW
