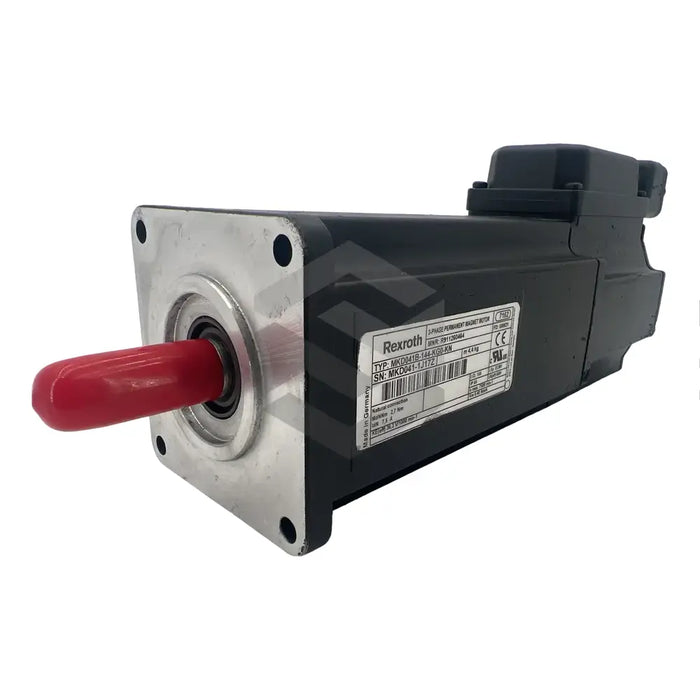

product Main (Front Left) image of MKD041B-144-KG0-KN

MKD041B-144-KG0-KN

by Bosch Rexroth Indramat
$1,854.00 - $1,854.00
$1,854.00
$1,854.00 - $1,854.00
$1,854.00
In Stock, Ships 1 - 2 Days
The MKD041B-144-KG0-KN is a synchronous motor from Bosch Rexroth's MKD series, offering a cost-effective solution for many applications like machine tools, food processing, and packaging machines due to its compatibility with various digital drive controllers. Weighing 4.4kg, the motor features IP65 protection and class F insulation, ensuring durability. It operates optimally between 0 to 40 degrees Celsius and can be stored from -20 to 80 degrees Celsius. With an altitude limit of 1000 meters above sea-level, the MKD041B-144-KG0-KN uses natural convection cooling and possesses a nominal speed of 6000min-1. Moreover, it includes a resolver feedback, a sealing ring-protected plain shaft and a 144 winding code. Its design stipulates horizontal storage in dust and vibration-free conditions, and shock-absorbing supports for safer transportation. Its installation requires 4 x M6 screws with a minimum strength of 8.8 and 10.4 tightening torque. Regular cleaning of the bearing and cooling ribs is advised for optimal performance. It adheres to CE standards and is UL recognized.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Company
  • Product Series: MKD
  • Protection Category: IP65
  • Insulation Classification: Class F
  • Weight: 4.4kg
  • Operating Temperature: 0 to 40 degrees
  • Storage Temperature: -20 to 80 degrees
  • Maximum Setup Height: 1000 meters above sea level
  • Cooling System: Natural convection
  • Nominal Speed: 6000min-1
  • Peak Current: 34A
  • Winding Inductance: 5mH
  • Pole Pairs: 3
  • Rated Speed: 4500prm
  • Rated Torque: 1.5Nm
  • Rated Current: 3A
  • Rated Power: 0.88kW
  • Rated Voltage: 170V
  • Feedback System: Integrated multiturn absolute encoder
  • Shaft Type: Plain with sealing ring
  • Winding Code: 144
  • Mounting Screws: 4 x M6
  • Tightening Torque: 10.4
  • Screw Minimum Strength: 8.8
  • Certifications: CE, UL recognized
