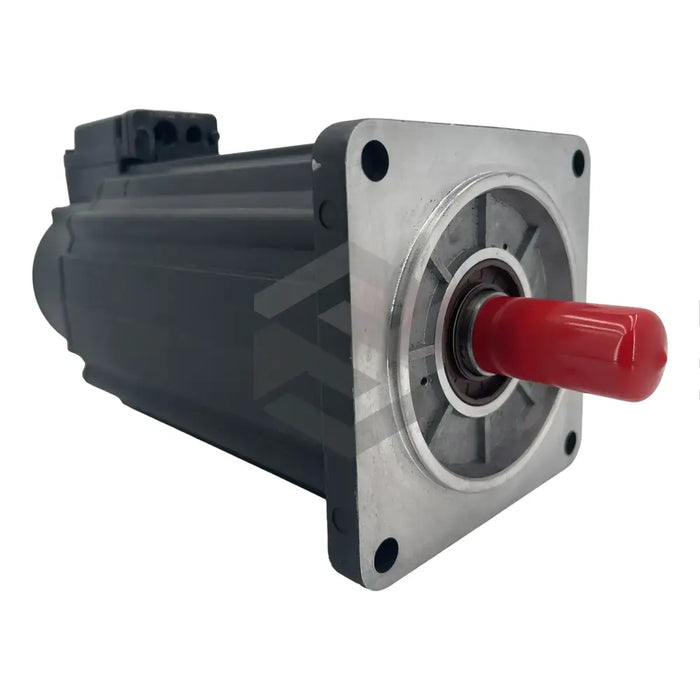

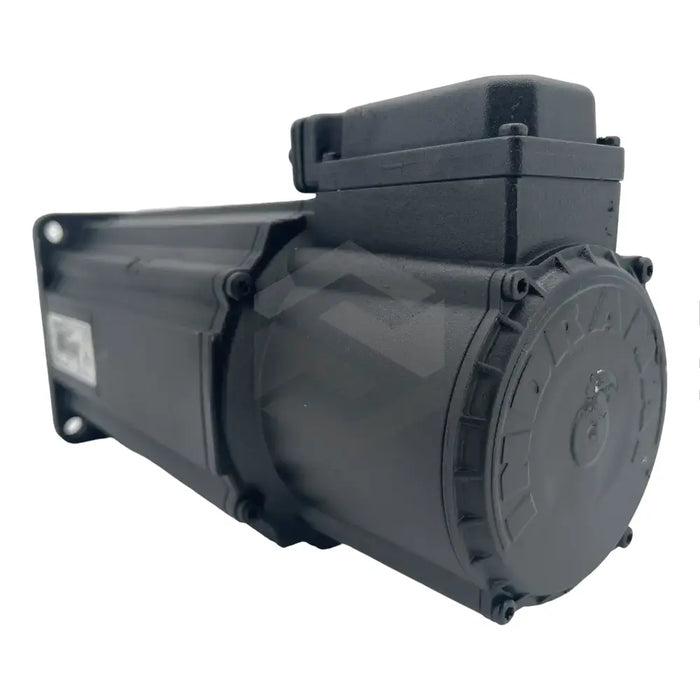

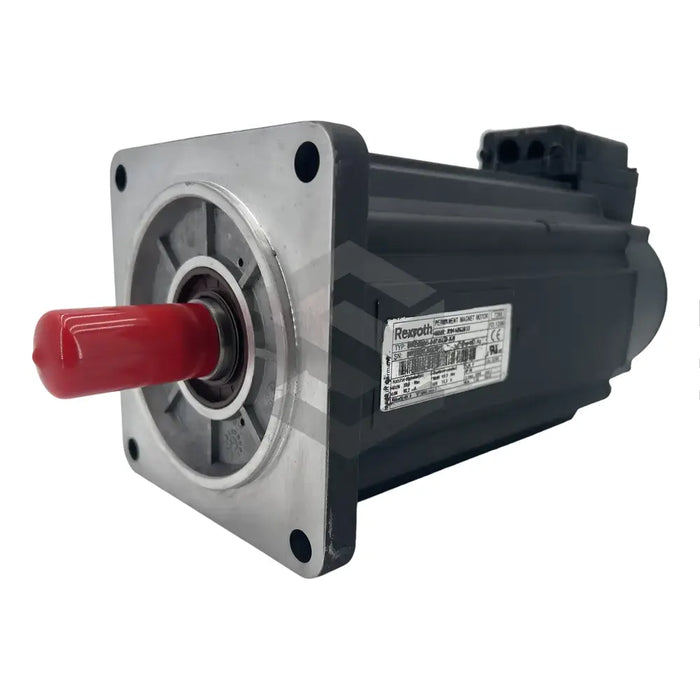

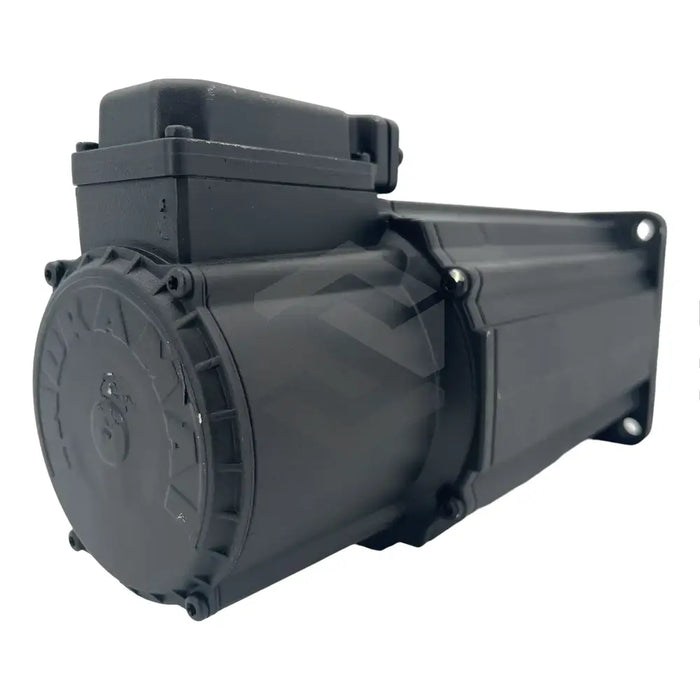

product Main (Front Left) image of MKD090B-047-KG0-KN

MKD090B-047-KG0-KN

by Bosch Rexroth Indramat
$4,350.00 - $4,350.00
$4,350.00
$4,350.00 - $4,350.00
$4,350.00
In Stock, Ships Today
The MKD090B-047-KG0-KN is an industrial-grade, brushless digital servo motor, which can be synced with a suitable Rexroth digital drive controller to create a versatile and cost-effective automation system. It has a characteristic speed of 3200 rpm and a rated speed of 3500 rpm. The motor delivers a maximum torque of 12 Nm during natural cooling mode, or 15.0 Nm during surface cooling mode, with a radial cooling device available for extreme conditions. The motor operates at a nominal voltage of either AC 230 ±10% or AC 115 ±10%. The feedback mechanism operates on an inductive principle, achieving a system accuracy of ±8 angle minutes and position resolution of up to 32768 rotations, thanks to the integrated absolute encoder. This model does not include a holding brake, which can be procured separately. The motor features a larger terminal box for easy-to-access connections. Its 140mm frame meets IP65 requirements, with a centering diameter of 110mm. The motor has pre-greased, maintenance-free bearings.
30 Day Warranty
Technical Specifications
  • Product Type: Digital Servo Motor
  • Brand: Rexroth
  • Motor Model: MKD090B-047-KG0-KN
  • Characteristic Speed: 3200 rpm
  • Rated Speed: 3500 rpm
  • Maximum Torque (natural cooling): 12 Nm
  • Maximum Torque (surface cooling): 15.0 Nm
  • Rated Nominal Voltage: AC 230 ±10% or AC 115 ±10%
  • Feedback Mechanism: Inductive Principle
  • System Accuracy: ±8 angle minutes
  • Position Resolution: Up to 32768 rotations
  • Holding Brake: Not integrated, available separately
  • Motor Connections: Sealed larger-than-usual terminal box
  • Maintenance: Pre-greased, maintenance-free bearings
  • Frame Size: 140 mm
  • Centering Diameter: 110 mm
  • Compliance: IP65 requirements
