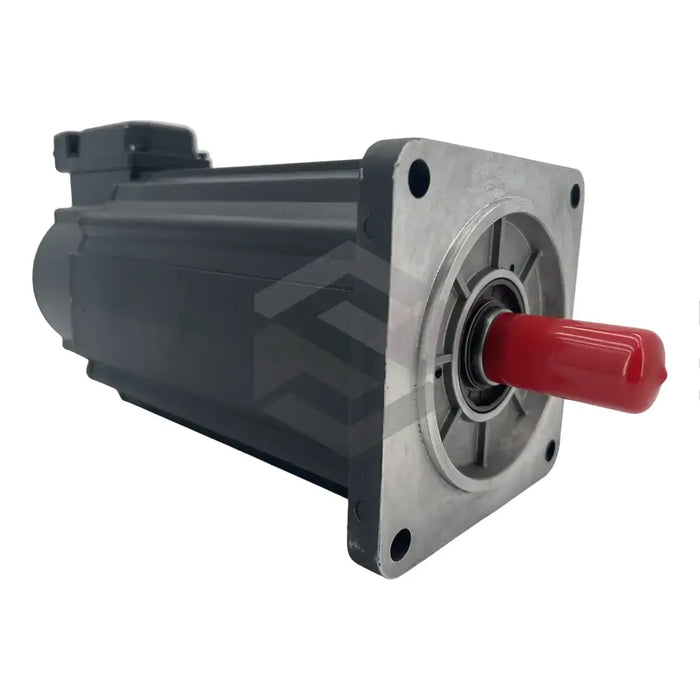

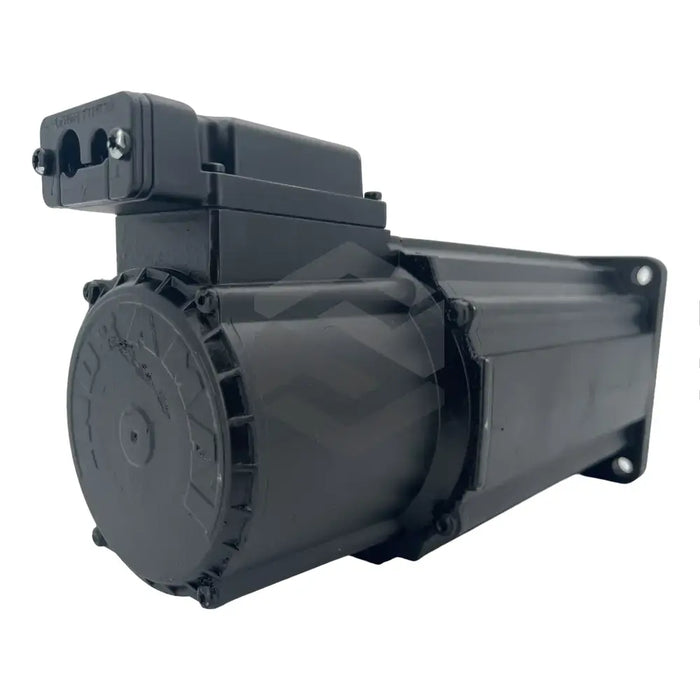

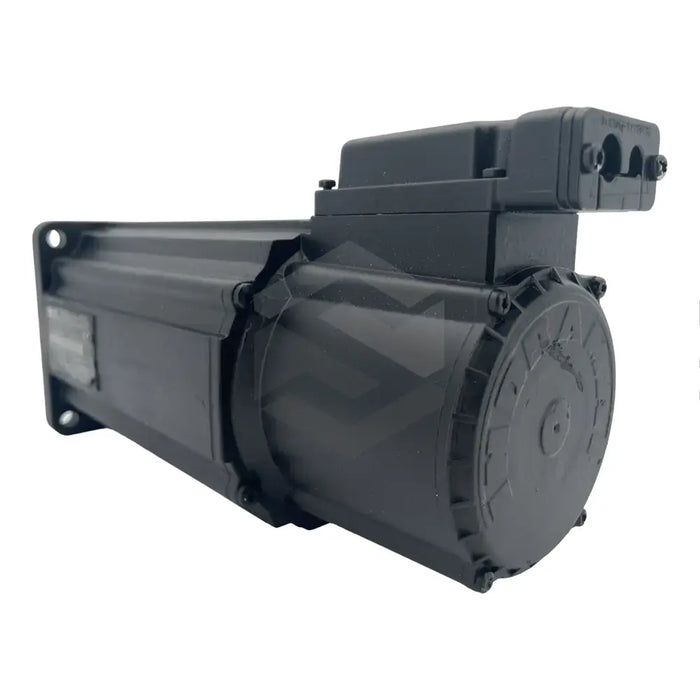

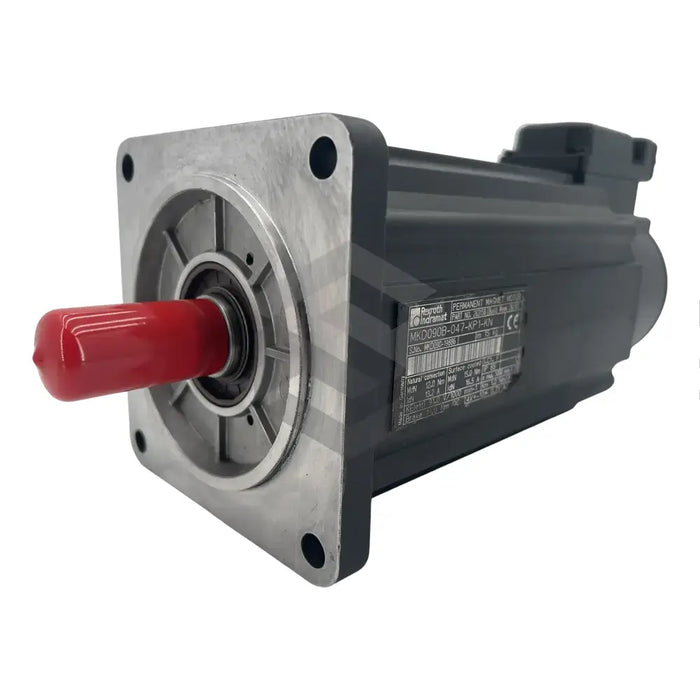

product Main (Front Left) image of MKD090B-047-KP1-KN

MKD090B-047-KP1-KN

by Bosch Rexroth Indramat
$4,057.43 - $4,057.43
$4,057.43
$4,057.43 - $4,057.43
$4,057.43
In Stock, Ships Today
Rexroth's MKD090B-047-KP1-KN Motors are created with the latest technology to guarantee high operational reliability, even under harsh environmental conditions due to its IP65 protection level. These motors come with permanent magnets and sophisticated electronic commutation to allow minimum inertia masses and high speed of up to 3200/min. With a motor length of type B (12.0Nm) and a winding code of 47, it delivers a continuous torque of 12.0Nm and a current of 17.2A at standstill. Moreover, the shaft is designed according to DIN 6885-1 and includes a sealing ring preventing liquid ingress. It has resolver feedback with an integrated multi-turn absolute encoder and natural cooling housing, maintaining optimum temperature. It offers versatile mounting options, as well as output directions. Capable of functioning within an operational ambient temperature range of 0-40°C and storable up to 80°C, this motor presents efficiency and easy operation.
30 Day Warranty
Technical Specifications
  • Technology Adopted: Rexroth latest technology
  • Product Design: High operational reliability and IP65 degree of protection
  • Motor Model: MKD090B-047-KP1-KN
  • Motor Characteristics: Low inertia masses, high speed (up to 3200/min)
  • Motor Length: 12.0Nm
  • Winding Code: No 47 assigned
  • Continuous Torque: 12,0Nm
  • Current at stand-still: 17.2 A
  • Driven Shaft: Key as per DIN 6885-1 with Shaft sealing ring
  • Motor Feedback: Resolver feedback type with integrated multi-turn absolute encoder
  • Housing: Natural cooling mode
  • Rated Speed: 3500 rpm
  • Torque: 9.9 Nm
  • Mounting Options: Multiple orientations and output direction options
  • Operational Ambient Temperature: 0 to 40 °C
  • Storage Temperature: Can be stored up to a temperature of 80°C
  • Efficiency: Highly efficient and easy to operate
