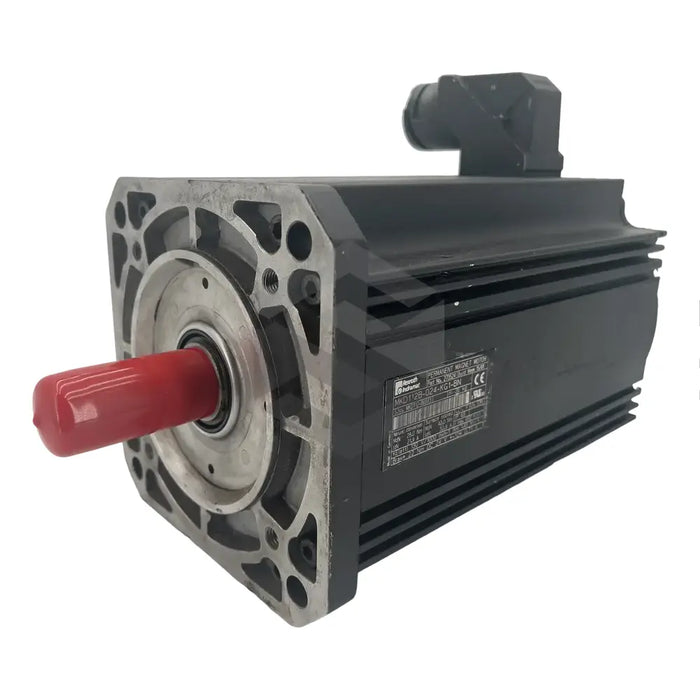

product Main (Front Left) image of MKD112B-024-KG1-BN

MKD112B-024-KG1-BN

by Bosch Rexroth Indramat
$4,452.00 - $4,452.00
$4,452.00
$4,452.00 - $4,452.00
$4,452.00
In Stock, Ships Today
The Bosch Rexroth Indramat MKD112B-024-KG1-BN is a synchronous motor belonging to the MKD motor family. It is significantly versatile, allowing installation in any desired orientation, given proper alignment and mounting. Weighing around 34kg, it features a 22Nm holding brake and a resolver feedback embedded encoder system for positioning and speed control. The bolting connectors must be tightened manually for optimal motor encoder functioning. The motor ensures a durable, maintenance-free operation; however, the cooling ribs need periodic cleaning to facilitate heat dissipation. With stator windings drawing heat away from the housing, it protects the motor from overload-related damage. Additional cooling is achievable through attachable blower units, operating independently of the drive controller. Power connectivity is provided on Side B, with the direction subject to change during assembly. The MKD motor utilizes a plain, adequately lubricated shaft with a DIN3760 design A shaft sealing ring, running at a constant 2000 RPM and a rated speed of 3500 RPM. Its resilient, single-design housing is coated in weathering-resistant, black prime paint.
30 Day Warranty
Technical Specifications
  • Product Type: MKD112B-024-KG1-BN by Bosch Rexroth Indramat
  • Family: MKD synchronous motors
  • Weight: Approximately 34 kilograms
  • Holding Brake Capacity: 22Nm
  • Motor Encoder System: Resolver feedback with integrated multi-turn absolute encoder
  • Cleaning Requirement: Regular cleaning of cooling ribs
  • Temperature Sensor Location: Motor windings
  • Additional Cooling: Attachment of blower units optional
  • Power Connector Location: Side B (can be changed during assembly)
  • Shaft Type: Plain shaft with DIN3760 design A type sealing ring
  • Revolution Rate: 2000 revolutions per minute (constant)
  • Rated Speed: 3500 revolutions per minute
  • Design Availability: Single design
  • Paint Type: Black prime resistant to lye, weathering, and chalking.
