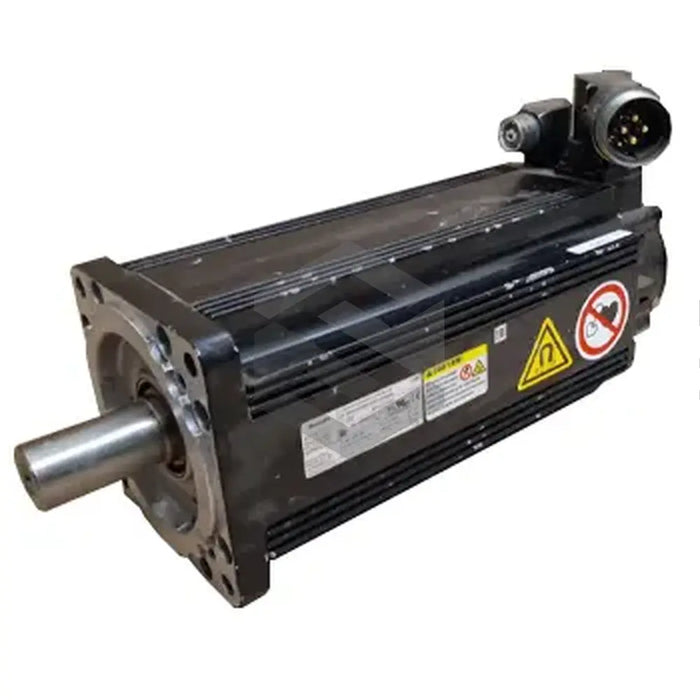

MSK071E-0300-FN-M1-AG2-NNAN
The MSK071E-0300-FN-M1-AG2-NNAN is a quality industrial part created by Bosch Rexroth Indramat, a distinguished manufacturer of industrial components. This model is an IP65-certified synchronous motor that generates a constant torque of 23 Nm, consumes 12.5 A at 60 K, and operates optimally between 0 to 40 degrees Celsius and at altitudes up to 1000 meters. Equipped with a sealing ring on its plain output shaft, it prevents lubricants from slipping onto the shaft. It features a multi-turn absolute hiperface encoder with a thermal time constant of 19.8 minutes. The motor peaks at 84 Nm torque, 56.3 amps current, and has a maximum rotational speed of 4200 RPM. It weighs 23.5 kg, has a sound pressure level of 75 decibels, and employs an A-side power connector. The unit also includes a holding brake with 30 Nm torque, and the power discharge capacity is 9.3 nF with a voltage constant of 126.4 V/1000min-1.
