MSK100B-0200-NN-M1-AP2-NNNN
Original price
$3,448.36
-
Original price
$3,448.36
Original price
$3,448.36
$3,448.36
-
$3,448.36
Current price
$3,448.36

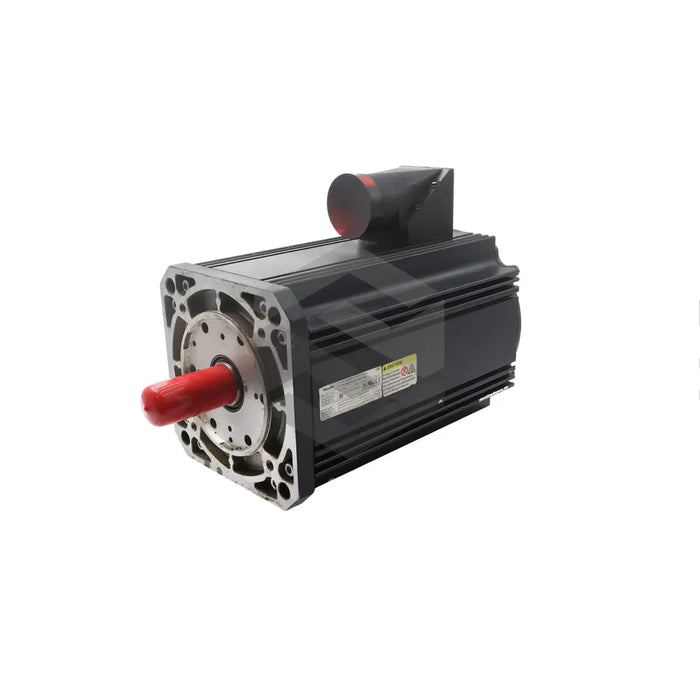

The MSK100B-0200-NN-M1-AP2-NNNN is a state-of-the-art synchronous servo motor, from Bosch Rexroth's MSK series. Engineered to meet standard servo motor requirements and beyond, this model is robust yet versatile, due to expandability options. With cooling via natural convection, the generated heat is efficiently dissipated to the ambient air or conducted to the motor's housing. The motor casing, coated with a black, epoxy resin-based varnish, offers substantial protection against various corrosive agents, including seawater, dilute acids, and current mineral oils. Certified with an IP 65 rating, this servo motor is dustproof and touchproof. It also sports a multiturn absolute encoder for accurate position detection and speed control, maintaining its recorded absolute position even post shut-down. With 2,000 RPM as its nominal speed and a max torque of 102.0Nm, it can reach a top speed of 4,100 RPM, while the rotor's inertia sits at 0.01920 kgm2.
30 Day Warranty
Technical Specifications
