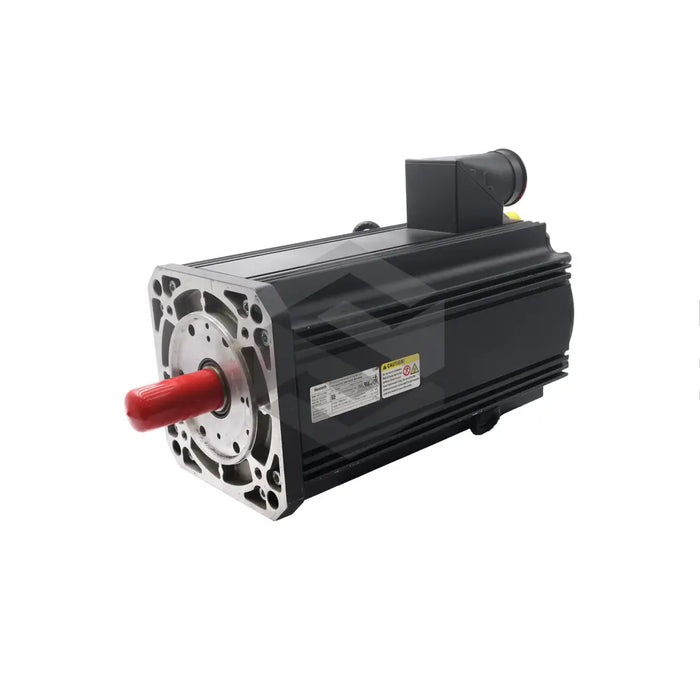

series image of MSK100C-0300-NN-S3-BP0-NNNN

MSK100C-0300-NN-S3-BP0-NNNN

by Bosch Rexroth Indramat
$25,200.00 - $25,200.00
$25,200.00
$25,200.00 - $25,200.00
$25,200.00
In Stock, Ships 3 - 5 Days
The MSK100C-0300-NN-S3-BP0-NNNN industrial servo motor, manufactured by Bosch Rexroth Indramat, is designed for high-performance applications due to its precision and durability. It has a sealed motor housing and cable connectors, resulting in an IP65 ingress protection rating, which allows for operation in various conditions. Optimized for an elevation of under 1000 meters and an ambient temperature between 0 and 40°C, the motor can hit a rated speed of 4500 RPM with a sound level less than 75 dB. Its cooling system makes use of both natural convection and surface cooling, with varying continuous torque and current based on cooling method. Additionally, the motor has an integrated capacitive single-turn encoder supporting the Hiperface protocol. Note that it does not include an optional holding brake. Only trained personnel should operate this motor.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: Industrial Servo Motor
  • Model: MSK100C-0300-NN-S3-BP0-NNNN
  • Ingress Protection Rating: IP65
  • Elevation Limit: 1000 meters
  • Temperature Operating Range: 0 to 40 degrees Celsius
  • Rated Speed: 4500 RPM
  • Operating Sound Level: less than 75 dB
  • Cooling Methods: Natural Convection and Surface Cooling
  • Continuous Torque with Natural Convection (60K): 38 Nm
  • Continuous Current with Natural Convection (60K): 21.6 Amps
  • Continuous Torque with Natural Convection (100K): 43.5 Nm
  • Continuous Current with Natural Convection (100K): 27 Amps
  • Continuous Torque with Surface Cooling: 57 Nm
  • Continuous Current with Surface Cooling: 32.4 Amps
  • Encoder Type: Integrated Capacitive Singleturn Encoder
  • Encoder Protocol: Hiperface
  • Encoder Signal Periods: 16
  • Electrical Connection Location: Side B
  • Holding Brake: Not Available.
