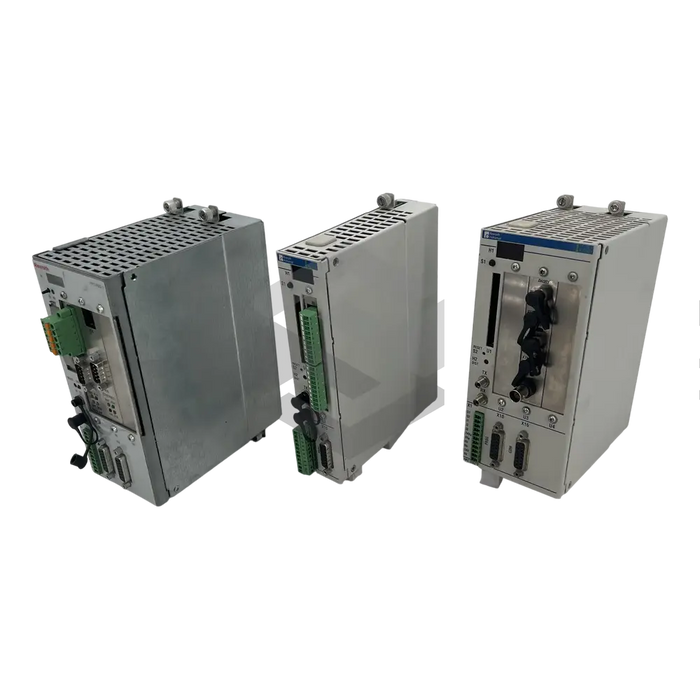

S image of PPC-R22.1

PPC-R22.1

by Bosch Rexroth Indramat
$10,535.78 - $20,083.85
$20,083.85
$10,535.78 - $20,083.85
$20,083.85

In Stock, Ships 1 - 3 Days

This is a Bosch Rexroth PPC-R22.1 CNC module designed for industrial use. This double-wide module requires two slots in the module rack for installation and comes with a separate slot for fitting a serial COM interface set at 9,600 Baud, 1 stop bit, 8 data bits, no parity, and XON/XOFF protocol. It can be operated with MTC200 control unit firmware and additional hardware. Battery substitution must be completed with the power supply switched on to avoid data loss in the SRAM. The module has a SERCOS interface with H2 distortion display and non-functioning X10 serial interface electrically isolated. It can operate up to 15 I/O modules and work with the MTS-R01.2 PLC assembly via the manufacturer's local bus. For safety and efficiency, it should only be used within stable temperature environments by qualified personnel, and not for manufacturer-unspecified applications or near high-frequency radio and remote control equipment.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Mounting Slots

2

Housing Type

Double-Wide

Interface

Serial COM

Interface Speed

9600Baud

Stop Bit

1

Data Bits

8

Parity

None

Interface Protocol

XON/XOFF

Control Unit Firmware

MTC200

Battery Slot

On top under plastic cover

Distortion Display

H2 for SERCOS interface

I/O Modules Support

Maximum of 15

Communicating Assembly

MTS-R01.2 PLC assembly via local bus

CPU Firmware Tasks

Tool management, block processing, and communication with the PLC

Application

Part of Rotary Transfer Machines

Discharge Current

High if improperly used

Voltage

High if improperly used

Axis Interpolation

Associated with APR firmware component

SERCOS Interface Communication

Associated with APR firmware component

Temperature Fluctuation Resistance

Low

Connection Cable Cross-Sectional Area

0.75 to 1.5mm2

Radio and Remote Control Equipment Proximity

Not Recommended
