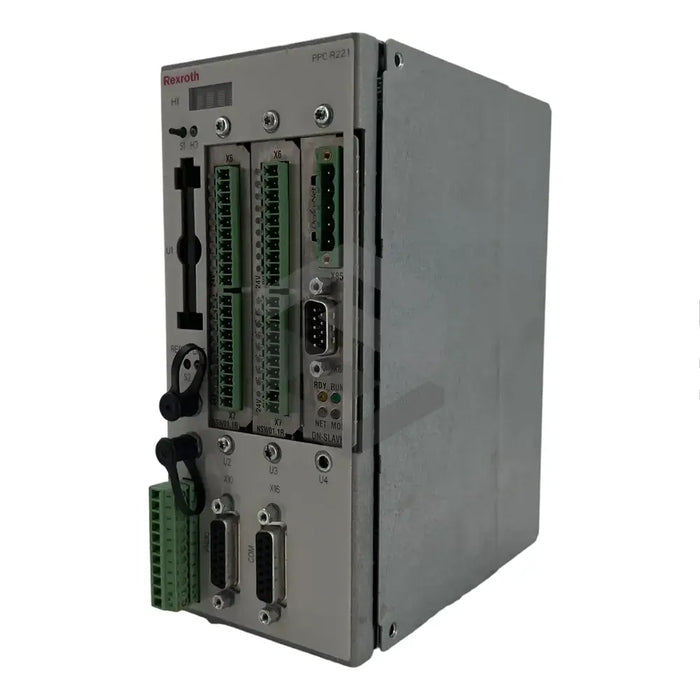

product Main (Front Left) image of PPC-R22.1N-T-N1-N2-V2-FW

PPC-R22.1N-T-N1-N2-V2-FW

by Bosch Rexroth Indramat
Request a quote
The PPC-R22.1N-T-N1-N2-V2-FW is a versatile controller manufactured by Bosch Rexroth Indramat. Designed for IP 20 rated housing, it can function as a Numerical Control (NC) or Programmable Logic Controller (PLC), depending on the firmware. The device measures 214mm in height, 83.7mm in width, and 165mm in depth, and weighs approximately 1.3 kg. It necessitates proper grounding through a wire measuring at least 6 mm2 in cross-sectional area. The controller lacks an integrated memory module but provides an Ethernet interface. It requires a 24 Volt DC power supply able to provide 1.2 Amps. Enhanced connectivity is offered through RS 232/RS 422/RS 485 programming and general serial interfaces, and an Indramat BT bus interface. Programmable via Bosch's VisualMotion Toolkit, the controller is customizable with optional DeviceNet slave, PLS master, and PLS slave modules. Installation and setup must be by trained personnel to prevent possible injury or equipment damage.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Controller
  • Model: PPC-R22.1N-T-N1-N2-V2-FW
  • Ratings: IP 20
  • Dimensions: 214mm height, 83.7mm width, 165mm depth
  • Weight: 1.3 kilograms
  • Grounding Requirement: Minimum 6 mm2 cross-sectional area wire
  • Memory: No integrated memory module
  • Interface: Integrated Ethernet, RS 232 / RS 422 / RS 485 programming, RS 232 / RS 422 / RS 485 general serial, Indramat BT bus
  • Power Requirement: 24 Volts DC, 1.2 Amps
  • Cable Requirement: 0.75 to 1.5 mm2 cross-sectional area
  • Tolerance: Maximum 5% ripple on power input
  • Programming: PC based software VisualMotion Toolkit
  • Optional Modules: DeviceNet slave, PLS master, PLS slave
  • Firmware: To be ordered as per customer requirements
  • Installation: To be done by trained personnel.
