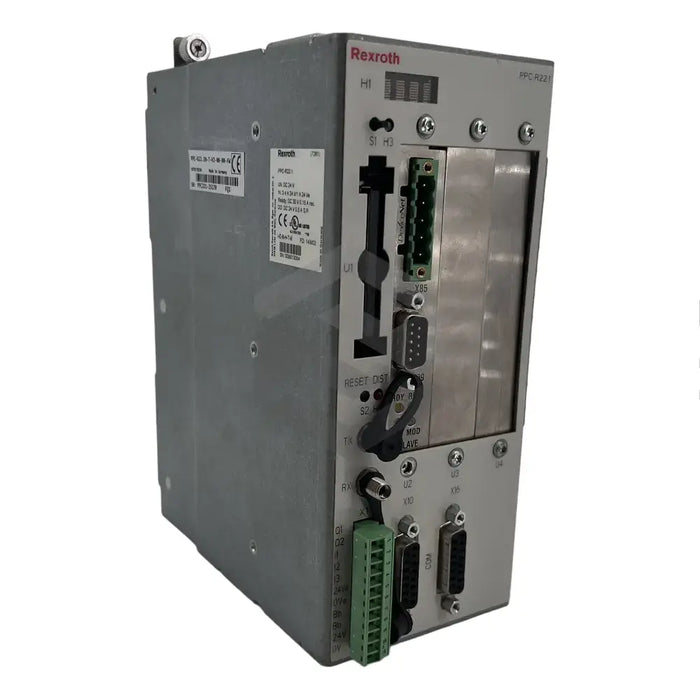

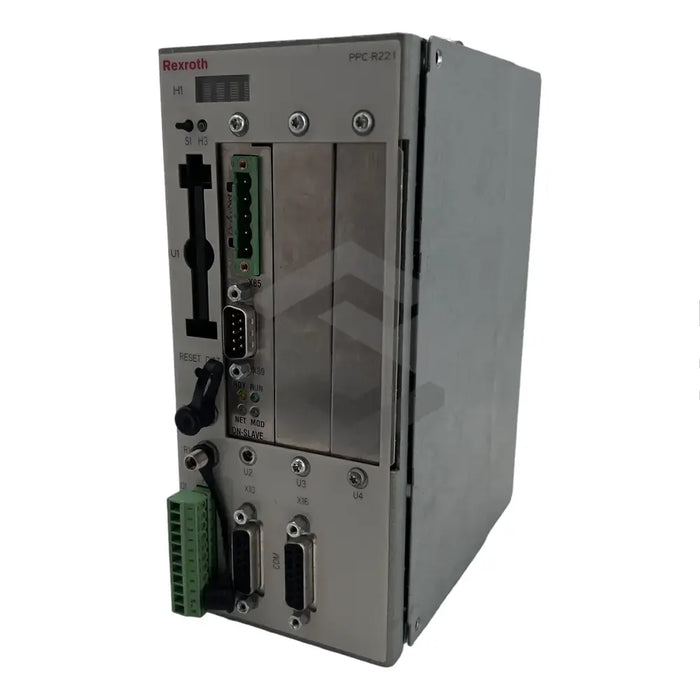

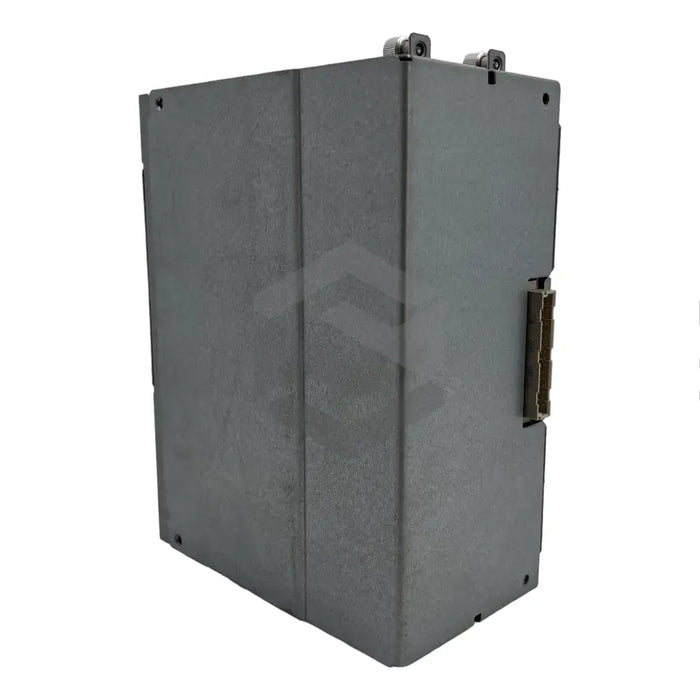

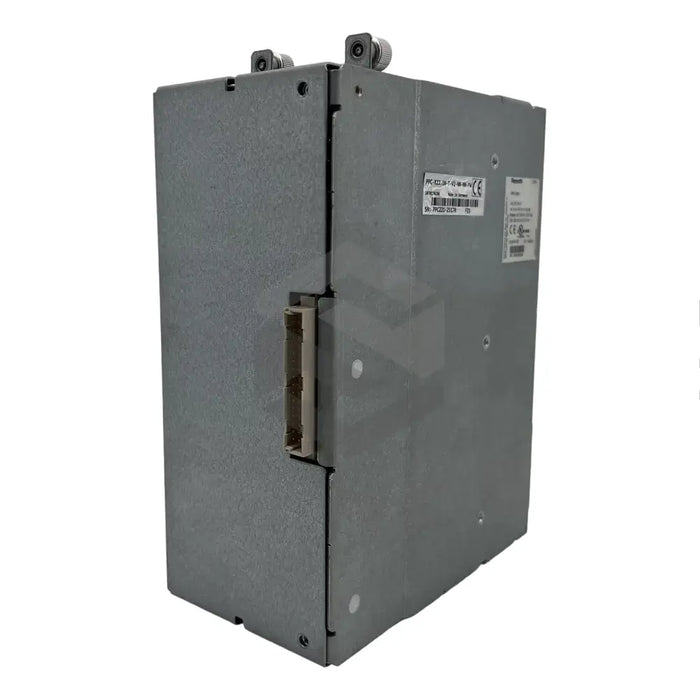

product Main (Front Left) image of PPC-R22.1N-T-V2-NN-NN-FW

PPC-R22.1N-T-V2-NN-NN-FW

by Bosch Rexroth Indramat
$17,910.00 - $17,910.00
$17,910.00
$17,910.00 - $17,910.00
$17,910.00
In Stock, Ships Today
The PPC-R22.1N-T-V2-NN-NN-FW module, developed by Bosch Rexroth Indramat, is designed for use with RECO units and comes ready to operate with pre-set jumpers. It houses a fiber optic receiver and transmitter, an H2 distortion display, a software module socket, and optional sockets for axis processor modules. Its operating parameters include a storage and transport temperature range between -25°C to +70°C, and it is essential that no condensation forms on its surface. With pre-loaded CPU firmware for various functions and APR firmware for axis operations, the module falls within EMC regulations for electrical connection points safety. It is only to be used when properly installed into a machine, and caution is advised when power supply is ON. This Bosch Rexroth Module is often used in machine tools, machining centers, and rotary transfer machines.
30 Day Warranty
Technical Specifications
  • Product Model: PPC-R22.1N-T-V2-NN-NN-FW
  • Manufacturer: Bosch Rexroth Indramat
  • Series: PPC
  • Function: CNC Module
  • Operating Requirements: No condensation on surface
  • Housing: Intended for RECO units
  • Installation Method: Mounted on a module rack
  • Connection Board: Short AKR1 or long AKR2
  • Connection Type: PLC Assembly with local bus
  • Features: Fiber optic receiver, fiber optic transmitter, H2 distortion display
  • Top Socket: For software module insertion
  • Ambient Storage and Transport Temperature Range: -25°C to +70°C
  • Optional Sockets: Three at top for axis processor modules
  • Required Component: Boot loader/monitor firmware
  • EMC Regulation Compliance: Must meet national standards
  • Safety Warning: Do not touch electrical connection when power is ON
  • Temperature Limitations: Not for use in extreme temperatures/fluctuations
  • Guards and Covers: Must be installed before operation
  • CPU Firmware Functionality: NC program processing, zero offset, tool management, block preparation
  • APR Firmware Functionality: Axis functions, SERCOS interface communication
  • Typical Applications: Rotary transfer machines, machining centers, machine tools
