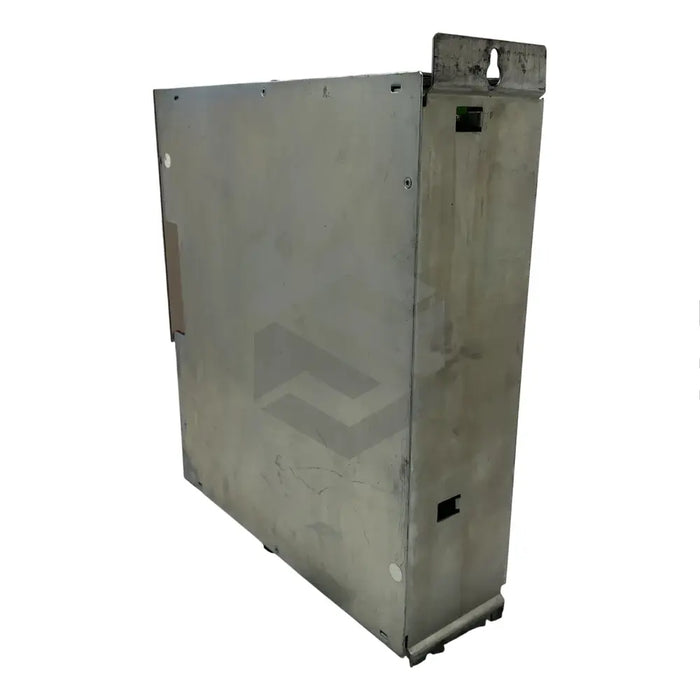

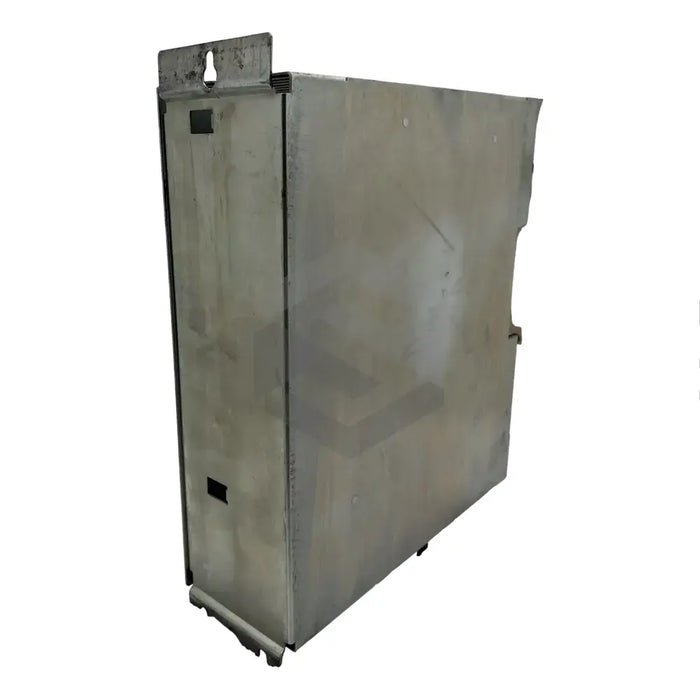

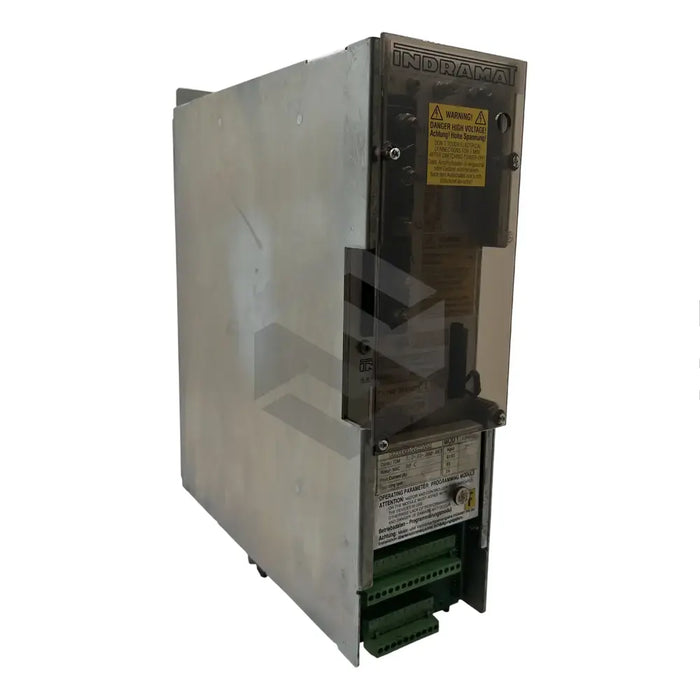

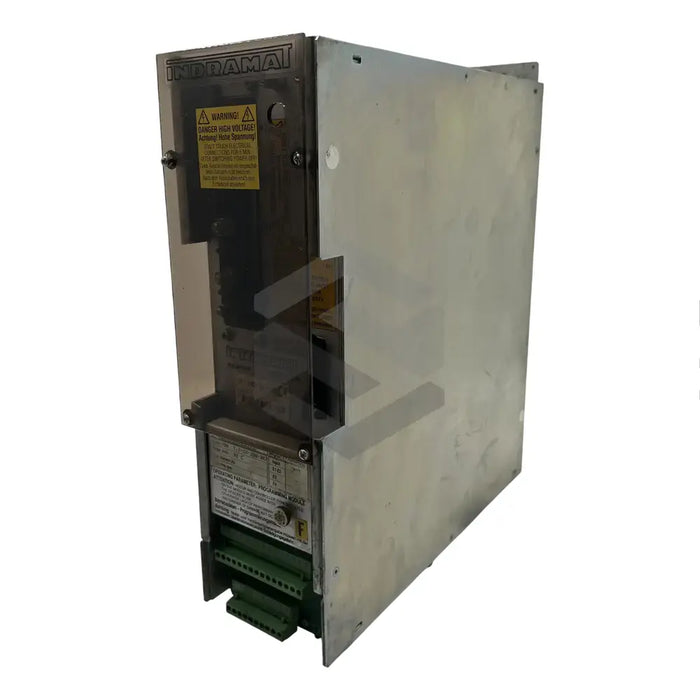

series image of TDM 1.2-030-300-W1-000

TDM 1.2-030-300-W1-000

by Bosch Rexroth Indramat
$1,834.33 - $1,834.33
$1,834.33
$1,834.33 - $1,834.33
$1,834.33
In Stock, Ships 1 - 2 Days
The TDM 1.2-030-300-W1-000, a servo drive brought to you by Bosch Rexroth Indramat, operates primarily as a variable speed drive with a predetermined maximum speed. This model 2 drive displays a capacity for brief, high acceleration moments. It comes with a built-in fan for cooling and safely operates between +5°C to +45°C. Features include a 30A current rating, 300VDC circuit voltage, and a 9kW power rating. Connection terminals X5 and X6 are available for user input/output and MAC motor feedback respectively. The unit can also function as a torque-controlled, master-slave or tandem drive. Conforming to DIN VDE 0110 specifications, the drive has Class C insulation with an IP 10 protection degree, all neatly enclosed in a sealed housing unit. Ideal for use with MAC 71 to MAC 160 three-phase motors, it is perfect for automation industries.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Drive
  • Model: TDM 1.2-030-300-W1-000
  • Configuration: Model 2
  • Type Current Rating: 30A
  • Minimum Adjustable Current: 15A
  • Link Circuit Rated Bus Voltage: 300VDC
  • Power Rating: 9kW
  • Cooling Method: Forced Ventilation (Built-in Fan)
  • Ambient Operating Temperature: +5°C to +45°C
  • High Temperature Indicator: Red colored TS LED Flashing
  • Terminal X5: User Input or User Output connection
  • Terminal X6: Feedback Connection for MAC motor
  • Torque Control: Yes
  • Functioning Modes: Master-Slave Drive or Tandem Drive
  • Insulation Category: Class C (DIN VDE 0110 spec)
  • Degree of Protection: IP 10
  • Encasement: Completely Sealed Cabinet
  • Dimensions: Base Height: 355mm, Ventilating Air Inlet and Outlet: 80mm at top and bottom
  • Intended Motor Usage: MAC 71 to MAC 160 range of three-phase synchronous servomotors
