product Main (Front Left) image of TDM 1.2-100-300-W1-220

TDM 1.2-100-300-W1-220

by Bosch Rexroth Indramat
$1,377.89 - $1,377.89
$1,377.89
$1,377.89 - $1,377.89
$1,377.89
In Stock, Ships Today

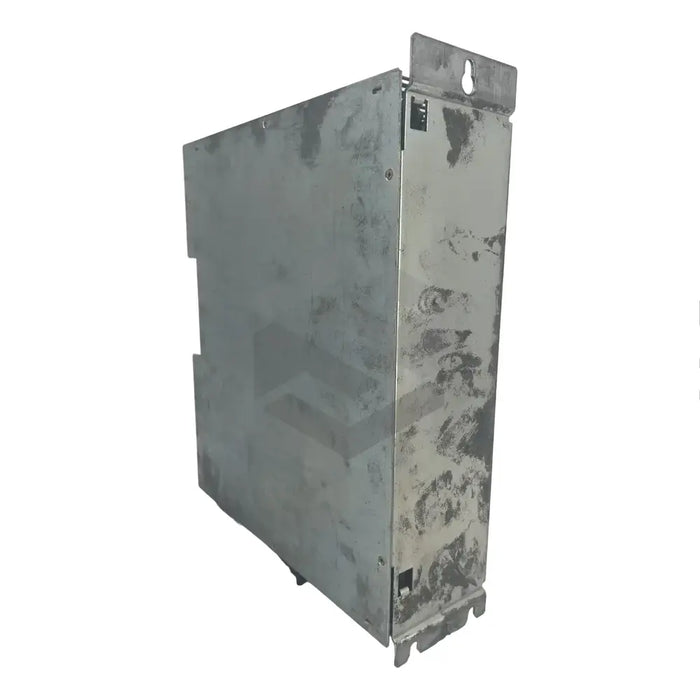

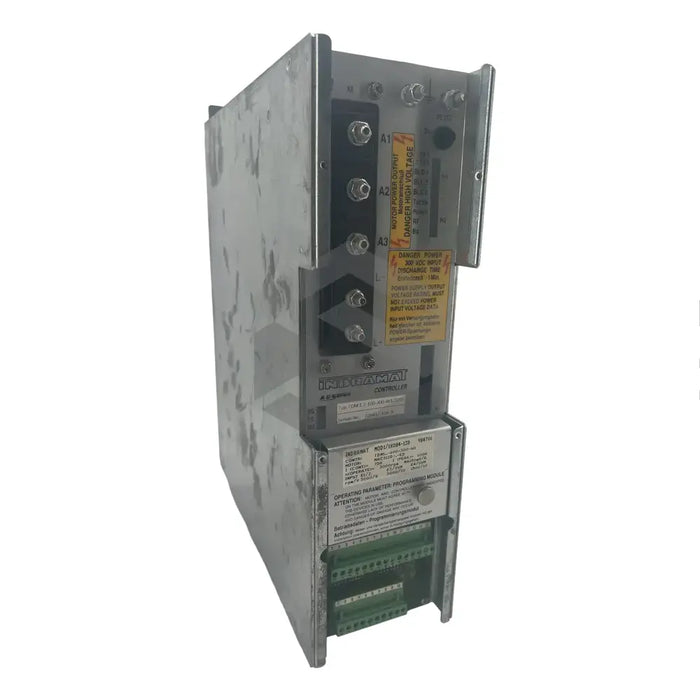

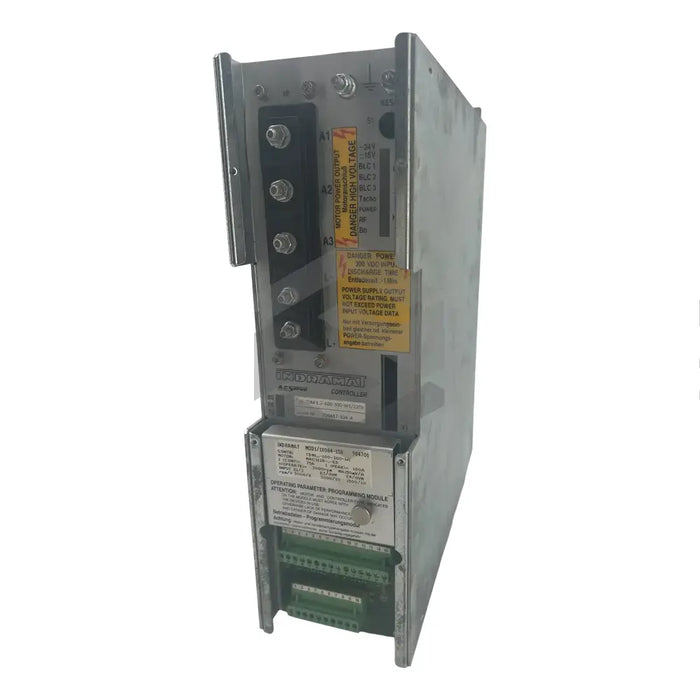

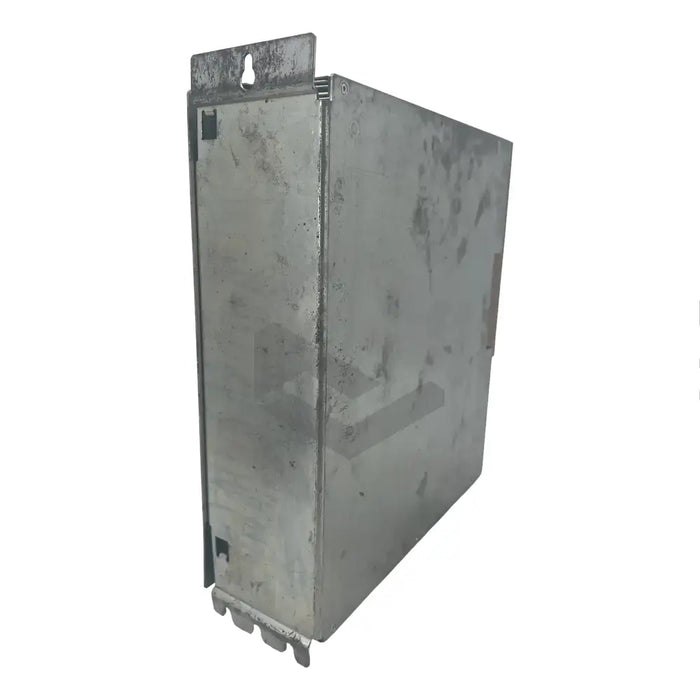

The TDM 1.2-100-300-W1-220, a modular AC Servo Drive and controller, is a reliable and efficient product by Bosch Rexroth Indramat. Designed with a model configuration of 2, it operates at a current supply of 100 Amps and 300 Volts, delivering substantial power for varied uses. The unit, which measures 15.35 x 12.6 x 4.33 inches and weighs around 24 lbs, includes a cooling fan to regulate temperature. Part of the ANAX series, this TDM drive requires minimal end-user calibration as units are factory-tuned. It is robustly built and comes with repair options offered by Servo Supplier. Besides offering torque, speed, and direction of torque control, it efficiently generates a 3-phase system from provided AC input voltage. The 'fit and forget' feature of this drive makes maintenance a rare occurrence.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Modular Controller and AC Servo Drive
  • Model Configuration: 2
  • Current Supply : 100 Amps
  • Voltage: 300 Volts
  • Dimensions: 15.35 inches x 12.6 inches x 4.33 inches
  • Weight: 24 lbs
  • Cooling System: Built-in Cooling Fan
  • Series: ANAX
  • Control Options: Torque, Speed, Direction of Torque Control, Circuit Signal Conditioning
  • Deliberate Calibration: Yes
  • Maintenance Requirements: Minimal
