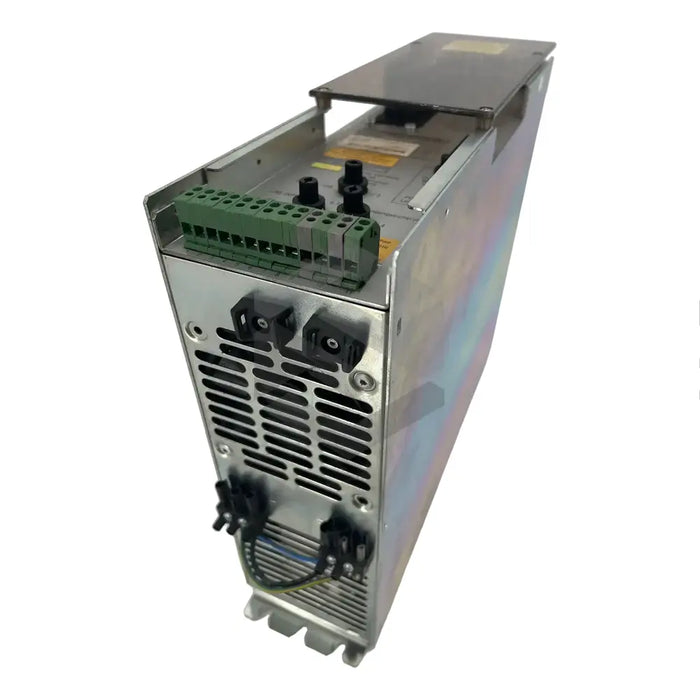

product Main (Front Left) image of TVM 2.4-050-220/300-W1/220/380

TVM 2.4-050-220/300-W1/220/380

by Bosch Rexroth Indramat
$825.00 - $825.00
$825.00
$825.00 - $825.00
$825.00
In Stock, Ships Today
The TVM 2.4-050-220/300-W1/220/380, developed by Bosch Rexroth Indramat, is a power supply module specifically designed to meet the power demands of the manufacturer's AC servo drives. This unit manages DC bus power requirements and features an automatic braking mechanism in case of failure. Equipped with an auxiliary capacitance module for energy storage, it provides a nominal DC bus voltage of 300VDC. The device's built-in blower maintains optimal operating temperature. Sporting a three-phase input voltage with a 220VAC rating, the unit also includes two terminals, L+ and L-, for DC bus connection. In-built line input fuses (rated 6.3A) secure the maximum continuous mechanical output of associated servo drives up to 4.1kW. The product also sports H3 and H4 LED displays for troubleshootings and doesn't require semiconductors. It possesses a 50A current rating and can be operated with an AC servomotor and drive from the same manufacturer to implement a modular design AC drive system.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Power Supply Module
  • Product Code: TVM 2.4-050-220/300-W1/220/380
  • Used With: AC servo drives
  • Function: Meets DC bus power requirements, dynamic braking action, prevent activation of bleeder resistor during braking
  • Nominal DC Bus Voltage: 300VDC
  • Blower: Inbuilt, for cooling during operation
  • Input Voltage: Three-phase, 220VAC rating
  • DC Bus Connection: Supported via two terminals L+ and L-
  • Fuses: Two-line input fuses, 6.3A current rating
  • Maximum Continuous Mechanical Output: 4.1kW
  • LED Displays: H3 and H4, for quick troubleshooting
  • Protection: Line input connection protected using fuses or circuit breakers
  • Current Rating: 50A type
  • Signal Voltage Transmission: Via wire ribbon cable through X1 connector
  • Use Case: Modular design AC drive system when used with AC servomotor and AC servo drive.
