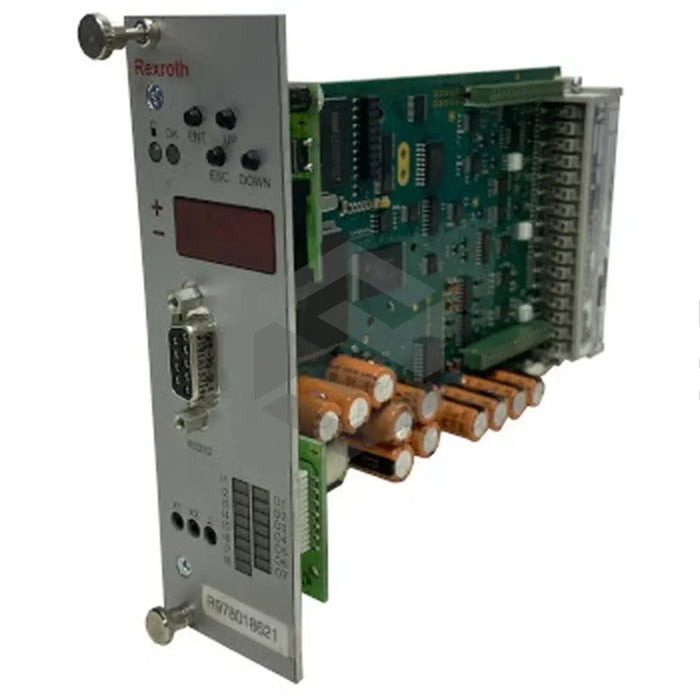

series image of VT-HACD-1-11A-V0-1-0-0

VT-HACD-1-11A-V0-1-0-0

by Bosch Rexroth Indramat
$4,274.99 - $4,274.99
$4,274.99
$4,274.99 - $4,274.99
$4,274.99
In Stock, Ships 1 - 2 Days
The Bosch Rexroth Indramat's VT-HACD-1-11A-V0-1-0-0 is a versatile digital command value and controller card. Designed to generate, link, and standardize signals, this accessory supports signal linking both input and output. It can serve as a controller card for state feedback and control loops with a PIDT1 microcontroller. Although the base unit lacks a bus interface or valve output stage, it provides access to various parameters such as position sensors, analog inputs/outputs, and control parameters. Equipped with a user-friendly front display, it allows for diagnostics, display, and parameter modification. This European format PCB is sized at 100 x 160mm, and requires a 24VDC operating voltage. Without the use of jumpers, this unit can be programmed via the PC BODAC program. It is compatible with VT 3002-1-2X/64G card holder, features six analog inputs, three analog outputs, and operates within a -20°C to +70°C storage temperature range.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: VT-HACD-1-11A-V0-1-0-0
  • Function: Digital command value and controller card
  • Signal Linking: Both output and input side
  • Optional Controller: State feedback and control loops with a PIDT1 microcontroller
  • Bus Interface: Not available
  • Valve Output Stage: Not available
  • Size: 100 x 160mm
  • Operating Voltage: 24VDC
  • Fuse Rating: 4A time-lag
  • Standby Current Consumption: 250mA
  • Analog Inputs: 6
  • Analog Outputs: 3
  • Programming: Via PC BODAC program. Does not use jumpers
  • Compatibility: Compatible with the VT 3002-1-2X/64G open card holder
  • Front Plate Height: 5.06 inches
  • Weight: 0.2 kg
  • Storage Temperature: -20°C to +70°C
  • Connection Cable: Low capacitance cables required
  • Earth Connection: Highly flexible copper connectors
  • Oscillator Frequency: 5.7kHz for valve position sensor
  • Analog Inputs Monitoring: Support available to check for deviation from the min and max limits.
