VT-HNC100-1-11/134/5

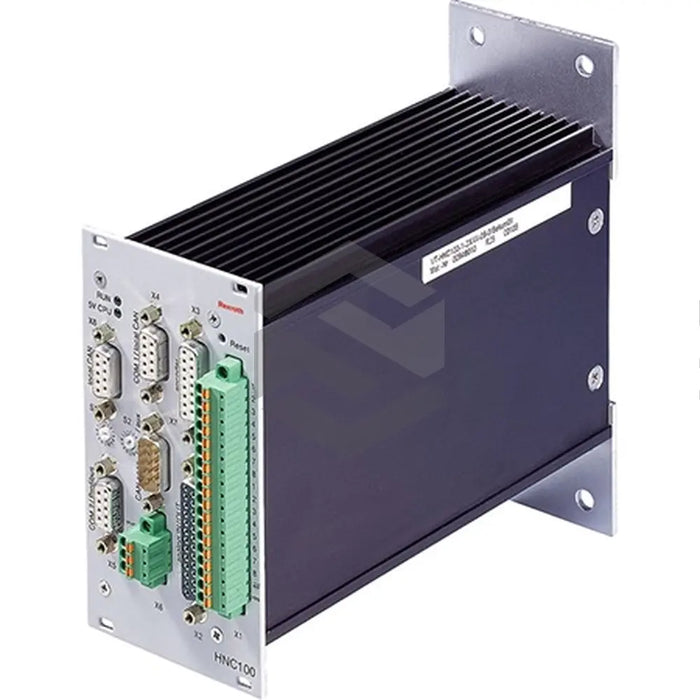

The VT-HNC100-1-11/134/5 is a high-performance axis controller from Bosch Rexroth Indramat within the VT-HNC Digital Axis Controllers series, designed for precise motion control in demanding industrial environments. It operates on a robust Operating Voltage range of 18–36 VDC and offers a flexible Serial Interface via RS232 at 9.6 kBaud. For advanced networked applications, it supports Optional Bus Interfaces including Profibus DP (up to 12 MBaud), CANopen, and INTERBUS-S. The controller’s compact footprint, measuring Dimensions (W×H×D) of 71×155×204 mm, ensures easy integration into existing machine frames and control cabinets. Its construction reflects Bosch Rexroth Indramat’s commitment to reliability and long-term performance.

Equipped for versatile signal processing, this controller provides Normalized Output Current of 4–20 mA and can handle a Max Non-normalized Output Current of ±23 mA for transient demands. The Load Resistance (Current Outputs) rating of 500 Ω aligns with standard industry requirements and ensures stable load driving. Its Analog Output Resolution of 1.25 mV and Analog Output Non-linearity within 15 mV (±9.5 V) rising to 35 mV between ±9.5–10 V guarantee accurate control feedback. On the input side, it delivers Analog Input Resolution of 5 mV across a Analog Input Voltage Range of ±10 V (measurable up to ±15 V), allowing high-fidelity sensor integration. These electrical specifications are optimized for high-precision motion algorithms and closed-loop control.

In operational terms, the controller’s Incremental Transducer Input Levels of 0–1 V (low) and 2.8–5.5 V (high) support encoder feedback at speeds up to a Maximum Transducer Frequency of 250 kHz, ensuring rapid response in dynamic processes. Users can configure Switching Inputs and Switching Outputs in 8, 16, or 24 channel versions, with low-level activation below 2 V and high outputs up to supply voltage at a maximum current of Imax 50 mA. It functions reliably across an Operating Temperature Range of 0 to 50 °C and withstands storage conditions between -20 to +70 °C without degradation. This combination of robust input/output options and environmental resilience supports continuous operation in diverse industrial settings.

Integration into existing automation systems is streamlined through its standardized interfaces and compact 71×155×204 mm form factor. The controller’s compatibility with major industrial networks makes it ideal for packaging machines, robotic arms, CNC systems, and conveyor controls requiring precise synchronization. Maintenance and upgrades are simplified by its modular design and clear diagnostics via RS232 or fieldbus status messages. Engineers will find the VT-HNC100-1-11/134/5 an exceptional choice for enhancing control performance in advanced manufacturing applications.
