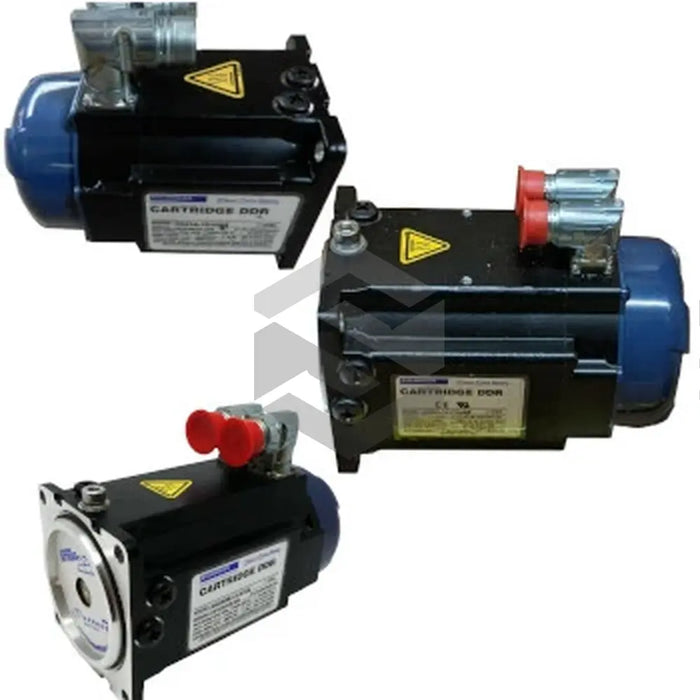

S image of CH061A-13-3105

CH061A-13-3105

by Kollmorgen
$5,358.29 - $5,358.29
$5,358.29
$5,358.29 - $5,358.29
$5,358.29

In Stock, Ships 1 - 3 Days

The CH061A-13-3105 motor from Kollmorgen’s Cartridge DDR Motors series features direct drive technology eliminating the need for gears or belts. It delivers a nominal torque of 33.4Nm, a peak torque of 85.7Nm at 26.7A, operates at 480Vac and weighs 18.6 kilograms. Precision feedback is ensured by its EnDat absolute one-turn encoder and it has an inertia moment of 69.4kg·cm². The motor flange measures 188x188 mm and it is approved to CE, UKCA and UL standards.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Approvals

CE, UKCA, UL

Encoder

EnDat absolute one-turn

Inertia Moment

69.4kgcm²

Motor Flange

188x188mm

Nominal Torque

33.4Nm

Peak Value Torque

85.7Nm at 26.7A

Pole Pairs

5 / 10 Poles

Specifications At 230vac

31.3Nm at 900rpm

Specifications At 400vac

29.1Nm at 1600rpm

Specifications At 480vac

27.9Nm at 1900rpm

Stopped Torque

33.4Nm at 9.89A

Temperature Sensor

PTC, KTY or equivalent available on request

Voltage

480Vac

Weight

18.600 kg
