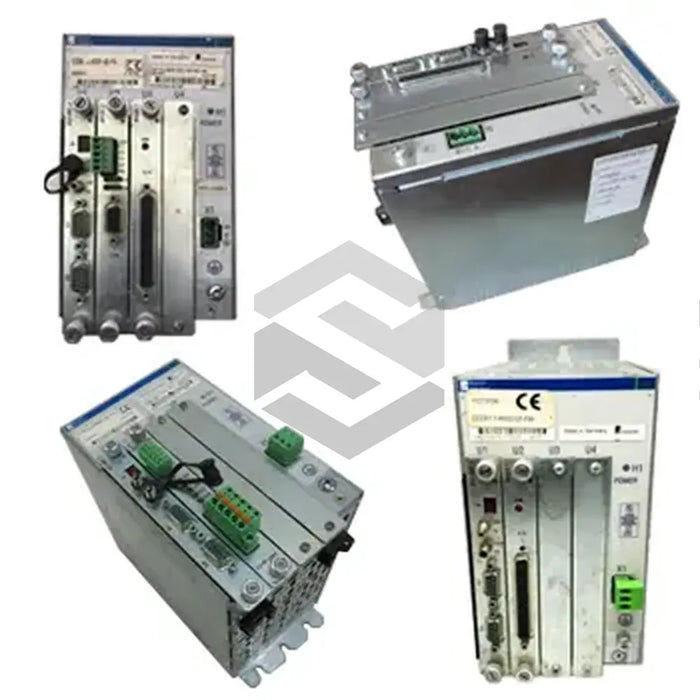

S image of CCD01.1-KE09-02-FW

CCD01.1-KE09-02-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat CCD01.1-KE09-02-FW is a versatile box terminal designed to house option cards. This compact device, featuring a robust design, utilizes a SERCOS III interface adhering to IEE 802.3 standards, alongside a cold technology cooling mechanism that allows placement within a small closed housing or control cabinet. Its components include two RJ 45 style connectors that use eight pins, although just four pins per connector are functional. These connectors offer two differential input and two differential output connections each, to transmit and receive 10/100 Base-T signals. The terminal also houses four slots for option cards insertion, enabling simultaneous execution of four tasks. Data transmission and network status are monitored through yellow and green LEDs respectively. Also, a power status LED is incorporated. Connection with the SERCOS III interface is established using a CAT 5 standard cable.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model Number

CCD01.1-KE09-02-FW

Product Type

Box Terminal

Purpose

Housing Option Cards

Design Code

1

Version Code

1

Cooling Method

Cold Technology Cooling

Interface Type

SERCOS III (IEEE 802.3 Standard)

Key Components

Two RJ 45 Connectors, Four LEDS (2 Yellow, 2 Green), Four Option Card Slots

Pin Functionality

Four Pins per Connector

Connection Types

Two Differential Input Connections, Two Differential Output Connections per Connector

Cabling Requirement

CAT 5 Standard

Shipping Method

Global Availability through UPS or DHL

Signal Transmission

10/100 Base-T Signals

LED Indicators

H10, H12 (Yellow for Data Transmission), H13, H11 (Green for Network Status)
