R911274549
Original price
$6,957.74
-
Original price
$6,957.74
Original price
$6,957.74
$6,957.74
-
$6,957.74
Current price
$6,957.74

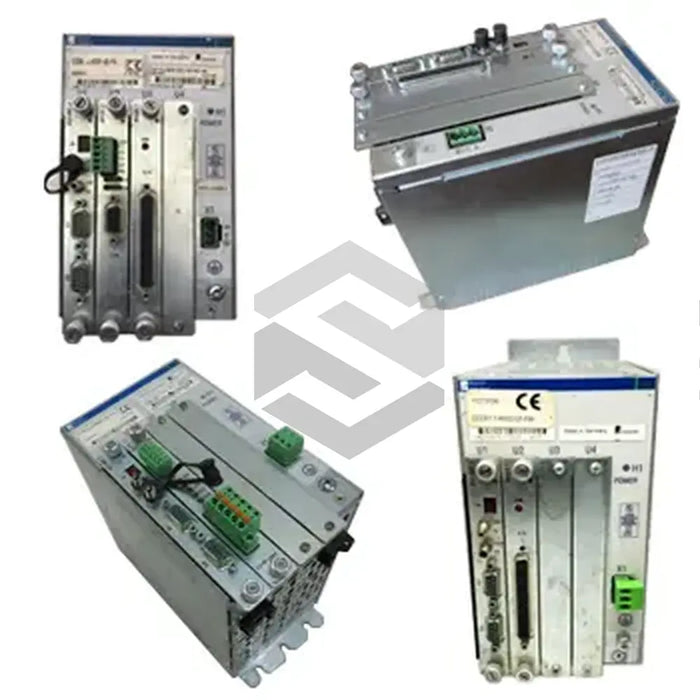

The R911274549 (CCD01.1-KE12-01-FW) is a motion controller produced by Bosch Rexroth Indramat, renowned for its innovative solutions for motion-based issues in industrial settings. This compact controller, paired with MKD, MDD, and other motors, excels in various applications such as packaging machines, robotics, textile, and handling equipment. It comprises two key elements: configurable drive controllers and plugin modules tailored for U1 to U5 slots.
These plugin modules can serve multiple functions as an Interbus S Slave interface, SECOS interface, command card, ARCNET coupler card, or I/O interface. The command card, denoted as CLC-D02.3M-FW, supports both independent and coordinated multi-axis motion control. The I/O interface, tagged as DEA28.1M, is equipped with 32Input and 24Output ratings. The accessory, DEA29.1M, can be found in the U3 slot. Cold technology is used to robustly cool the internal components through external air. Housed in a compact casing, the controller has an IP20 protection category that guards against physical intrusion by objects larger than 50mm. However, it is not designed for water-resistance and unrestricted contact. It operates optimally at an elevation up to 1000 meters, relative air humidity up to 95%, and temperatures ranging between 0 to 45 degrees.
30 Day Warranty
Technical Specifications
