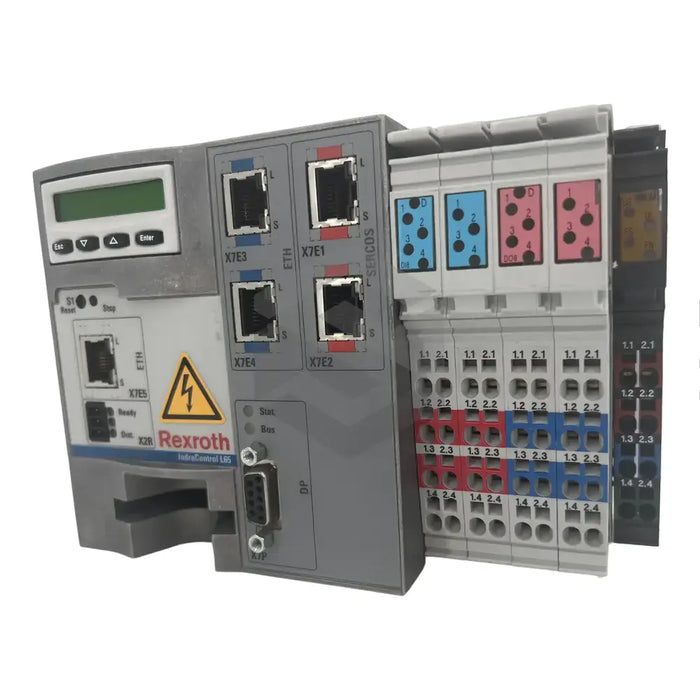

product Main (Front Left) image of R911170899

R911170899

by Bosch Rexroth Indramat
$12,606.73 - $12,606.73
$12,606.73
$12,606.73 - $12,606.73
$12,606.73
In Stock, Ships 3 - 5 Days
The R911170899 (CML65.1-3P-504-NA-NNNN-NW) industrial controller, a product of Bosch Rexroth Indramat, is part of the IndraControl L65 series. The controller, with an IP20-rated inline design enclosure, weighs 1.8 kilograms and its dimensions are 107.4 x 175.9 x 120 millimeters. Made for usage within an ambient temperature range of 5 to 55 degrees Celsius, it also features a warning system that triggers at 70 degrees and an automatic shutoff at 80 degrees to prevent overheating. A powered cooling fan can be included upon request. Boasting an Intel Celeron M processor (1.0 GHz), the R911170899 (CML65.1-3P-504-NA-NNNN-NW) arrives without firmware. It features 256 MB of DRAM and 8 MB of battery backed SRAM, while also allowing additional NVRAM through compatible Compact Flash cards via a front slot. The controller provides a standard Ethernet interface, along with a SERCOS III and a ProfiBus interface. It is equipped with 8 digital outputs and 8 digital inputs and operates effectively at 19.2 to 32 Volts DC. Satisfactory performance is ensured up to an altitude of 2700 meters and it can withstand up to 0.075 millimeters displacement at 10 to 150 Hertz.
30 Day Warranty
Technical Specifications
  • Product Series: IndraControl L65
  • Weight: 1.8 kilograms
  • Dimensions: 107.4 x 175.9 x 120 millimeters
  • Input Voltage Range: 19.2 to 32 Volts DC
  • Auto Shut-off Temperature: 80 degrees Celsius
