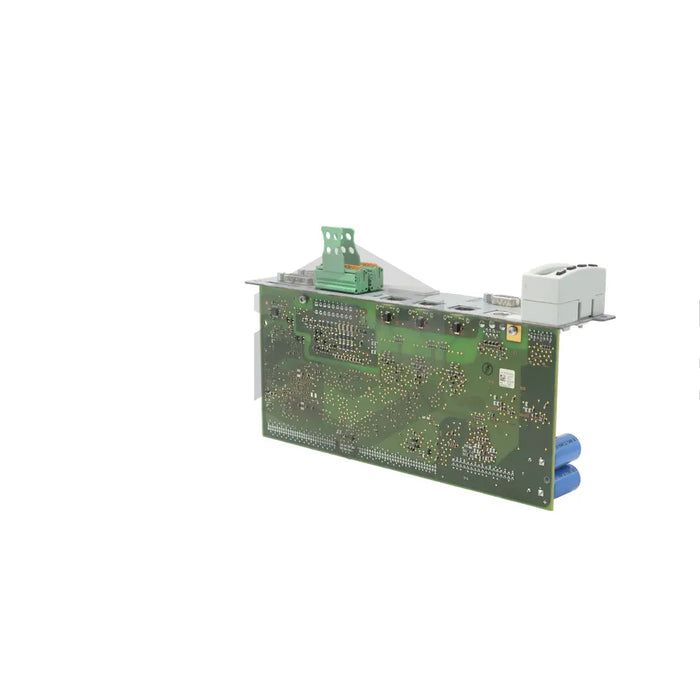

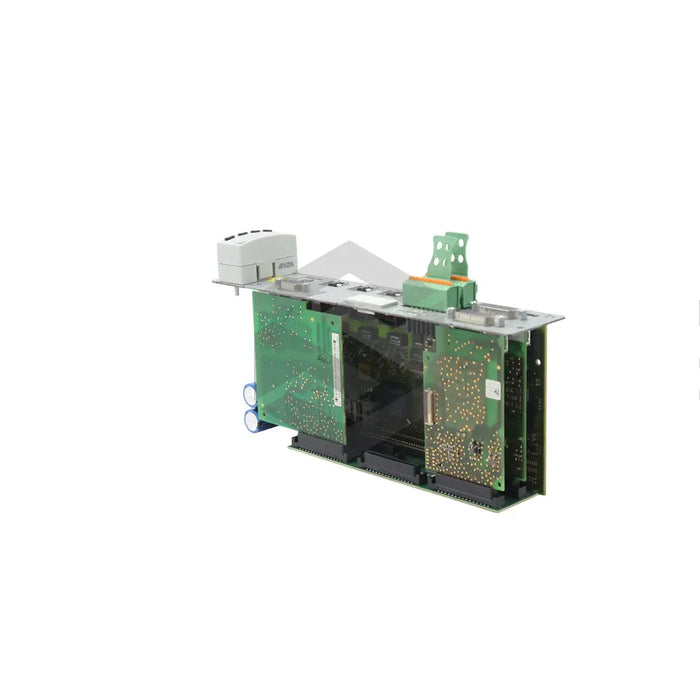

series image of CSH01.3C-PB-ENS-MA1-CCD-NN-S-NN-FW

CSH01.3C-PB-ENS-MA1-CCD-NN-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CSH01.3C-PB-ENS-MA1-CCD-NN-S-NN-FW is a Bosch Rexroth Indramat digital control unit. It caters to single-axis operations and forms part of Bosch's advanced control unit product category under the CSH range. Infused with an easy-to-navigate control panel featuring a one-line display and four-button keypad, this device allows engineers or technicians to enact command-driven diagnostics and manage various operations such as modifying the drive address, SERCOS transmission power, basic load default procedures, and analog outputs. Optional modules, including the cross communication module, the IndraDyn encoder module, and an analog I/O extension module, can be installed. The device supports Profibus master communication, providing flexibility for different network topologies and allowing the integration of various devices from multiple manufacturers.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: CSH01.3C-PB-ENS-MA1-CCD-NN-S-NN-FW
  • Product Type: Digital Control Unit
  • Advanced Control Unit Category: Bosch CSH product line
  • Designed for: Single Axis Applications
  • Key Function: Control and movement of a single axis of motion
  • Device Configurablitiy: Yes
  • Control Panel Type: Standard Control Panel with Single-Line Display and Four-Button Keypad
  • Optional Modules: Cross Communication Module, Encoder IndraDyn Module, Analog I/O extension module
  • Communication Support: Profibus master communication
  • Physical Layer Options for Profibus: RS-485 (2-wire or 4-wire) or RS-232 for Profibus-DP, Profibus-PA uses a 2-wire, intrinsically safe RS-485-based physical layer
  • Transmission Media for Profibus: Copper Wires, Fiber Optic Cables, Wireless Technology
  • Diagnostic Capability: Built-in for Profibus
  • Data Transmission Speed: 9.6 kbit/s to 12 Mbit/s (For Profibus-DP)
  • Network Topology Flexibility: Point-to-Point, Multidrop, and Bus Systems
