R911328005
Original price
$2,682.44
-
Original price
$2,682.44
Original price
$2,682.44
$2,682.44
-
$2,682.44
Current price
$2,682.44

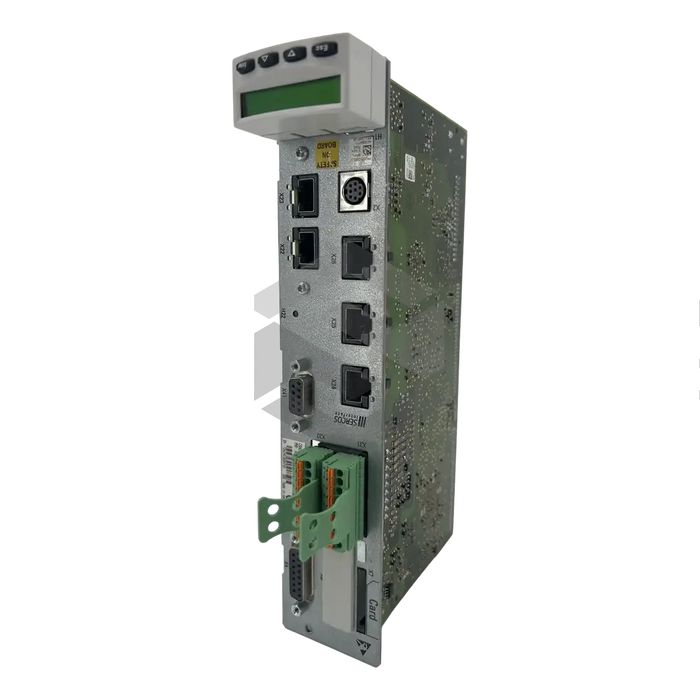

The Bosch Rexroth Indramat's R911328005 (CSH01.3C-ET-ENS-NNN-CCD-S2-S-NN-FW) is an advanced high-performance control unit designed to manage and monitor electric motor operations in machinery such as machine tools and mounting equipment. This unit belongs to the Design-3 line within the CSH control sections, distinguished by its secure, vibration-resistant spring and screw terminal connections, making it suitable for industrial environments. However, appropriate interference suppression measures should be implemented if the unit is operated in residential areas. This unit allows for adaptable switching frequencies of 2kHz, 4kHz, 8kHz, 12kHz, and 16kHz, and accommodates firmware installation, which requires a separate order.
The R911328005 (CSH01.3C-ET-ENS-NNN-CCD-S2-S-NN-FW) unit incorporates a key safety feature known as Safe Motion. This function enhances safety by monitoring aspects such as door locking, tracking speed, monitoring position, and overseeing the safe homing procedure. Compatibility with a range of encoders, like the sin-cos encoders (1 Vpp) with EnDat 2.1 or Hiperface, the 5V-TTL square-wave encoder with a reference track, and MSK encoder is enabled via its standard encoder evaluation interface functioning on a 12V supply voltage. This unit also features a control panel for setting the drive address, accessing error memory, and defining position data references.
30 Day Warranty
Technical Specifications
