195H3109

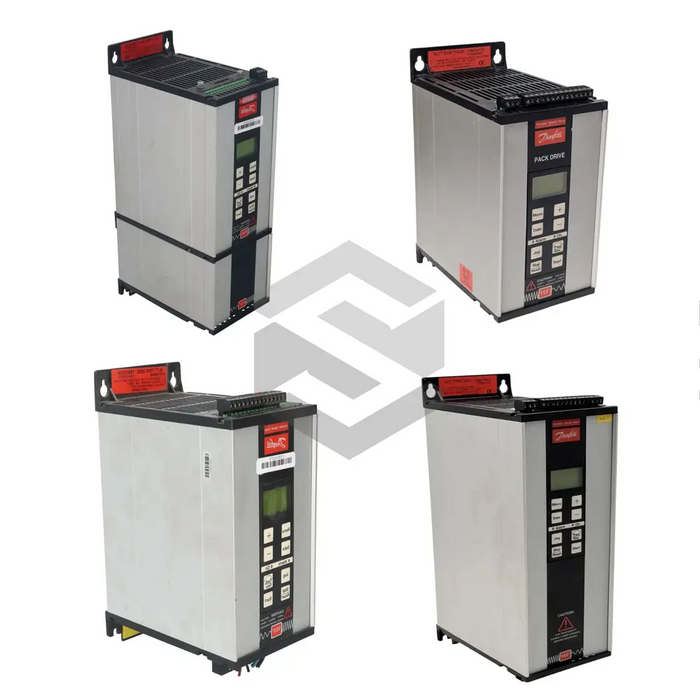

The Danfoss 195H3109 AC drive from the VLT 2000 Frequency Converters series provides a robust solution for industrial motor control with integrated operator feedback. This drive delivers a Power Rating: 3 HP and maintains a Constant Output Current: 7.5 A for precise speed regulation in demanding applications. Featuring a Built-in Display, it simplifies configuration and status monitoring without external tools. The programmable Output Frequency Range: 0-120 Hz or 0-500 Hz supports both standard and high-speed motor operations. With an enclosure protection of Enclosure Rating: IP20, this unit is designed for safe installation in enclosed control cabinets.

Detailed electrical specifications include an Input Voltage: 208-240 V AC, 3-phase supply interface matched to modern industrial power networks. The drive delivers Constant Output Power: 3.1 kVA at steady state and a Typical Shaft Output: 2.2 kW (3 HP) rating optimized for small to medium motors. Adjustable Output Voltage: 0-100% of Mains Voltage accommodates diverse motor voltage requirements. It supports Rated Motor Frequency: 50/60/87/100 Hz to meet international standards and process demands. The Drive Type: AC Drive, With Display architecture integrates seamlessly with factory automation systems.

Operational resilience is assured by Thermal Protection: Built-in Electronic circuitry that safeguards both drive and motor against overheating. Ambient conditions from Ambient Operating Temperature Range: 0°C to 40°C (start-down at 10°C) are tolerated without performance degradation. The standard Max Motor Cable Length: 40 m (300 m with optional inductors) allows flexible panel placement and reduced electromagnetic interference. A robust IP20 enclosure mandates cabinet mounting, ensuring safety and compliance in industrial environments.

System integration is simplified through a user-friendly display interface and standardized control terminals, enabling straightforward connection to PLCs and HMIs. The compact form factor and modular design of the 195H3109 facilitate retrofit and new installations across material handling, pumps, fans, and conveyor applications. Tunable frequency and voltage profiles suit both conventional and specialized tasks in industrial automation. With its blend of configurability, protection features, and compatibility, the Danfoss 195H3109 drive is an ideal solution for precise motor management in stable control architectures.
