195N0041
by Danfoss
Original price
$2,524.14
-
Original price
$2,524.14
Original price
$2,524.14
$2,524.14
-
$2,524.14
Current price
$2,524.14

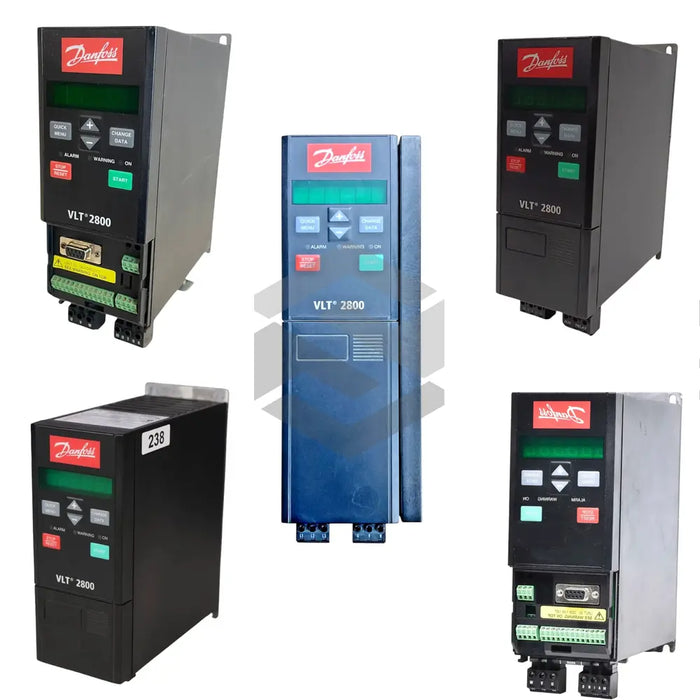

The 195N0041 is a low-voltage AC drive produced by Danfoss and belongs to the VLT 2800 Low Voltage Drives series. Within an automation cell it governs induction-motor speed, allowing precise process control without mechanical throttling or gear changes. By integrating this unit, a panel builder can regulate conveyor or pump speed from a compact footprint while remaining within the manufacturer’s VLT product group.
This model operates from an input of 200-240 V AC, a range that covers common single-phase and three-phase utility supplies found in light industrial plants. Its continuous mechanical output is rated at 1.1 kW, which corresponds to 1.5 HP when driving a standard four-pole motor. The drive is housed in a Bookstyle enclosure, keeping cabinet width to a minimum so multiple units can be arrayed side by side. An ingress rating of IP20 indicates finger protection but requires installation inside a closed panel for dust and splash safety. The internal circuit follows the standard hardware configuration supplied for the VLT 2800 line, and the unit is delivered without an optional application card, leaving the control terminals free for basic start-stop and speed reference wiring.
A front-mounted interface gives immediate feedback through the Built In Display (SLCP), simplifying parameter access on the factory floor. To meet cost or regional EMC requirements the drive is shipped without a filter (No EMC), so any radio-frequency compliance must be handled with external components. The power section is assembled without coating, a choice that suits clean electrical rooms while avoiding the thermal penalty of conformal layers. Danfoss classifies the firmware as suitable for a Process environment, meaning the default menu structure addresses flow, pressure, and temperature loops. The VLT 2800 designation, together with its standard hardware, ensures parameter consistency across the family even though no special application option is installed.
